Radium Complete Refueling Kit with Dump Can 1.5" Dry Break — Remote Mount FCST-X

Radium Complete Refueling Kit with Dump Can 1.5" Dry Break — Remote Mount FCST-X

Application: Radium FCST-X fuel cell surge tanks
Part Type: Complete refuelling kit – remote mount 1.5in dry break filler with dry break dump can
Part Number: 20-1841-03

Radium FCST-X fuel cell surge tanks are supplied without any refuelling components, so Radium's FCST-X refuelling kits bundle a filler solution with a vent kit. The 20-1841-03 is the complete dry break option: a remote-mounted 1.5in dry break filler for body-panel mounting, paired with a 5 gallon dry break dump can for fast, clean refuelling.

The kit includes the remote filler, remote fill neck and fill hose, a vent kit with 12AN vent line, and a Dynamic Safety Valve. All FCST-X units include an 8AN DSV vent valve, which the vent kit connects to.

Key Features

• Complete Kit: Filler, fill neck, fill hose, vent kit and dump can in one package
• 1.5in Dry Break: Dry break probe on the dump can for quick refuelling
• Remote Mount: Filler mounts to a body panel, away from the surge tank
• 12AN Vent Line: High-flow vent kit to suit dry break refuelling

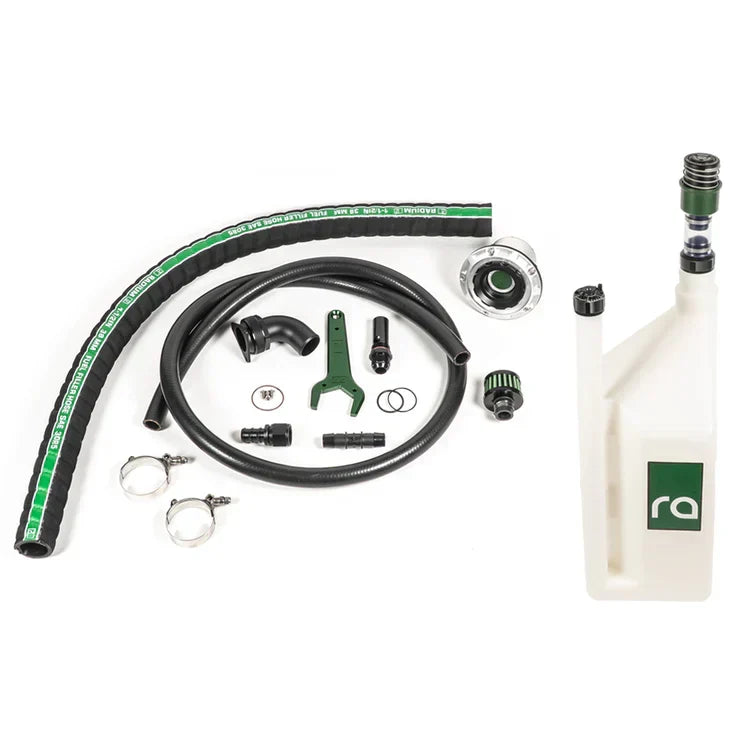

What's Included

• Dry break remote filler
• Remote fill neck
• Remote fill hose
• Vent kit
• Dynamic Safety Valve
• Dry break dump can (5 gallon)

Important Notes

• Suits Radium FCST-X surge tanks only – not compatible with older Radium surge tanks that use 6-bolt filler necks
• Other FCST-X refuelling kits: 20-0841-20 (direct mount standard filler), 20-0841-22 (remote mount standard filler), 20-0841-00 (direct mount standard filler with dump can), 20-0841-02 (remote mount standard filler with dump can)

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks (20-1990, 20-1991, 20-1992, 20-1993 and 20-1995 series)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
