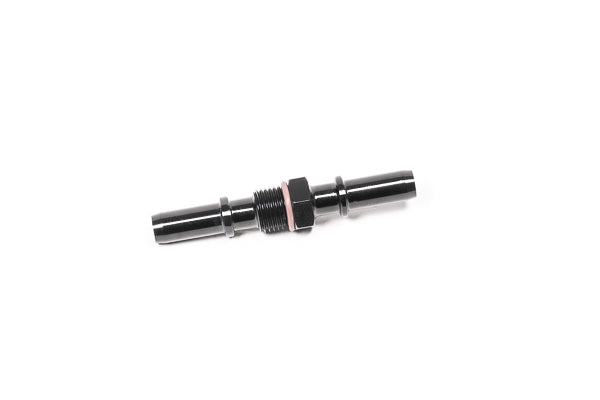

Radium 6AN ORB Bulkhead, 10mm SAE Male to Male

Radium 6AN ORB Bulkhead, 10mm SAE Male to Male

Application: Universal – 6AN ORB (9/16"-18) O-ring ports
Part Type: 6AN ORB bulkhead fitting, 10mm SAE quick connect male to male
Part Number: 14-0648

The Radium 14-0648 is a 6AN ORB bulkhead fitting with SAE quick connect male connections. Radium lists it under its 6AN ORB to SAE quick connect connections and with its 6AN ORB bulkhead fittings, which are used in various Radium fuel hangers or any ORB-threaded surface.

Radium's anodised billet aluminium adapter fittings can be used in any application with a 9/16"-18 O-ring port, the same thread pitch used on 6AN ORB (O-ring boss) fittings. They use FKM O-rings that are compatible with all oil and fuel types. SAE quick connect fittings push on and secure to most modern USA, European and Japanese fuel injection systems, so OEM quick connect fuel lines can be adapted to aftermarket plumbing.

Key Features

• 6AN ORB Thread: 9/16"-18 O-ring boss thread
• SAE Quick Connect: Male SAE quick connect connection for OEM-style quick connect fuel lines
• Bulkhead Design: For use in Radium fuel hangers or any ORB-threaded surface
• Billet Aluminium: Anodised billet aluminium construction
• FKM O-Rings: Compatible with all oil and fuel types

Important Notes

• Lubricate the O-rings with engine oil, O-ring lube or petroleum jelly before installation
• To confirm the SAE quick connect size you need, measure the outside diameter of the male fitting: 0.3125in = 5/16in, 0.375in = 3/8in, 0.500in = 1/2in, 0.625in = 5/8in

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
