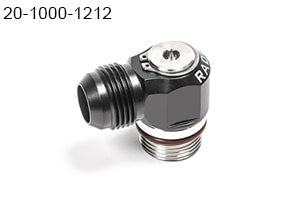

Radium 20-1000-1212 Low Profile Swivel Banjo Fitting, 12AN ORB to 12AN Male
Tax included. Shipping calculated at checkout
Description
Radium 20-1000-1212 Low Profile Swivel Banjo Fitting, 12AN ORB to 12AN Male
Application: Universal – 12AN ORB (1-1/16"-12) ports (fuel rails, surge tanks, regulators)
Part Type: Low profile 360° swiveling banjo fitting, 12AN ORB to 12AN male flare
Part Number: 20-1000-1212
The Radium 20-1000-1212 Low Profile Swiveling Fitting adapts a 12AN ORB port to a 12AN male flare. It rotates a full 360 degrees, even after it has been installed, which makes it an excellent option for 90-degree connections where hose routing and clearance are tight, and its very low profile keeps the installed height to just 32.7mm (1.286in).
Radium designs these swiveling fittings for fuel rails, fuel surge tanks and other universal applications using a 12AN ORB (1-1/16"-12) port. They are suitable for high pressure fuel and oil systems up to 400psi, and are safe for use with all fuel types, oil and engine coolant.
Key Features
- 360° Swivel: Rotates a full 360 degrees, even after installation
- Low Profile: Installed height of 32.7mm (1.286in), bottom installed surface to top
- 90-Degree Connection: 12AN ORB port to 12AN male flare
- High Pressure: Suitable for high pressure fuel and oil systems – do not exceed 400psi
- Compatibility: Safe for use with all fuel types, oil and engine coolant
- FKM O-Rings: FKM O-ring seals rated for all oil and fuel types
What's Included
- 1 x 20-1000-1212 Low Profile Swiveling Fitting
- Necessary O-rings or washers for installation
Important Notes
- Do not exceed 400psi
- When installing ORB fittings, lubricate the O-ring with O-ring lube, petroleum jelly or oil to prevent damage during assembly
- AN flare connections should be installed dry and clean – hand thread until fully engaged, then tighten 1/4 to 1/2 turn after bottoming out by hand
- The ORB threads do not seal, so PTFE paste or thread sealant is not required
- Hose, hose ends and other fittings are sold separately
Vehicle Fitment
- Universal – any 12AN ORB (1-1/16"-12) port, such as fuel rails, fuel surge tanks and fuel pressure regulators
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
