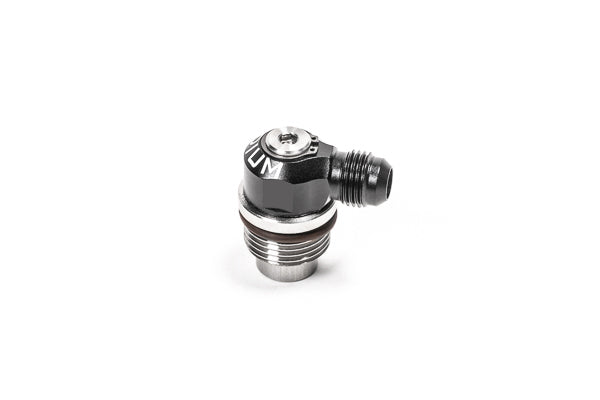

Radium Engineering 20-1000-1006-PCV Swivel Banjo PCV Valve, 10AN ORB to 6AN Male

Radium 20-1000-1006-PCV Swivel Banjo PCV Valve, 10AN ORB to 6AN Male

Application: Universal (Radium Competition Catch Cans, Radium PCV baffle plates, 10AN ORB ports with extra clearance)
Part Type: Swivel banjo PCV valve (10AN ORB to 6AN male)
Part Number: 20-1000-1006-PCV

The Radium Engineering 20-1000-1006-PCV combines a Radium PCV (positive crankcase ventilation) valve with a low profile 90-degree swivel banjo, going from a 10AN ORB inlet to a 6AN male outlet. Use it when the OEM PCV valve is removed, needs to be relocated to the catch can outlet, or on engines that do not have a PCV valve at all.

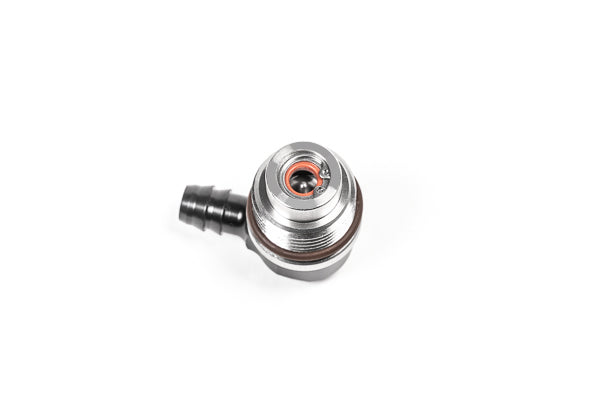

Like an OEM PCV valve, the internal plunger dynamically meters crankcase vent airflow based on engine load. A proper PCV valve avoids the vacuum leak a simple check valve would create at low engine loads, closes during an intake backfire so combustible vapours cannot ignite inside the crankcase, and closes under boost on turbocharged and supercharged engines to stop intake pressure entering the crankcase.

Key Features

• Dynamic metering: internal plunger meters crankcase vent airflow to suit engine load
• Backfire and boost protection: closes during an intake backfire and under boost
• Low profile swivel: 90-degree swivel banjo outlet
• Construction: stainless steel 10AN ORB section, anodised aluminium outlet section, FKM and silicone O-rings
• Ready to fit: supplied fully assembled with a 10AN ORB FKM O-ring installed

What's Included

• 1 x Radium 20-1000-1006-PCV swivel banjo PCV valve, fully assembled with a 10AN ORB FKM O-ring installed

Important Notes

• Requires an extra 6.7mm (0.26in) of clearance after the threads for the O-ring to seat.
• Fits Radium Competition Catch Cans and Radium PCV baffle plates. Does NOT fit Radium standard or Fluid Lock catch cans due to port depth.
• Fits other 10AN ORB ports only if they have the extra clearance required.

Vehicle Fitment

• Universal – see Application

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
