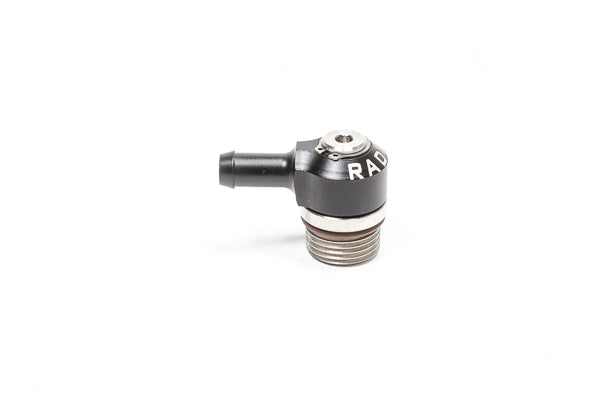

Radium 20-1000-0885 Low Profile Swivel Banjo Fitting, 8AN ORB to 8.5mm Barb

Radium 20-1000-0885 Low Profile Swivel Banjo Fitting, 8AN ORB to 8.5mm Barb

Application: Universal
Part Type: Low profile swivel banjo fitting (8AN ORB to 8.5mm barb)
Part Number: 20-1000-0885

The Radium Engineering 20-1000-0885 is a low profile swivel banjo fitting with an 8AN ORB (O-ring boss) base and an 8.5mm barb hose connection. The banjo rotates a full 360 degrees, even after installation, which makes it an excellent option for 90-degree connections where space is tight, such as on fuel rails and fuel surge tanks.

It is suitable for use in high pressure fuel and oil systems up to 400psi, and is safe for use with all fuel types, oil and engine coolant.

Key Features

• 360° swivel: rotates a full 360 degrees, even after installation
• Low profile: 20.2mm (0.797in) installed height, bottom installed surface to top
• 90-degree connection: ideal where a straight fitting will not clear
• Pressure rating: suitable for high pressure fuel and oil systems – do not exceed 400psi
• Media: safe for all fuel types, oil and engine coolant

What's Included

• 1 x Radium 20-1000-0885 low profile swivel banjo fitting

Important Notes

• Do not exceed 400psi.
• Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before installation to prevent damage.

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
