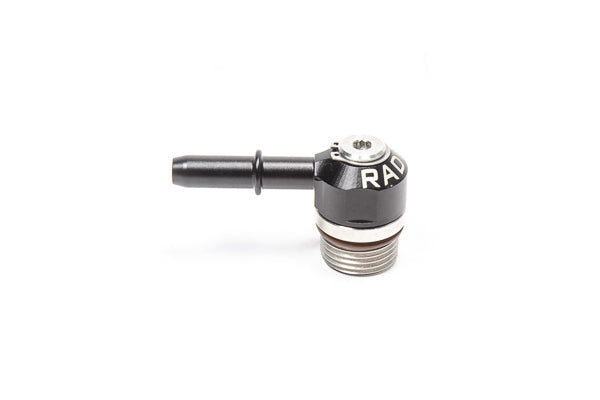

Radium Engineering 20-1000-08313 Low Profile Swivel Banjo Fitting, 8AN ORB to 5/16" SAE Quick Connect Male

Radium 20-1000-08313 Low Profile Swivel Banjo Fitting, 8AN ORB to 5/16" SAE Quick Connect Male

Application: Universal – 8AN ORB (3/4"-16) ports (fuel rails, surge tanks, regulators)
Part Type: Low profile 360° swiveling banjo fitting, 8AN ORB to 5/16" SAE quick connect male
Part Number: 20-1000-08313

The Radium 20-1000-08313 Low Profile Swiveling Fitting adapts an 8AN ORB port to a 5/16" SAE quick connect male. It rotates a full 360 degrees, even after it has been installed, which makes it an excellent option for 90-degree connections where hose routing and clearance are tight, and its very low profile keeps the installed height to just 20.2mm (0.797in).

Radium designs these swiveling fittings for fuel rails, fuel surge tanks and other universal applications using an 8AN ORB (3/4"-16) port. They are suitable for high pressure fuel and oil systems up to 400psi, and are safe for use with all fuel types, oil and engine coolant.

Key Features

• 360° Swivel: Rotates a full 360 degrees, even after installation
• Low Profile: Installed height of 20.2mm (0.797in), bottom installed surface to top
• 90-Degree Connection: 8AN ORB port to 5/16" SAE quick connect male
• High Pressure: Suitable for high pressure fuel and oil systems – do not exceed 400psi
• Compatibility: Safe for use with all fuel types, oil and engine coolant

What's Included

• 1 x 20-1000-08313 Low Profile Swiveling Fitting (sold individually)

Important Notes

• Do not exceed 400psi
• When installing ORB fittings, lubricate the O-ring with O-ring lube, petroleum jelly or oil to prevent damage during assembly
• Lubricate the mating SAE quick connect O-rings with a light amount of oil before installing
• SAE quick connect size is determined by the outside diameter of the male fitting – measure the existing male fitting to confirm the size required
• Hose, hose ends and other fittings are sold separately

Vehicle Fitment

• Universal – any 8AN ORB (3/4"-16) port, such as fuel rails, fuel surge tanks and fuel pressure regulators

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
