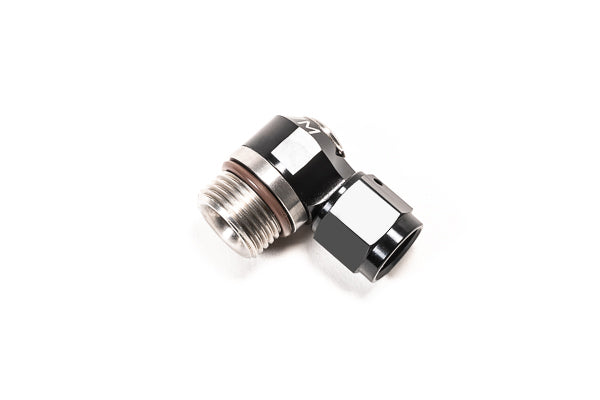

Radium Engineering 20-1000-0806F Low Profile Swivel Banjo Fitting, 8AN ORB to 6AN Female

Radium 20-1000-0806F Low Profile Swivel Banjo Fitting, 8AN ORB to 6AN Female

Application: Universal – 8AN ORB (3/4"-16) ports (fuel rails, surge tanks, regulators)
Part Type: Low profile 360° swiveling banjo fitting, 8AN ORB to 6AN female
Part Number: 20-1000-0806F

The Radium 20-1000-0806F Low Profile Swiveling Fitting adapts an 8AN ORB port to a 6AN female fitting. It rotates a full 360 degrees, even after it has been installed, which makes it an excellent option for 90-degree connections where hose routing and clearance are tight, and its very low profile keeps the installed height to just 20.2mm (0.797in).

Radium designs these swiveling fittings for fuel rails, fuel surge tanks and other universal applications using an 8AN ORB (3/4"-16) port. They are suitable for high pressure fuel and oil systems up to 400psi, and are safe for use with all fuel types, oil and engine coolant.

Key Features

• 360° Swivel: Rotates a full 360 degrees, even after installation
• Low Profile: Installed height of 20.2mm (0.797in), bottom installed surface to top
• 90-Degree Connection: 8AN ORB port to 6AN female
• High Pressure: Suitable for high pressure fuel and oil systems – do not exceed 400psi
• Compatibility: Safe for use with all fuel types, oil and engine coolant

What's Included

• 1 x 20-1000-0806F Low Profile Swiveling Fitting (sold individually)

Important Notes

• Do not exceed 400psi
• When installing ORB fittings, lubricate the O-ring with O-ring lube, petroleum jelly or oil to prevent damage during assembly
• AN flare connections should be installed dry and clean – hand thread until fully engaged, then tighten 1/4 to 1/2 turn after bottoming out by hand
• Hose, hose ends and other fittings are sold separately

Vehicle Fitment

• Universal – any 8AN ORB (3/4"-16) port, such as fuel rails, fuel surge tanks and fuel pressure regulators

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
