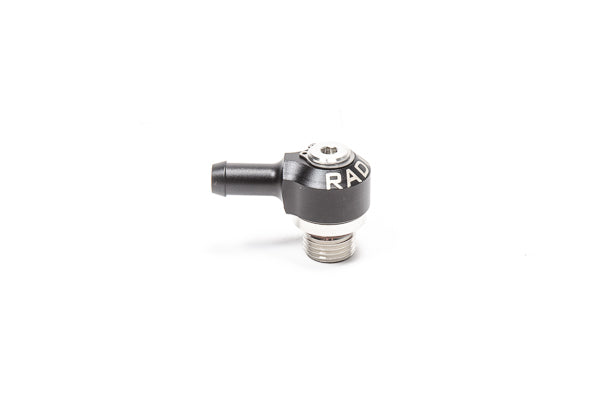

Radium 20-1000-0685 Low Profile Swivel Banjo Fitting, 6AN ORB to 8.5mm Barb
Tax included. Shipping calculated at checkout
Description
Radium 20-1000-0685 Low Profile Swivel Banjo Fitting, 6AN ORB to 8.5mm Barb
Application: Universal – 6AN ORB (9/16"-18) ports (fuel rails, surge tanks, regulators)
Part Type: Low profile 360° swiveling banjo fitting, 6AN ORB to 8.5mm hose barb
Part Number: 20-1000-0685
The Radium 20-1000-0685 Low Profile Swiveling Fitting adapts a 6AN ORB port to an 8.5mm hose barb. It rotates a full 360 degrees, even after it has been installed, which makes it an excellent option for 90-degree connections where hose routing and clearance are tight, and its very low profile keeps the installed height to just 20.2mm (0.797in).
Radium designs these swiveling fittings for fuel rails, fuel surge tanks and other universal applications using a 6AN ORB (9/16"-18) port. They are suitable for high pressure fuel and oil systems up to 400psi, and are safe for use with all fuel types, oil and engine coolant.
Key Features
- 360° Swivel: Rotates a full 360 degrees, even after installation
- Low Profile: Installed height of 20.2mm (0.797in), bottom installed surface to top
- 90-Degree Connection: 6AN ORB port to 8.5mm hose barb
- High Pressure: Suitable for high pressure fuel and oil systems – do not exceed 400psi
- Compatibility: Safe for use with all fuel types, oil and engine coolant
- FKM O-Rings: FKM O-ring seals rated for all oil and fuel types
What's Included
- 1 x 20-1000-0685 Low Profile Swiveling Fitting (sold individually)
Important Notes
- Do not exceed 400psi
- When installing ORB fittings, lubricate the O-ring with O-ring lube, petroleum jelly or oil to prevent damage during assembly
- Hose, hose ends and other fittings are sold separately
Vehicle Fitment
- Universal – any 6AN ORB (9/16"-18) port, such as fuel rails, fuel surge tanks and fuel pressure regulators
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
