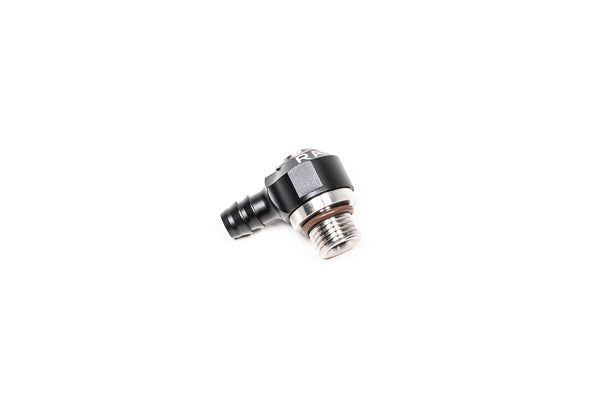

Radium Engineering 20-1000-0606-85 Swivel Banjo Bulkhead Fitting, 6AN ORB, 8.5mm Barb to 6AN Male

Radium 20-1000-0606-85 Swivel Banjo Bulkhead Fitting, 6AN ORB, 8.5mm Barb to 6AN Male

Application: Universal (Radium fuel hangers or any 6AN ORB threaded surface)
Part Type: Swivel banjo bulkhead fitting (6AN ORB, 8.5mm barb to 6AN male)
Part Number: 20-1000-0606-85

The Radium Engineering 20-1000-0606-85 is a 6AN ORB (O-ring boss) bulkhead fitting with a low profile swivel banjo. It connects an 8.5mm barb on one side to a 6AN male flare on the other, and the ORB threads suit the various Radium fuel hangers or any ORB threaded surface.

The swivel rotates a full 360 degrees, even after installation, making it an excellent option for 90-degree connections where space is tight. It is suitable for high pressure fuel and oil systems up to 400psi and is safe for use with all fuel types, oil and engine coolant.

Key Features

• Bulkhead design: anodised aluminium bulkhead with 8.5mm barb and 6AN male flare connections
• ORB threads: 6AN ORB for Radium fuel hangers or any ORB threaded surface
• 360° swivel: rotates a full 360 degrees, even after installation
• Low profile: 20.2mm (0.797in) installed height, bottom installed surface to top
• Pressure rating: suitable for high pressure fuel and oil systems – do not exceed 400psi
• Media: safe for all fuel types, oil and engine coolant

What's Included

• 1 x Radium 20-1000-0606-85 swivel banjo bulkhead fitting

Important Notes

• Do not exceed 400psi.
• Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before installation to prevent damage.
• AN flare connections should be installed dry and clean. Hand thread until fully engaged, then tighten 1/4 to 1/2 turn after it is fully bottomed out by hand.

Vehicle Fitment

• Universal – see Application
