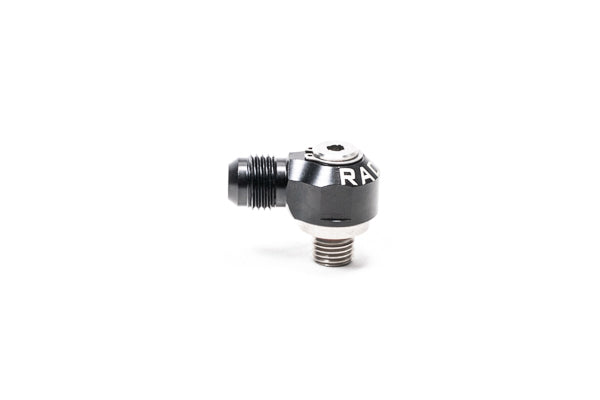

Radium 20-1000-0406 Low Profile Swivel Banjo Fitting, 4AN ORB to 6AN Male

Radium 20-1000-0406 Low Profile Swivel Banjo Fitting, 4AN ORB to 6AN Male

Application: Universal – 4AN ORB ports in fuel, oil and coolant systems
Part Type: Low profile 360° swivel banjo fitting
Part Number: 20-1000-0406

The Radium 20-1000-0406 Low Profile Swivel Banjo Fitting threads into a 4AN ORB port and provides a 6AN male connection at 90 degrees. It rotates a full 360 degrees, even after installation, making it an excellent low-profile option for 90-degree connections where clearance and hose routing are tight.

It is suitable for high pressure fuel and oil systems (do not exceed 400psi) and is safe for use with all fuel types, oil and engine coolant.

Key Features

• 360° Swivel: Rotates freely even after installation
• Low Profile: 20.2mm (0.797in) installed height (bottom installed surface to top)
• High Pressure: Suitable for high pressure fuel and oil systems – do not exceed 400psi
• Media: All fuel types, oil and engine coolant

Important Notes

• Maximum pressure 400psi
• ORB: lubricate the O-ring with O-ring lube, petroleum jelly or oil before installation
• AN flare: install dry and clean, hand thread until fully engaged, then tighten 1/4 to 1/2 turn past hand-tight

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
