Radium 20-0858 V2 Quick Connect, 15mm Male to 10AN Male Straight Fitting

Radium 20-0858 V2 Quick Connect, 15mm Male to 10AN Male Straight Fitting

Application: Audi, Porsche and VW with a 15mm V2 quick connect (see Vehicle Fitment)
Part Type: V2 quick connect 15mm male to 10AN male straight adaptor
Part Number: 20-0858

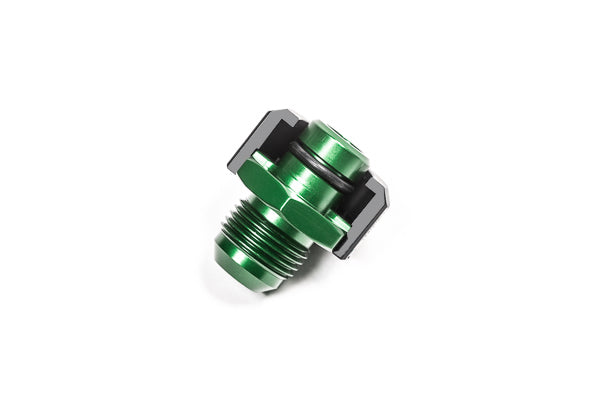

The Radium Engineering 20-0858 adapts a 15mm V2 quick connect male to a straight 10AN male fitting. Stainless steel bolts are provided to secure the black retainer.

V2 quick connect fittings are found on many OEM crankcase ventilation and turbo inlet connections. Radium V2 fittings are used with many of these connectors and are primarily used to plumb air/oil separator (catch can) systems.

Key Features

• V2 side: 15mm V2 quick connect male with black retainer
• AN side: 10AN male, straight
• Hardware: stainless steel bolts provided to secure the black retainer
• Construction: 6061 billet aluminium, type-II anodised for corrosion protection

What's Included

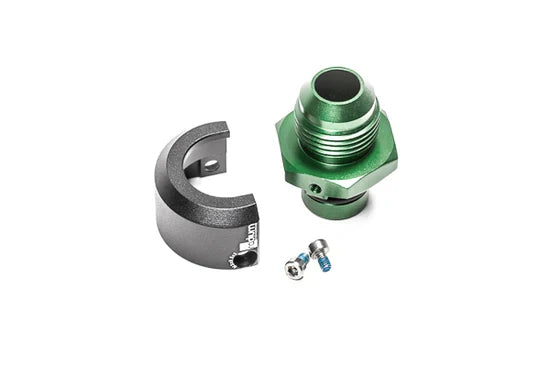

• 1 x Radium 20-0858 V2 quick connect fitting
• Stainless steel bolts to secure the black retainer

Important Notes

• Only the listed fitments are verified by Radium – the fitting may suit other applications not listed.
• V2 sizes refer to the ID of the hose connected to the fitting, not the fitting itself, so the fitting measures larger than its nominal size.
• Always lubricate the mating O-rings with a light amount of petroleum jelly, O-ring lube or motor oil before installation.

Vehicle Fitment

• Audi A4, A5, A6, Q3, Q5, Q7, S3 and S4 (EA888)
• Porsche Boxster (M96)
• Porsche Macan (EA888)
• VW Arteon, Atlas, Passat and Tiguan (EA888)
• VW Golf GTI MK8 and Golf R MK8 (EA888)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
