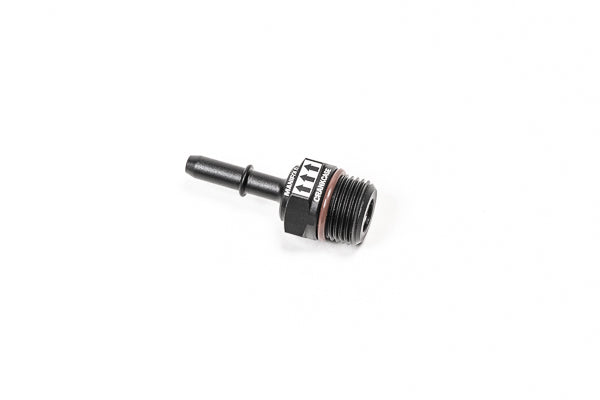

Radium 20-0683 PCV Valve, 10AN ORB to 5/16" SAE Quick Connect Male
Tax included. Shipping calculated at checkout
Description
Radium 20-0683 PCV Valve, 10AN ORB to 5/16" SAE Quick Connect Male
Application: Universal (10AN ORB female ports, Radium catch cans and PCV baffle plates)
Part Type: Straight PCV valve (10AN ORB to 5/16" SAE quick connect male)
Part Number: 20-0683
The Radium Engineering 20-0683 is a universal straight PCV (positive crankcase ventilation) valve with a 10AN ORB inlet and a 5/16" SAE quick connect male outlet. Use it when the OEM PCV valve is removed, needs to be relocated to the catch can outlet, or on engines that do not have a PCV valve at all.
Like an OEM PCV valve, the internal plunger dynamically meters crankcase vent airflow based on engine load. A proper PCV valve avoids the vacuum leak a simple check valve would create at low engine loads, closes during an intake backfire so combustible vapours cannot ignite inside the crankcase, and closes under boost on turbocharged and supercharged engines to stop intake pressure entering the crankcase.
Key Features
- Dynamic metering: internal plunger meters crankcase vent airflow to suit engine load
- Backfire and boost protection: closes during an intake backfire and under boost
- Construction: 6061 aluminium body, Type-II anodised, with FKM and silicone O-rings
- Ready to fit: supplied fully assembled with a 10AN ORB FKM O-ring installed
- Wide compatibility: fits all versions of Radium catch cans, Radium PCV baffle plates and any other 10AN ORB female port
What's Included
- 1 x Radium 20-0683 PCV valve, fully assembled with a 10AN ORB FKM O-ring installed
Vehicle Fitment
- Universal – see Application
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
