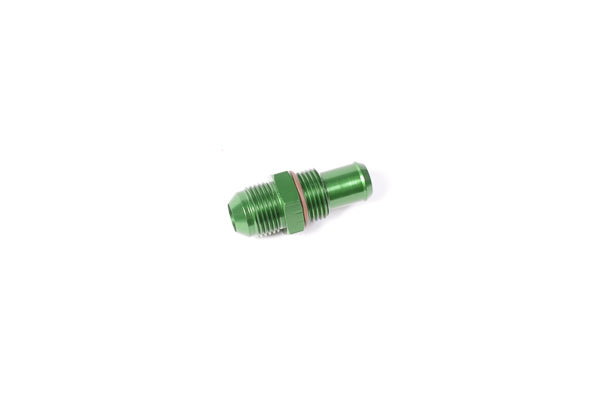

Radium 20-0196 Fuel Surge Tank Bulkhead Fitting, 10AN ORB, 10AN Male Flare to 5/8" Barb
Tax included. Shipping calculated at checkout
Description
Radium 20-0196 Fuel Surge Tank Bulkhead Fitting, 10AN ORB, 10AN Male Flare to 5/8" Barb
Application: Universal – Radium fuel hangers or any 10AN ORB threaded surface
Part Type: 10AN ORB bulkhead fitting, 10AN male AN flare to 5/8" barb
Part Number: 20-0196
The Radium 20-0196 is a 10AN ORB bulkhead fitting with a 10AN male AN flare on one side, and a 10AN male ORB thread and 5/8" hose barb on the other, for use in Radium fuel hangers or any 10AN ORB threaded surface.
These anodised aluminium bulkhead fittings have a barbed hose connection on the underside and a male AN flare connection on the top side. The threads are AN ORB (O-ring boss) for use in various Radium fuel hangers, or any ORB threaded surface.
Key Features
- Top Side: 10AN male AN flare
- Underside: 10AN male ORB (7/8"-14) and 5/8" hose barb
- Material: Anodised aluminium, green
- Sealing: FKM O-ring – no thread sealant required
What's Included
- 1 x 20-0196 bulkhead fitting with FKM O-ring
Optional Parts
- Radium 18-0043-10 10AN ORB FKM O-Ring, 5 Pack (18-0043-10) – replacement FKM O-rings for 10AN ORB fittings
Important Notes
- Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation
- The ORB threads do not seal – PTFE paste or thread sealant is not required
Vehicle Fitment
- Universal – see Application
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
