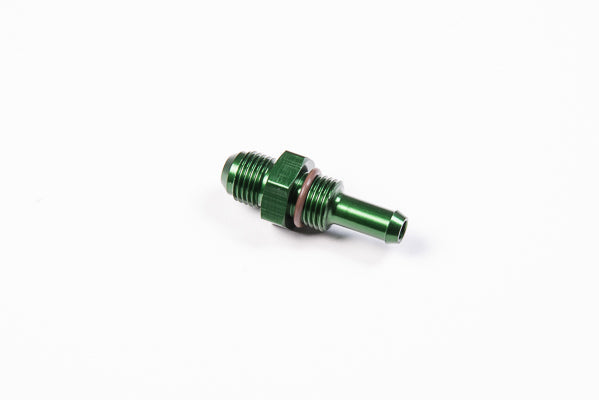

Radium 20-0170 Fuel Surge Tank Bulkhead Fitting, 6AN ORB, 6AN Male Flare to 8.5mm Barb

Radium 20-0170 Fuel Surge Tank Bulkhead Fitting, 6AN ORB, 6AN Male Flare to 8.5mm Barb

Application: Universal – Radium fuel hangers or any 6AN ORB threaded surface
Part Type: 6AN ORB bulkhead fitting, 6AN male AN flare to barb
Part Number: 20-0170

The Radium 20-0170 is a 6AN ORB bulkhead fitting with a 6AN male AN flare on top and a barbed hose connection underneath, for use in Radium fuel hangers or any 6AN ORB threaded surface.

These anodised aluminium bulkhead fittings have a barbed hose connection on the underside and a male AN flare connection on the top side. The threads are AN ORB (O-ring boss) for use in various Radium fuel hangers, or any ORB threaded surface.

Key Features

• Top Side: 6AN male AN flare
• Underside: Barbed hose connection
• Thread: 6AN ORB, 9/16"-18 O-ring boss
• Material: Anodised aluminium
• O-ring: FKM – suits all oil and fuel types

What's Included

• 1 x 20-0170 bulkhead fitting with FKM O-ring

Important Notes

• Lubricate the O-ring with engine oil, O-ring lube or petroleum jelly before installation

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
