Radium 16AN ORB to Barb for 3/4" Hose Fitting

Radium 16AN ORB to Barb for 3/4" Hose Fitting

Application: Universal – any 16AN ORB (1-5/16"-12) port
Part Type: 16AN ORB to 3/4" hose barb adaptor
Part Number: 14-1194

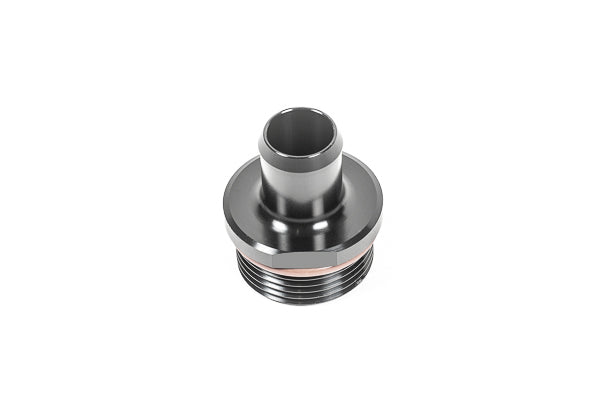

The Radium 14-1194 adapts a 16AN ORB male port to a 3/4" hose barb, made from anodised aluminium.

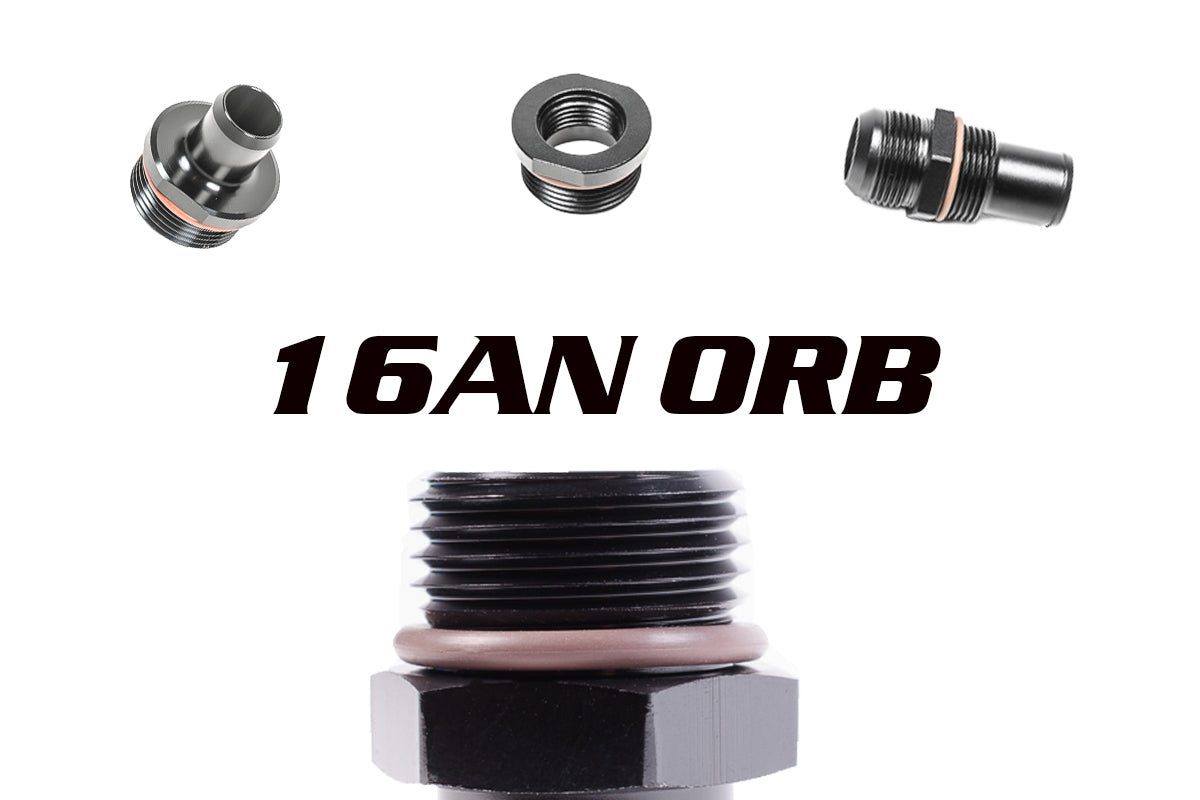

The 1-5/16"-12 threaded Radium 16AN ORB fittings suit 16AN ORB (O-ring boss) ports. The threads do not seal, so PTFE paste or thread sealant is not required – the FKM O-ring makes the seal. ORB ports are an industry standard and are found on many automotive plumbing products, including most Radium products.

Key Features

• ORB Side: 16AN ORB male (1-5/16"-12 thread)
• Barb Side: 3/4" hose barb
• Construction: Anodised aluminium
• No Sealant Needed: Threads do not seal – the FKM O-ring does

What's Included

• 1 x fitting
• 1 x FKM O-ring

Important Notes

• Threads do not seal – PTFE paste or thread sealant is not required
• Lubricate the O-ring with O-ring lube, petroleum jelly or engine oil before installation to avoid damage

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
