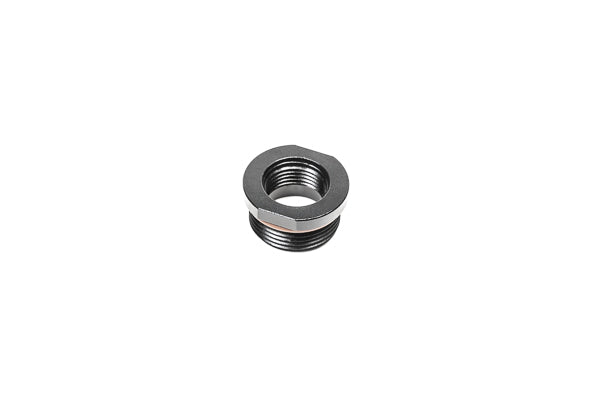

Radium 16AN ORB Male to 10AN ORB Female Coupler

Radium 16AN ORB Male to 10AN ORB Female Coupler

Application: Universal – 16AN ORB (1-5/16"-12) ports, stepping down to 10AN ORB (7/8"-14)
Part Type: 16AN ORB male to 10AN ORB female coupler
Part Number: 14-0698

The Radium 14-0698 16AN ORB Male to 10AN ORB Female Coupler threads into a 16AN ORB (1-5/16"-12) O-ring boss port and provides a 10AN ORB female port, so 10AN ORB fittings can be used in a 16AN port.

Because the threads on ORB fittings are not used for sealing, no PTFE paste or thread sealant is required. ORB ports are an industry standard found on many automotive plumbing products, including most Radium products.

Key Features

• Side 1: 16AN ORB male (1-5/16"-12)
• Side 2: 10AN ORB female (7/8"-14)
• Anodised Aluminium: Anodised aluminium construction
• O-Ring Sealed: FKM O-ring included – no thread sealant required

What's Included

• 1 x 14-0698 coupler
• 1 x FKM O-ring

Important Notes

• The threads do not seal – do not use PTFE paste or thread sealant
• Lubricate O-rings with O-ring lube, petroleum jelly or motor oil before installation to avoid damage

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
