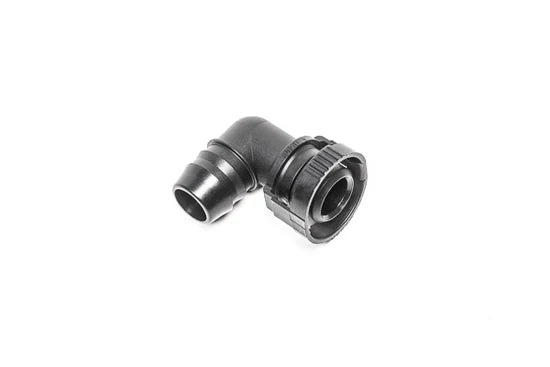

Radium 14-0768 V2 Quick Connect, 15mm Male to 90° 5/8" Barb Fitting

Radium 14-0768 V2 Quick Connect, 15mm Male to 90° 5/8" Barb Fitting

Application: Audi, BMW and VW with a 15mm female V2 quick connect (see Vehicle Fitment)
Part Type: V2 quick connect 15mm male hose end to 90° 5/8" barb
Part Number: 14-0768

The Radium Engineering 14-0768 is a 15mm V2 quick connect male hose end that connects to a 15mm female V2 quick connect and has a 90° 5/8" hose barb, so hose can be run directly from an OEM V2 port.

V2 quick connect fittings are found on many OEM crankcase ventilation and turbo inlet connections. Radium V2 fittings are used with many of these connectors and are primarily used to plumb air/oil separator (catch can) systems.

Key Features

• V2 side: 15mm V2 quick connect male – connects to a 15mm female V2 quick connect
• Hose side: 90° 5/8" hose barb
• Catch can ready: primarily used for air/oil separator (catch can) plumbing

Important Notes

• Only the listed fitments are verified by Radium – the fitting may suit other applications not listed.
• V2 sizes refer to the ID of the hose connected to the fitting, not the fitting itself, so the fitting measures larger than its nominal size.
• Always lubricate the mating O-rings with a light amount of petroleum jelly, O-ring lube or motor oil before installation.

Vehicle Fitment

• Audi S3 8Y (EA888)
• BMW M3 E46 (S54)
• VW Golf GTI MK8 and Golf R MK8 (EA888)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
