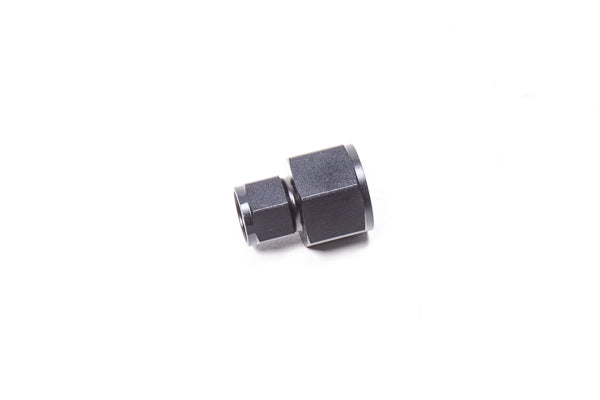

Radium 14-0531 10AN ORB Female to 6AN ORB Female Fitting

Radium 14-0531 10AN ORB Female to 6AN ORB Female Fitting

Application: Universal – 10AN ORB (7/8"-14) port to 6AN ORB
Part Type: 10AN ORB to 6AN ORB adaptor fitting
Part Number: 14-0531

The Radium 14-0531 is a 10AN ORB adaptor fitting for connecting a 10AN ORB port to 6AN ORB, from Radium's range of ORB adaptor fittings. Radium lists it in both its 6AN ORB and 10AN ORB fitting ranges.

The 7/8"-14 thread is compatible with 10AN ORB (O-ring boss) ports. Because the threads on these fittings are not used for sealing, PTFE paste or thread sealant is not required – the FKM O-ring makes the seal. ORB ports are an industry standard and are found on many automotive plumbing products, including most Radium products.

Key Features

• 10AN Side: 10AN ORB (7/8"-14 thread)
• Other Side: 6AN ORB (9/16"-18 thread)
• Construction: Anodised billet aluminium (Radium 6AN ORB fitting range)
• FKM O-Rings: All Radium ORB fittings include FKM O-rings
• No Sealant Needed: ORB threads do not seal, so no PTFE paste is required

What's Included

• 1 x fitting, with the FKM O-rings or washers needed for installation

Optional Parts

• Radium 18-0043-10 10AN ORB FKM O-Ring, 5 Pack (18-0043-10) – replacement FKM O-rings for 10AN ORB fittings
• Radium 18-0043-06 6AN ORB FKM O-Ring, 5 Pack (18-0043-06) – replacement FKM O-rings for 6AN ORB fittings

Important Notes

• PTFE paste or thread sealant is not required on ORB threads – the O-ring does the sealing
• Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
