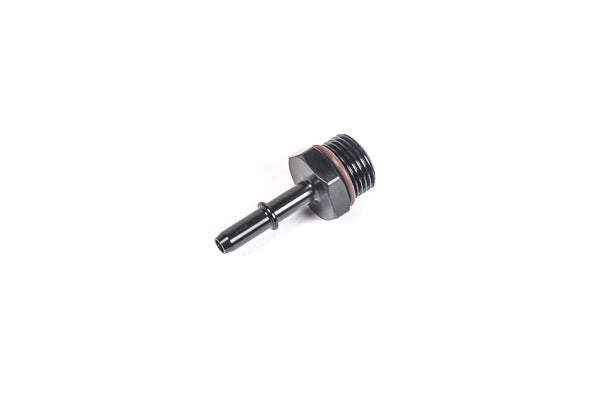

Radium 14-0337 10AN ORB to 5/16" SAE Male Fitting

Radium 14-0337 10AN ORB to 5/16" SAE Male Fitting

Application: Universal (10AN ORB / 7/8"-14 O-ring ports)
Part Type: 10AN ORB adapter fitting (10AN ORB to 5/16" SAE quick connect male)
Part Number: 14-0337

The Radium Engineering 14-0337 is a 10AN ORB (O-ring boss) to 5/16" SAE quick connect male adapter fitting. ORB ports are an industry standard, found on many automotive plumbing products including most Radium products, and Radium 10AN ORB fittings suit any application with a 7/8"-14 (10AN ORB) O-ring port.

Because the threads are not used for sealing, PTFE paste or thread sealant is not required. Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation. The SAE quick connect male end accepts OEM-style SAE EFI quick connect female connectors, as used on most modern fuel-injected vehicles.

Key Features

• ORB thread: 7/8"-14 (10AN ORB, O-ring boss)
• Connection: 10AN ORB to 5/16" SAE quick connect male
• O-ring: FKM O-ring included
• No sealant needed: threads do not seal, so PTFE paste or thread sealant is not required
• Universal: suits any 10AN ORB port, including many Radium products

What's Included

• 1 x Radium 14-0337 10AN ORB to 5/16" SAE quick connect male fitting, plus any O-rings or washers needed for installation

Optional Parts

• Radium 18-0043-10 10AN ORB FKM O-Ring, 5 Pack (18-0043-10) – replacement FKM O-rings for 10AN ORB fittings

Important Notes

• Always lubricate the mating SAE quick connect O-rings with a light amount of oil before installing.
• Lubricate the ORB O-ring with engine oil, O-ring lube or petroleum jelly before installation.
• Replacement FKM O-rings are sold separately.

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
