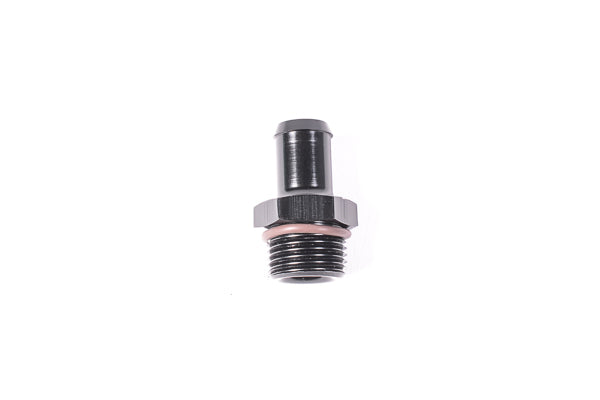

Radium 14-0193 10AN ORB to 5/8" Hose Barb Fitting

Radium 14-0193 10AN ORB to 5/8" Hose Barb Fitting

Application: Universal – any 10AN ORB (7/8"-14) O-ring port
Part Type: 10AN ORB to 5/8" hose barb adaptor fitting
Part Number: 14-0193

The Radium Engineering 14-0193 adapts a 10AN ORB (O-ring boss) port to a 5/8" hose barb. Radium lists it in its 10AN ORB to barb connections range of 7/8"-14 threaded adaptor fittings.

Because the threads on ORB fittings are not used for sealing, PTFE paste or thread sealant is not required – the seal is made by the included FKM O-ring. ORB ports are an industry standard and are found on many automotive plumbing products, including most Radium products.

Key Features

• ORB side: 10AN ORB male, 7/8"-14 thread
• Barb side: 5/8" hose barb
• O-ring sealed: FKM O-ring included – no PTFE paste or thread sealant required
• Industry standard: suits 10AN ORB ports found on most Radium products and many other plumbing products

What's Included

• 1 x Radium 14-0193 fitting
• FKM O-ring

Optional Parts

• Radium 18-0043-10 10AN ORB FKM O-Ring, 5 Pack (18-0043-10) – replacement FKM O-rings for 10AN ORB fittings

Important Notes

• Threads do not seal – PTFE paste or thread sealant is not required.
• Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation.

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
