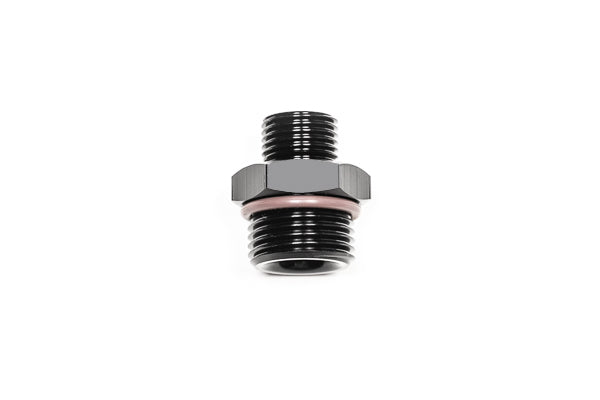

Radium 10AN ORB to M16x1.5mm Male Fitting

Radium 10AN ORB to M16x1.5mm Male Fitting

Application: Universal – 10AN ORB (7/8"-14) ports to M16 metric connections
Part Type: 10AN ORB to M16 metric adapter fitting
Part Number: 14-0341

The Radium Engineering 14-0341 is listed in Radium's 10AN ORB range under 10AN ORB to other connections, and in its metric adapter range under M16 fittings. Radium's 7/8"-14 threaded adapter fittings are compatible with 10AN ORB (O-ring boss) ports – the threads do not seal, so PTFE paste or thread sealant is not required.

All Radium 10AN ORB fittings include FKM O-rings, and each part number includes one fitting with the O-rings or washers needed for installation. Metric adapter fittings come in varying thread pitches, so verify the pitch in your application.

Key Features

• ORB Side: 10AN ORB (7/8"-14)
• Metric Side: M16 (listed under Radium's M16 fittings)
• No Sealant: Threads do not seal – no PTFE paste or thread sealant required
• FKM O-Ring: FKM O-rings included

What's Included

• 14-0341 fitting (x1) with the O-rings or washers needed for installation

Important Notes

• Metric threads come in varying pitches – verify your thread pitch before ordering
• Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil
• Radium lists this part number by image only in its fitting range – please confirm the connection sizes in the title with Coore before ordering

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
