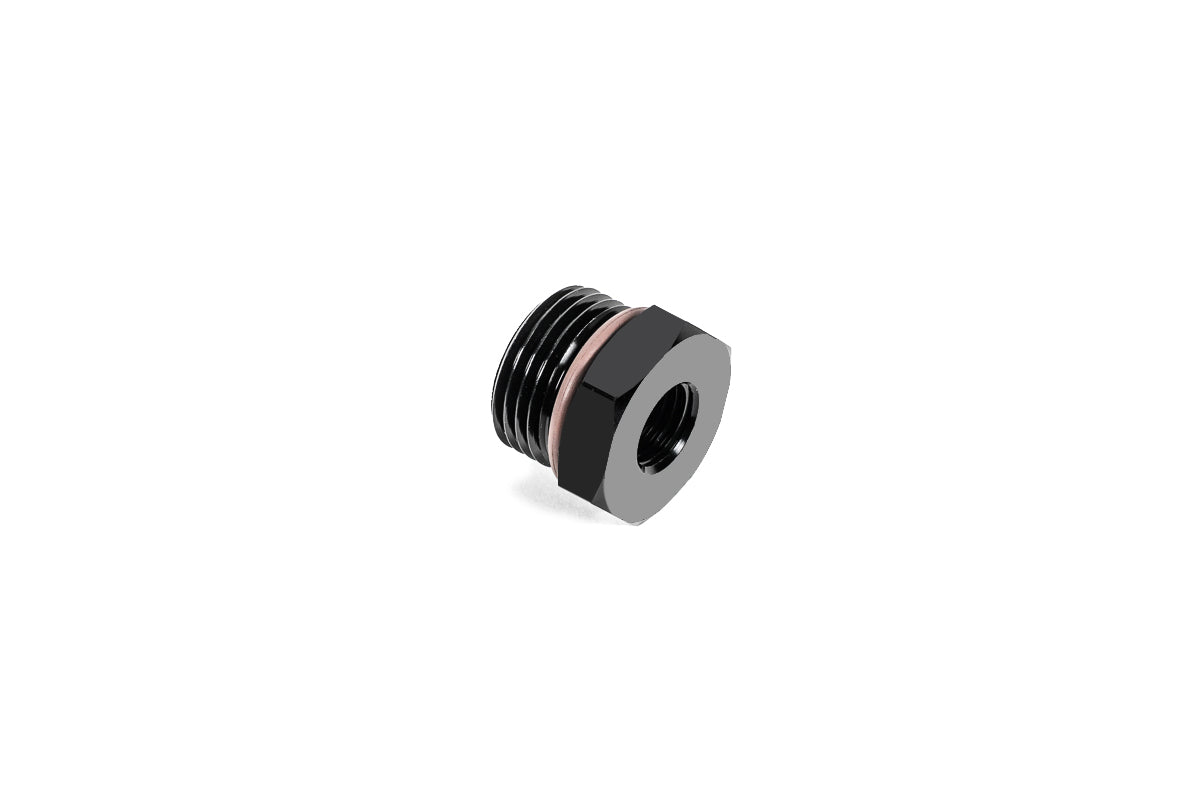

Radium 10AN ORB to M12x1.25mm Female Fitting

Radium 10AN ORB to M12x1.25mm Female Fitting

Application: Universal – any 10AN ORB (7/8"-14) port
Part Type: 10AN ORB to M12 metric female adaptor
Part Number: 14-0930

The Radium 14-0930 adapts a 10AN ORB port to an M12x1.25mm female metric thread. It is part of Radium's M12 metric adapter fitting range.

The 7/8"-14 threaded Radium 10AN ORB fittings suit 10AN ORB (O-ring boss) ports. The threads do not seal, so PTFE paste or thread sealant is not required – the FKM O-ring makes the seal. ORB ports are an industry standard and are found on many automotive plumbing products, including most Radium products.

Key Features

• ORB Side: 10AN ORB male (7/8"-14 thread)
• Metric Side: M12x1.25mm female
• No Sealant Needed: Threads do not seal – the FKM O-ring does

What's Included

• 1 x fitting
• FKM O-ring

Optional Parts

• Radium 18-0043-10 10AN ORB FKM O-Ring, 5 Pack (18-0043-10) – replacement FKM O-rings for 10AN ORB fittings

Important Notes

• Threads do not seal – PTFE paste or thread sealant is not required
• Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation
• Metric adapter fittings come in varying thread pitches – verify your thread pitch before ordering (Radium also offers M12x1.5mm, 14-0920)

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
