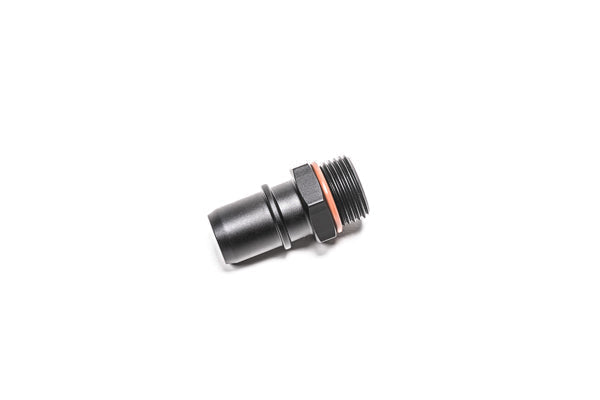

Radium Engineering 10AN ORB to .750" SAE Male Fitting

Radium 10AN ORB to .750" SAE Male Fitting

Application: Universal – 10AN ORB (7/8"-14) O-ring ports
Part Type: 10AN ORB to .750in (3/4in) SAE quick connect male adapter fitting
Part Number: 14-0749

The Radium 14-0749 is part of Radium's 10AN ORB fitting range, listed under its 10AN ORB to SAE quick connect connections. It threads into a 10AN ORB (7/8"-14) port and provides an SAE quick connect male end.

Because the threads on ORB fittings are not used for sealing, no PTFE paste or thread sealant is required. ORB ports are an industry standard found on many automotive plumbing products, including most Radium products. SAE quick connect fittings push on and secure to most modern USA, European and Japanese fuel injection systems, so OEM quick connect fuel lines can be adapted to aftermarket plumbing.

Key Features

• 10AN ORB Thread: 7/8"-14 O-ring boss thread
• SAE Quick Connect: Male SAE quick connect connection for OEM-style quick connect fuel lines
• O-Ring Sealed: FKM O-ring included – no thread sealant required

What's Included

• 1 x fitting, with the O-rings or washers it needs

Important Notes

• The threads do not seal – do not use PTFE paste or thread sealant
• Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation
• To confirm the SAE quick connect size you need, measure the outside diameter of the male fitting: 0.3125in = 5/16in, 0.375in = 3/8in, 0.500in = 1/2in, 0.625in = 5/8in
• Replacement O-rings are available separately

Vehicle Fitment

• Universal – see Application

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
