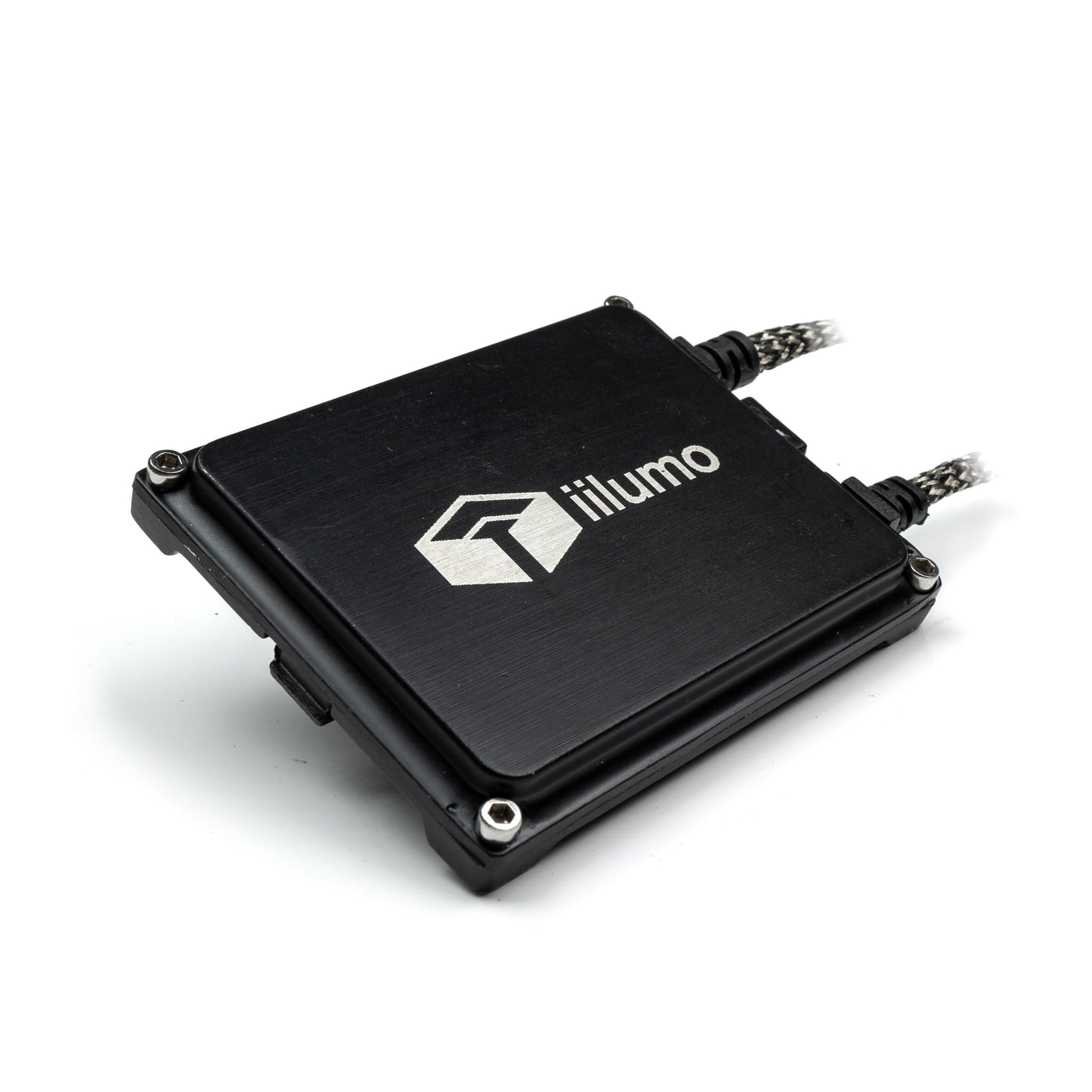

POWER 55 : HID BALLAST

The iilumo POWER 55 HID ballasts feature a compact design to minimise mounting headaches, CANBUS compatibility, and fast warm up speeds to reach full brightness in no time!

Unique to the POWER 55 HID ballasts is the utilisation of the infamous Hylux ASIC based chipset technology which translates to extreme reliability. The ballasts will react to the bulbs' response and will increase or decrease the output accordingly to maintain stability and performance. Additionally, there is open/short circuit protection for the added peace of mind.

Want high performance, stable and reliable HID ballasts? POWER 55.

SPECIFICATIONS

• Output Wattage: 55W
• Output Current: 85V AC
• Input Range: 9-16V DC
• Input Current: 5A @ Startup
• Ignition Voltage: 23KV
• Operating Temperature: -40C to +85C
• Rated Lifespan: 2500+ hours

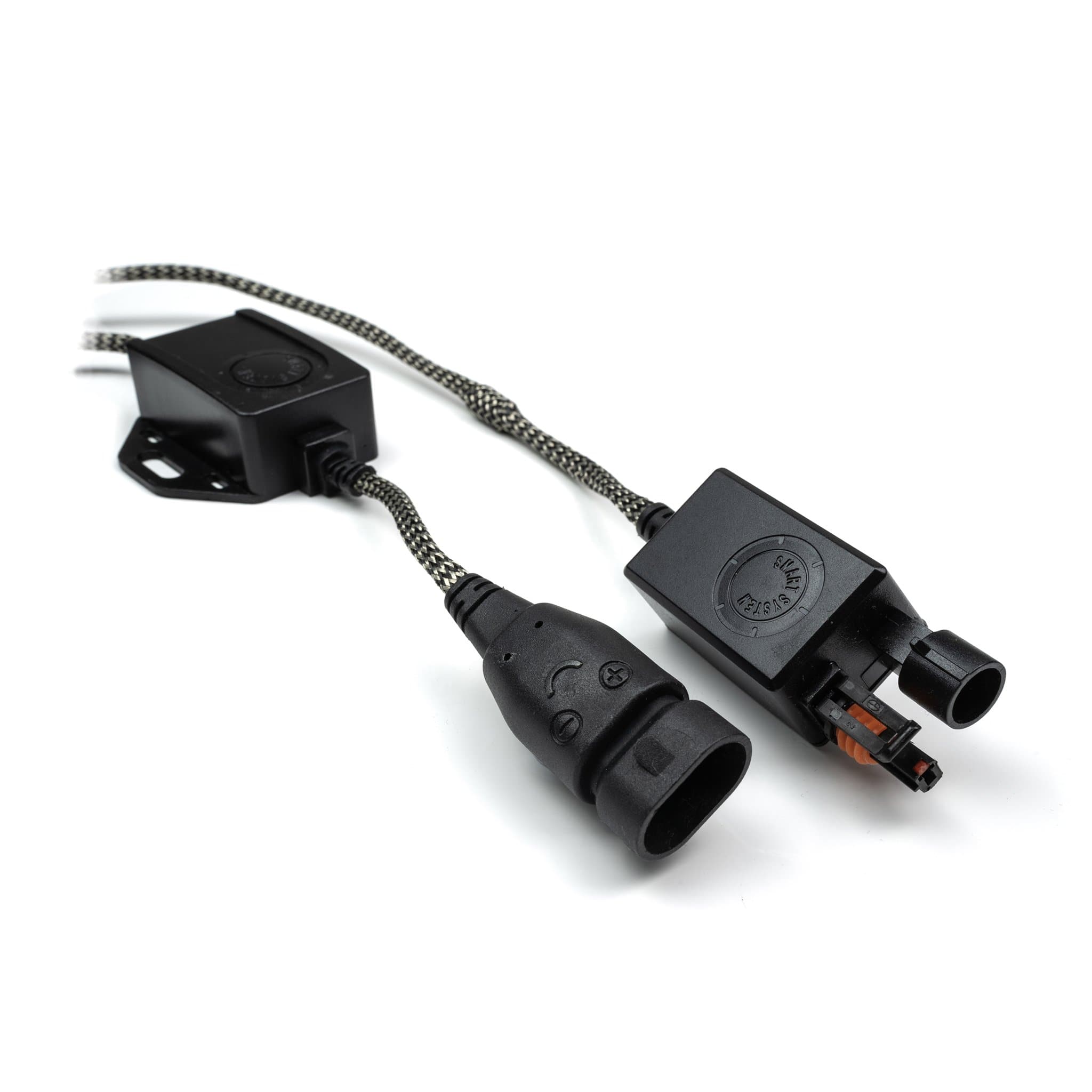

• Wiring Input: Universal female 9006 socket
• Wiring Output: AMP style sockets
• Dimensions: 90mm x 70mm x 15mm
• E-Mark/ISO9001/RoHS Certified
• Not ADR/DOT Approved

FEATURES

• Compact design
• ASIC chipset
• Integrated CANBUS module
• Fast warm up speeds to reach full brightness quickly
• Anti-electromagnetic interference
• Shock, water and dust resistant
• Reverse polarity protection

WARRANTY

• 2 Year Warranty

INCLUDED

• 2 x 55W HID Ballastss

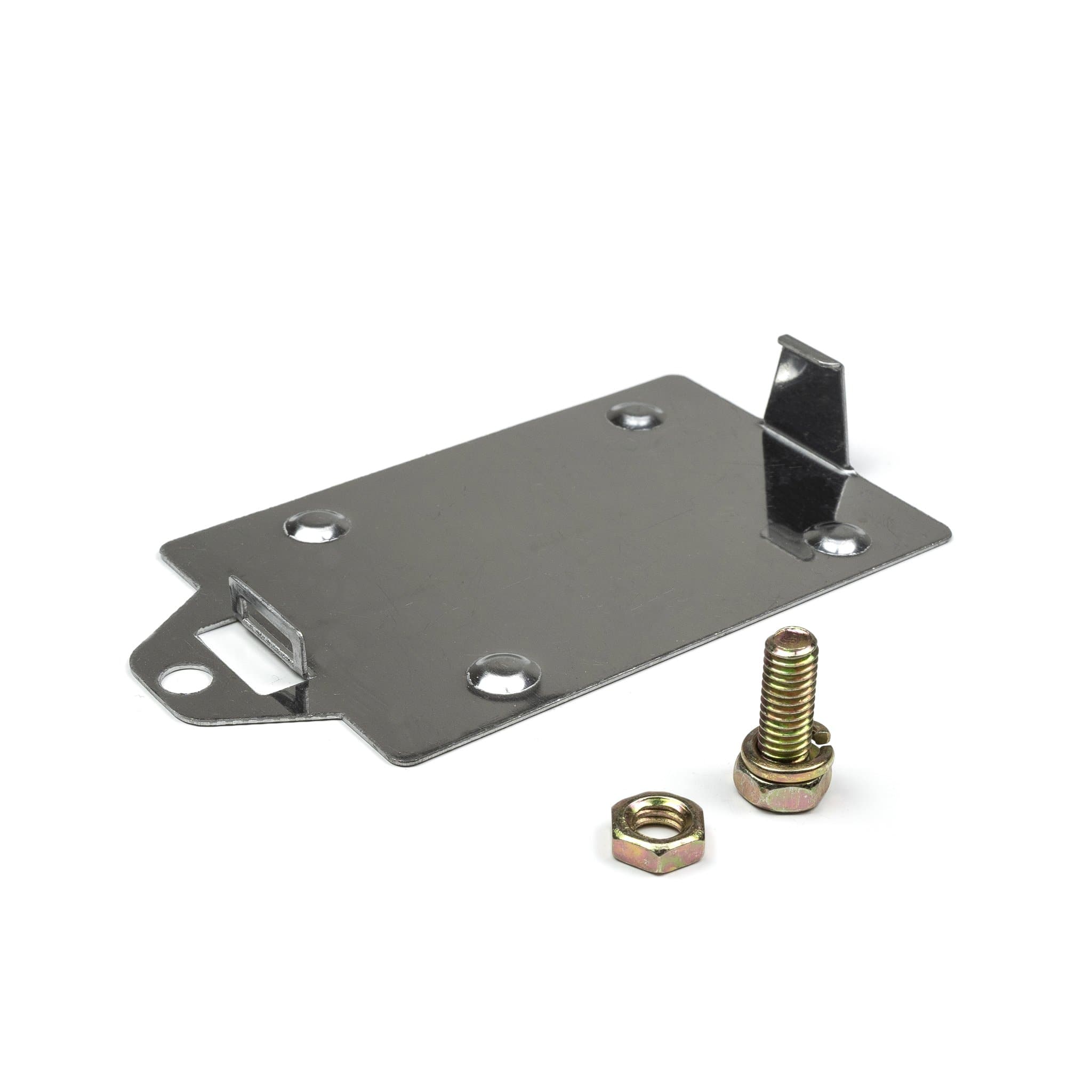

• 2 x Mounting bracket plates
• 2 x Nuts and bolts
• 2 x Heavy duty double sided foam stickers
