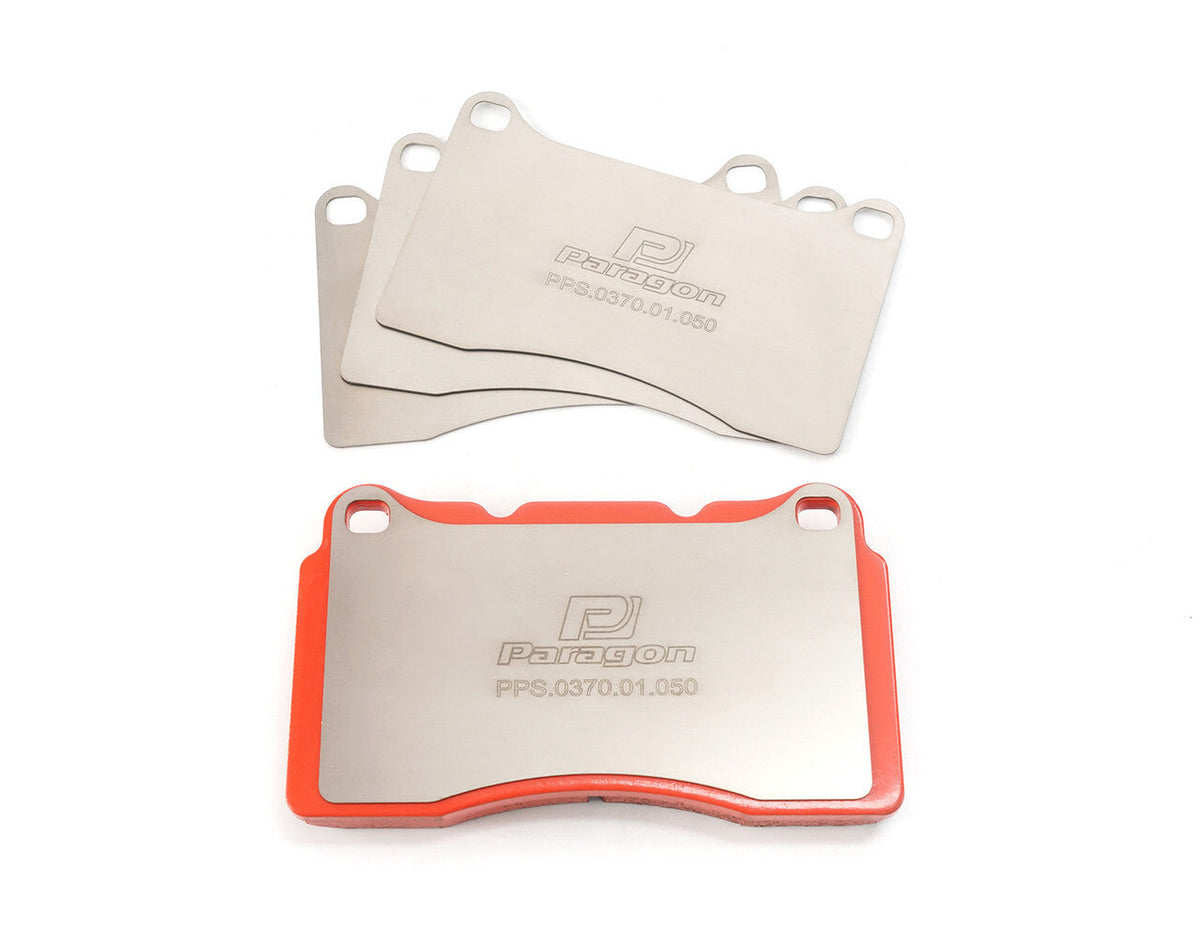

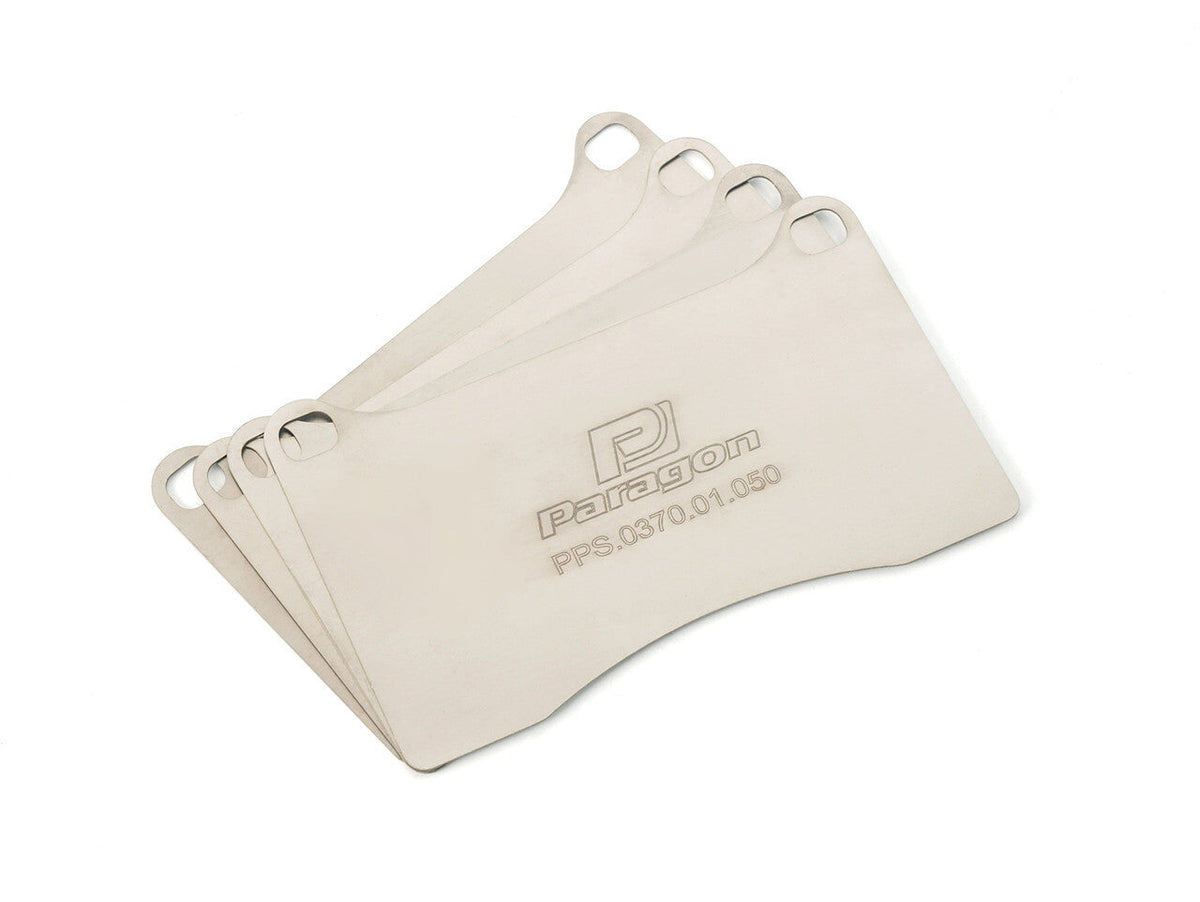

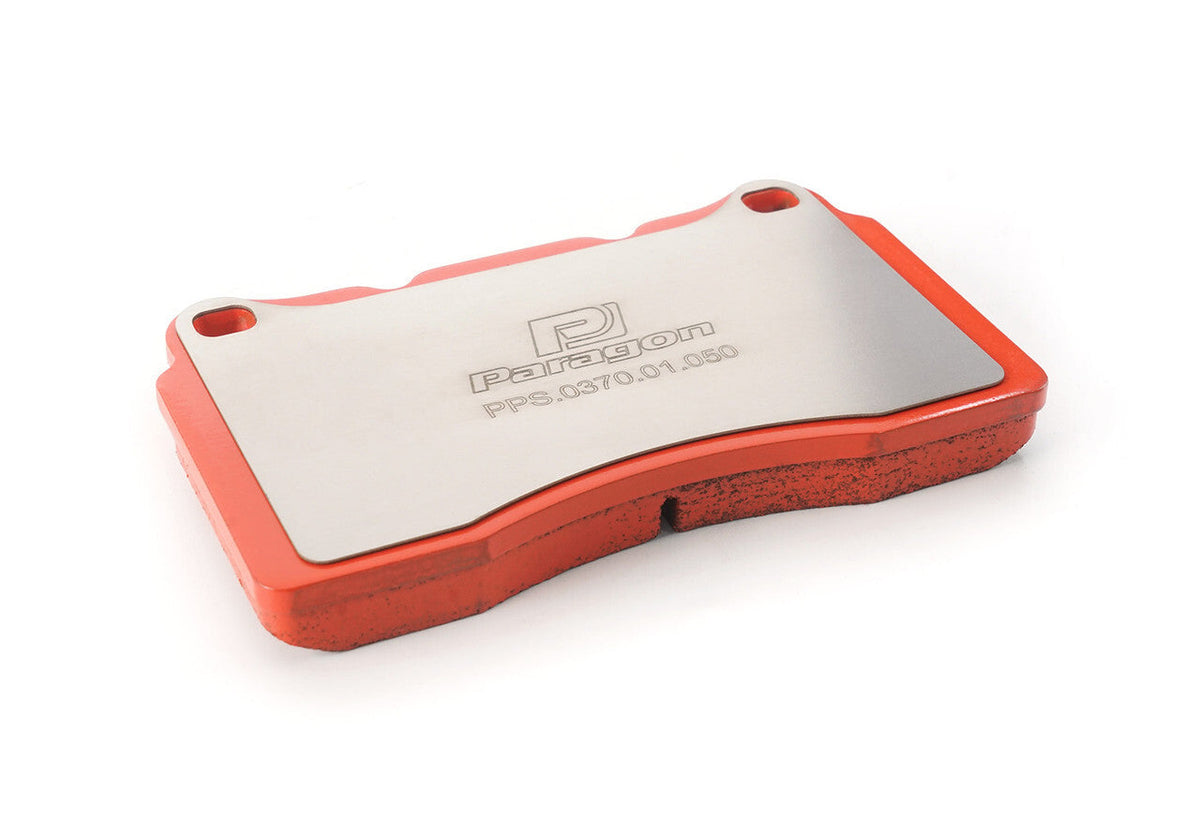

Paragon PPS370 Titanium Brake Pad Shims (Suit Brembo 4 pot STI, Civic Type R)

Paragon PPS370 Titanium Pad Shims

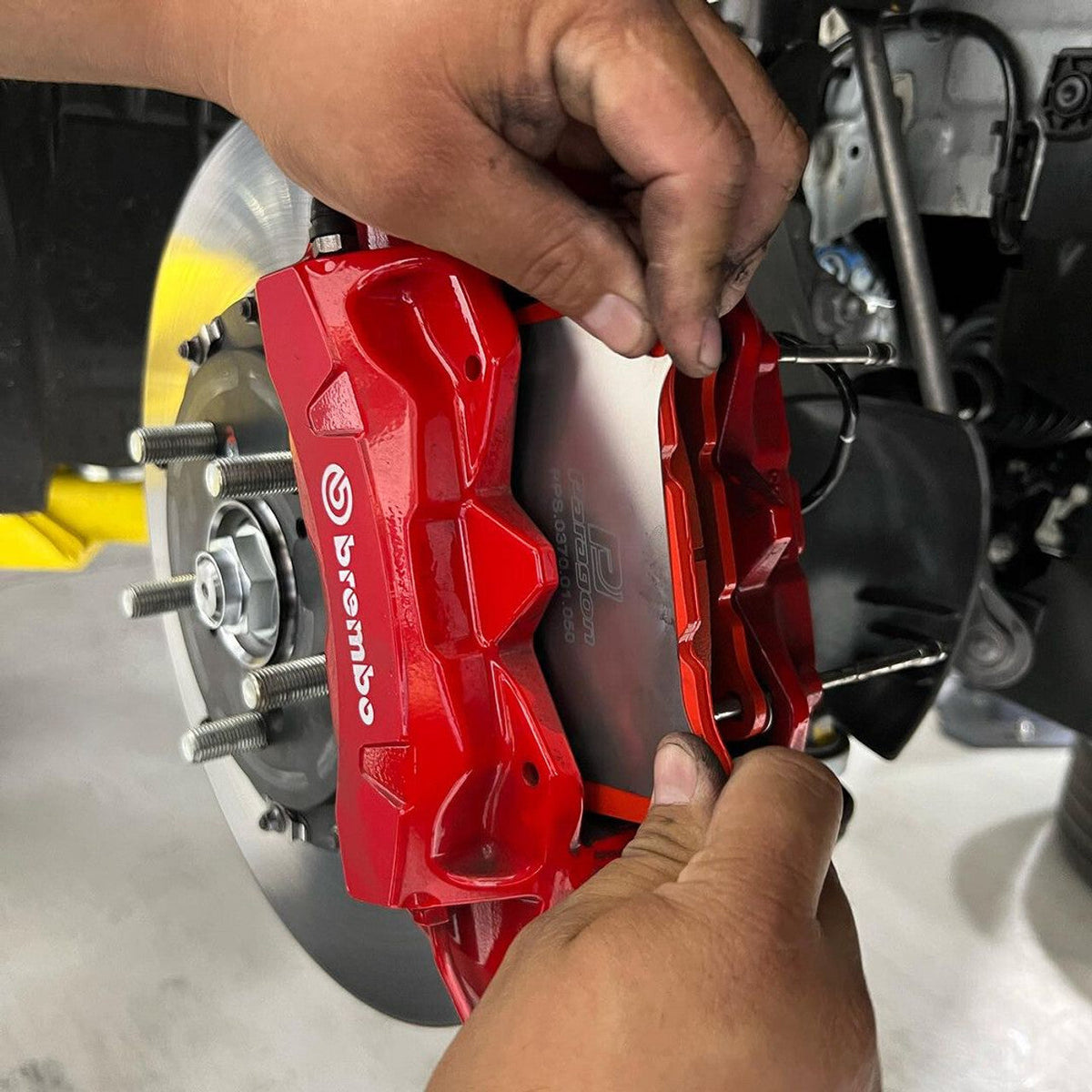

Great heat management upgrade to improve braking performance for track and race applications. Paragon titanium pad shims are made of high quality Grade 5 titanium (6AL-4V / ASTM B348). Fits between the brake pads and calipers, and can act as an effective thermal barrier due to the significantly lower thermal conductivity of titanium.

Reduce heat transfer from the brake pads to the calipers and brake hydraulic system to lower the operating temperature. When the rotors and pads are hot, heat transfer via the caliper pistons to the calipers and brake fluid may lead to fluid overheat and brake fade. Fluid fade will lead to soft brake pedal and affect modulation, and is dangerous when there is sudden loss of braking power at the track.

Lower long term maintenance cost by protecting the caliper seals, dust boots, and brake fluid. Excessive heat will deteriorate these components a lot faster and lead to unnecessary replacement cost, plus wasted track time. Boiled fluid needs to be replaced after every track day.

OEM FK8 Brembo 4 piston calipers are known for turning brown or even black after track use. This low cost solution can reduce the likelihood of discoloration.

Improved safety by help preventing brake fade and failure
Extend the life of brake components and lower long term maintenance cost
Prevent boiled fluid/soft pedal
Material: Grade 5 titanium (6AL-4V / ASTM B348)
Thickness: 0.5mm (0.02")
Work with stock calipers and OEM/aftermarket brake pads
Set of 4 (axle set)


Common applications:

17-21 Honda Civic Type R FK8 front
23+ CTR FL5 front
15-16 Honda Civic Type R FK2 front
Mitsubishi EVO 5-10 (CP9A, CT9A, CZ4A) front
04-17 Subaru STI front (GDB / GRF / GVF / VAB) w/ OEM Brembo 4 pot calipers
Subaru BRZ Performance Package / Scion FR-S / Toyota 86 (w/ OEM Brembo calipers) front
Subaru BRZ tS front
11-12 Audi RS3 (8P) front
09-14 Audi TT RS (8J) front
Holden Commodore Redline w/ OEM 4 pot Brembo calipers
03-09 Cadillac CTS-V front
Megane 3 RS 250 front
Megane 4 RS front
12-13 Mustang Boss 302 front


Part Number: PPS.0370.01.050
