Paragon PPS1603 Titanium Brake Pad Shims Supra A90/BMW MZ4, BMW G20/22

Paragon PPS1603 Titanium Pad Shims

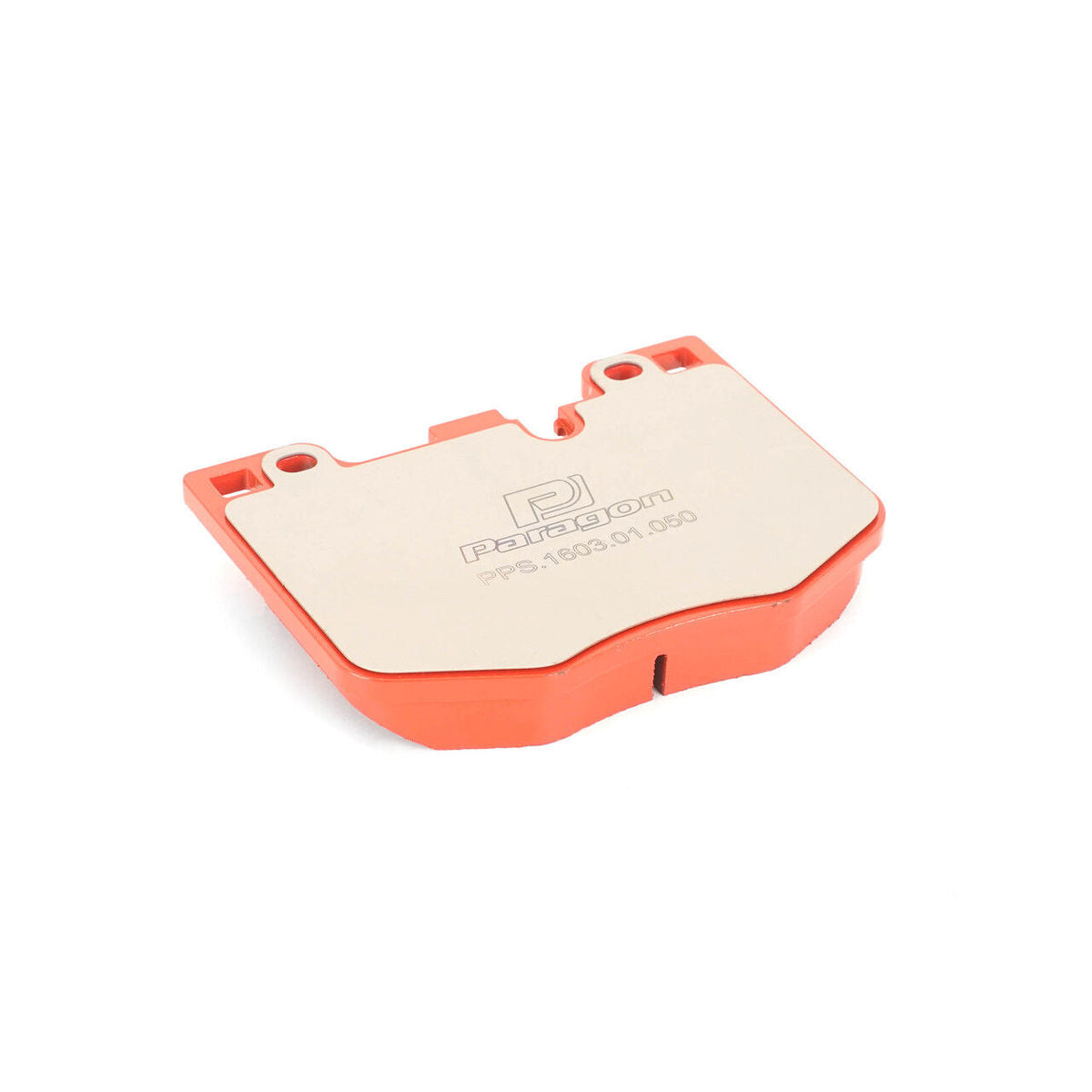

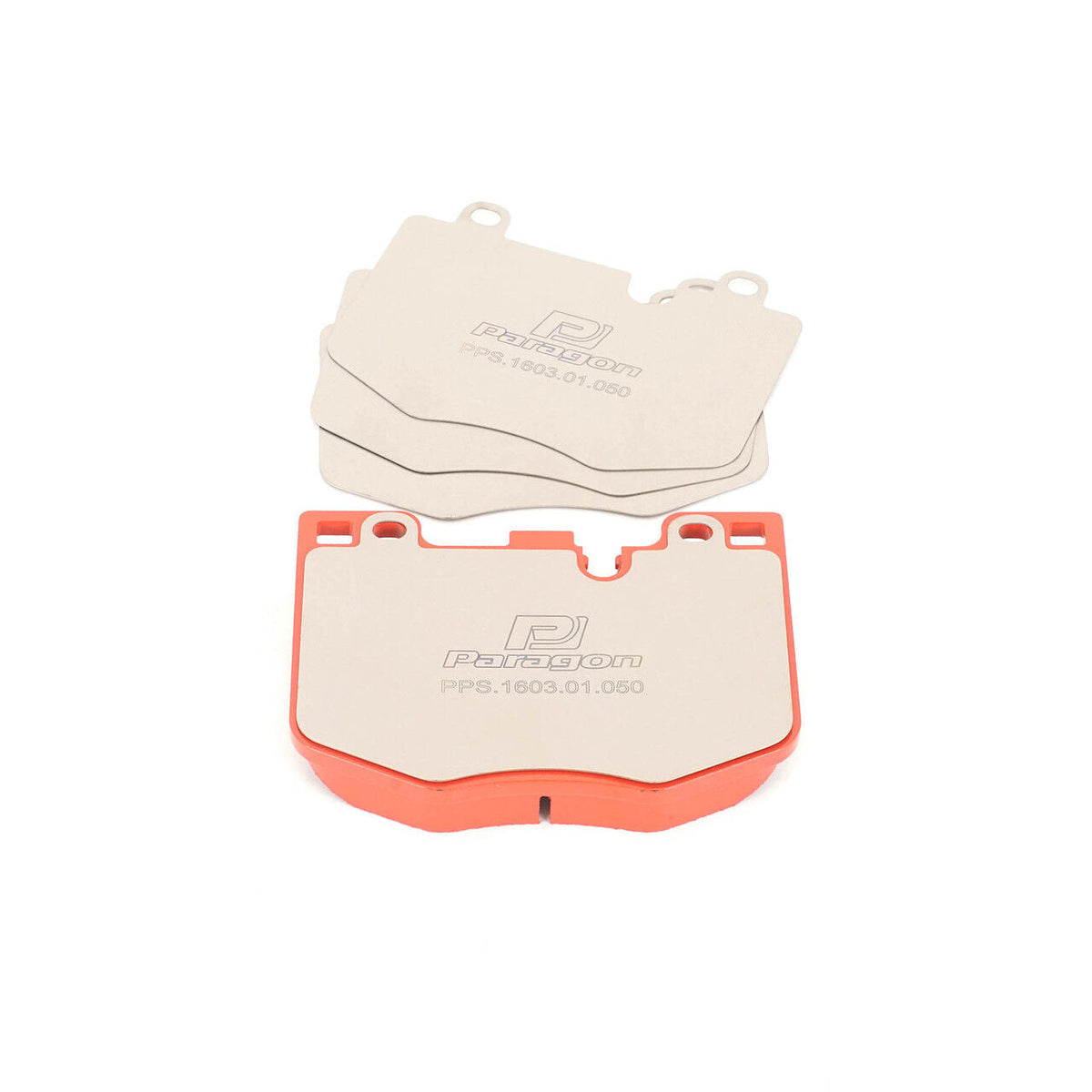

Great heat management upgrade to improve braking performance for track and race applications. Paragon titanium pad shims are made of high quality Grade 5 titanium (6AL-4V / ASTM B348). Fits between the brake pads and calipers, and can act as an effective thermal barrier due to the significantly lower thermal conductivity of titanium.

Reduce heat transfer from the brake pads to the calipers and brake hydraulic system to lower the operating temperature. When the rotors and pads are hot, heat transfer via the caliper pistons to the calipers and brake fluid may lead to fluid overheat and brake fade. Fluid fade will lead to soft brake pedal and affect modulation, and is dangerous when there is sudden loss of braking power at the track.

Lower long term maintenance cost by protecting the caliper seals, dust boots, and brake fluid. Excessive heat will deteriorate these components a lot faster and lead to unnecessary replacement cost, plus wasted track time. Boiled fluid needs to be replaced after every track day.

Work with stock calipers and OEM/aftermarket brake pads
Improved safety by help preventing brake fade and failure
Extend the life of brake components and lower long term maintenance cost
Material: Grade 5 titanium (6AL-4V / ASTM B348)
Thickness: 0.5mm (0.02")

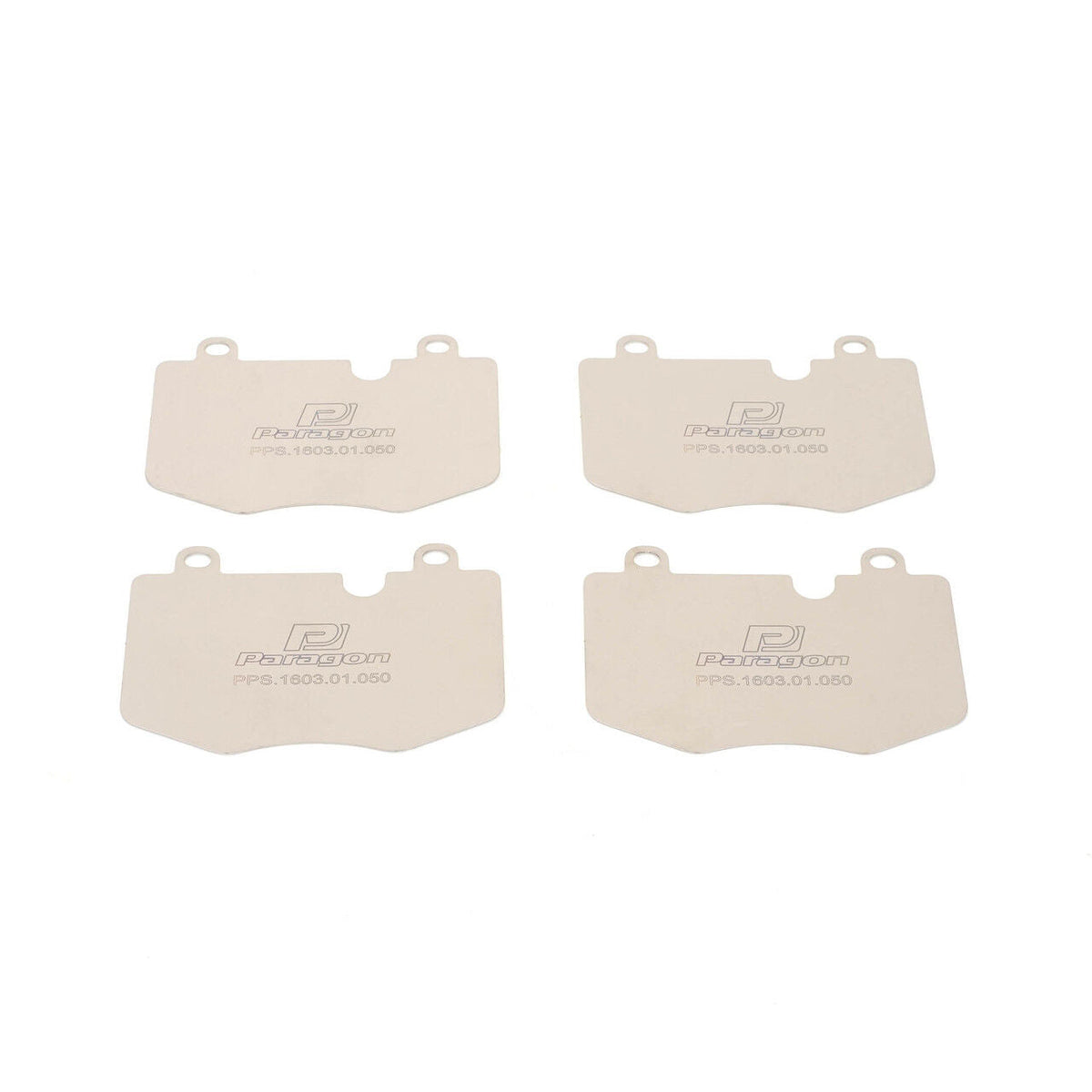

Set of 4 (axle set)


Common applications:

• 2019+ Toyota GR Supra Mk5 A90/A91 3.0 front
• 2020+ BMW Z4 G29 front
• BMW G20 3 Series 330i/M340i, G22 4 Series 430i/M440i M Sport front

Part Number: PPS.1603.01.050
