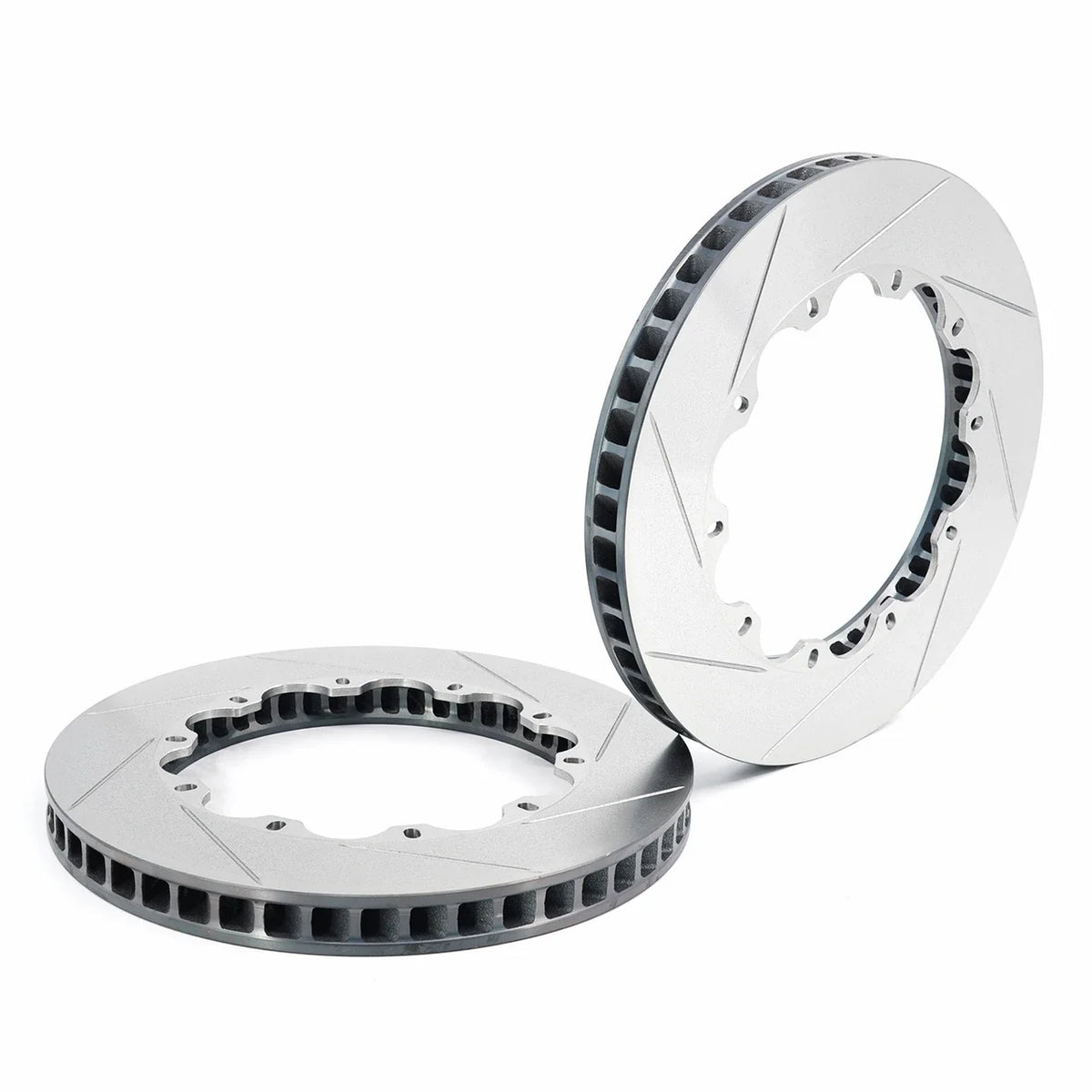

Paragon Performance Rotor Rings 355mm x 32mm — P.C.D. 233mm — 10x8.1mm Oval Mounting — D50 (Pair)
Tax included. Shipping calculated at checkout
Description
Paragon Performance Rotor Rings 355mm x 32mm — 233mm P.C.D. — D50
Application: 355mm x 32mm rotor rings with 233mm P.C.D. and 10x8.1mm oval mounting
Part Number: PRR.8009.355.2480.320.23300.08.01.L/R
Design Code: D50
Direct Replacement of: Brembo 09.5759.13/23 / 09.5759.35/45 — DBA52923.1L/R
Paragon Performance rotor rings feature directional ventilation vanes engineered for maximum airflow and thermal management under sustained high-load braking. The vane geometry accelerates heat extraction from the friction ring, keeping brake temperatures in check lap after lap and reducing the risk of thermal fade during extended track sessions. Run up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%.
Manufactured from CM-250 premium cast iron and finished using CBN (Cubic Boron Nitride) precision machining, each rotor ring delivers an exceptionally consistent friction surface. CBN machining produces tighter dimensional tolerances than conventional grinding, ensuring even pad contact and predictable, linear braking feel from the first lap.
The floating two-piece design decouples the friction ring from the aluminium hat, allowing the ring to expand thermally without inducing hat distortion or disc warping. The slotted face pattern continuously deglazes the pad surface, expels gases and debris, and maintains consistent bite — critical for drivers who demand repeatable braking performance across varying conditions. Minimises brake fade & judder during extended sessions.
The lightweight aluminium hat is CNC-machined to precise tolerances and designed for direct bolt-on fitment. With 10x8.1mm oval mounting and a 233mm P.C.D., these rings are a straightforward replacement for compatible D50 brake systems with no modification required.
Includes:
- One pair of Paragon Performance Rotor Rings (LH & RH)
- Detailed installation manual
Specifications:
| Diameter | 355mm (13.98") |
| Thickness (new) | 32mm (1.26") |
| Internal Diameter | 248mm |
| Inside Flange Diameter | 209mm |
| P.C.D. | 233mm |
| Number of Mounting | 10 |
| Size of Mounting | 8.1 x 10.25mm |
| Type of Mounting | Oval |
| Mtg. Flange Thickness | 8mm |
| Type of Flange Face | Step Up +2.5mm |
| Max. Pad Depth | 53.5mm |
| Number of Vanes | 48 |
| Air Vane Gap | 19.3mm |
| Design Code | D50 |
| Face Pattern | Slotted |
| Vented/Solid | Vented |
| Friction Ring Material | CM-250 Cast Iron (CBN Machined) |
| Hat Material | Aluminium |
| Type | Two-Piece Floating |
Cross Reference:
| Brembo | 09.5759.13/23 / 09.5759.35/45 |
| DBA | DBA52923.1L/R |
Sold as a pair. Price includes both left and right rotor rings.
Lead time is typically 7–14 business days. Contact us at hello@iilumolab.com for availability and fitment confirmation before ordering.
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
