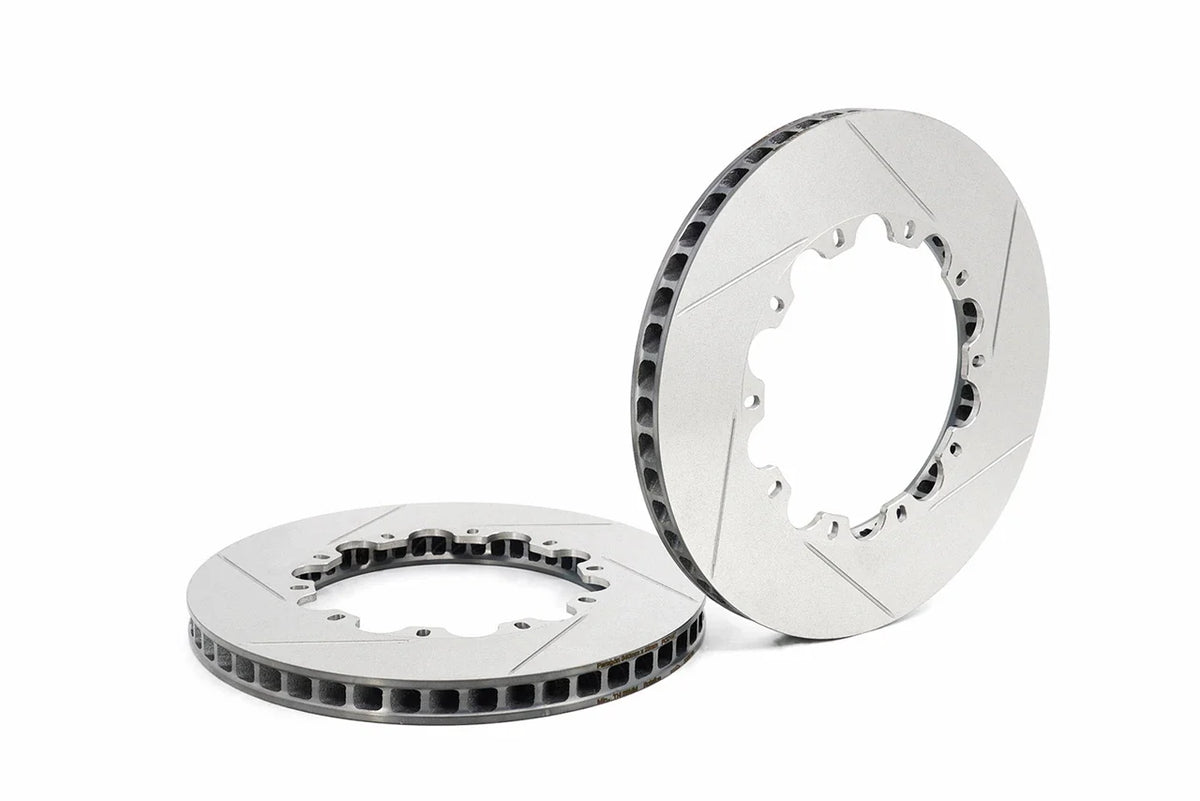

Paragon Performance Rotor Rings 345mm x 28mm — P.C.D. 223mm — 10x8.1mm Oval Mounting — D50 (Pair)
Tax included. Shipping calculated at checkout
Description
Paragon Performance Rotor Rings 345mm x 28mm — 223mm P.C.D. — D50
Application: 345mm x 28mm rotor rings with 223mm P.C.D. and 10x8.1mm oval mounting
Part Number: PRR.8009.345.2370.280.22300.08.01.L/R
Design Code: D50
Direct Replacement of: Brembo 09.5759.94/95 / 09.5759.96/97 — DBA52915.1
Paragon Performance rotor rings offer superior braking and cooling efficiency optimised for track and race applications. Directional ventilation vanes create suction, turbulence, and guide cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track conditions. Run up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%.
Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration, then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.
Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotor rings went through rigorous quality control procedures and inspections to ensure the rotor rings are fit for their purposes. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipates heat and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or rainy conditions by preventing water films from forming between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, these rotors improve overall handling by saving unsprung mass.
2-piece design minimises brake fade & judder during extended sessions.
Includes:
- One pair of Paragon Performance Rotor Rings (LH & RH)
- Detailed installation manual
Extra/replacement hardware is available for purchase. We recommend using new hardware when replacing rotors to ensure the rotor ring is attached to the aluminium hat properly. Please refer to the Rotor Assembly Instructions for torque specs and detailed instructions.
Specifications:
| Diameter | 345mm (13.58") |
| Thickness (new) | 28mm (1.10") |
| Internal Diameter | 237mm |
| Inside Flange Diameter | 207mm |
| P.C.D. | 223mm |
| Number of Mounting | 10 |
| Size of Mounting | 8.1 x 10.25mm |
| Type of Mounting | Oval |
| Mtg. Flange Thickness | 6mm |
| Type of Flange Face | Step Up +1mm |
| Max. Pad Depth | 54mm |
| Number of Vanes | 48 |
| Air Vane Gap | 17mm |
| Design Code | D50 |
| Face Pattern | Slotted |
| Vented/Solid | Vented |
| Friction Ring Material | CM-250 Cast Iron (CBN Machined) |
| Hat Material | Aluminium |
| Type | Two-Piece Floating |
Cross Reference:
| Brembo | 09.5759.94/95 / 09.5759.96/97 |
| DBA | DBA52915.1 |
Sold as a pair. Price includes both left and right rotor rings.
Lead time is typically 7–14 business days. Contact us at hello@iilumolab.com for availability and fitment confirmation before ordering.
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
Installation
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
