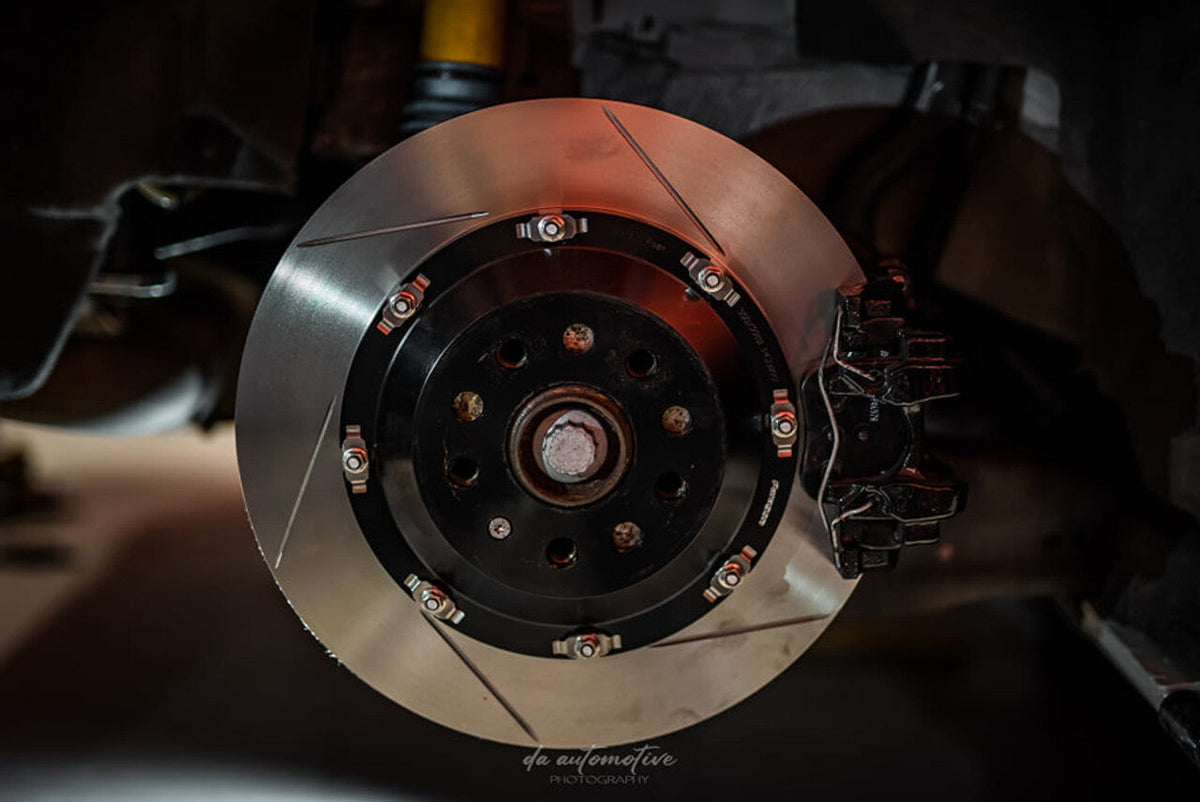

Paragon 2-Piece Rotors Rear Pair 350mm x 22mm (13.78" x 0.87") for Audi RS3 8V / 8V.5 Inc. Caliper Carrier

Paragon 2-piece Rotors (Rear Pair) for Audi RS3 (8V / 8V.5) Inc. Caliper Carrier
Paragon Performance 2-piece Rotor offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

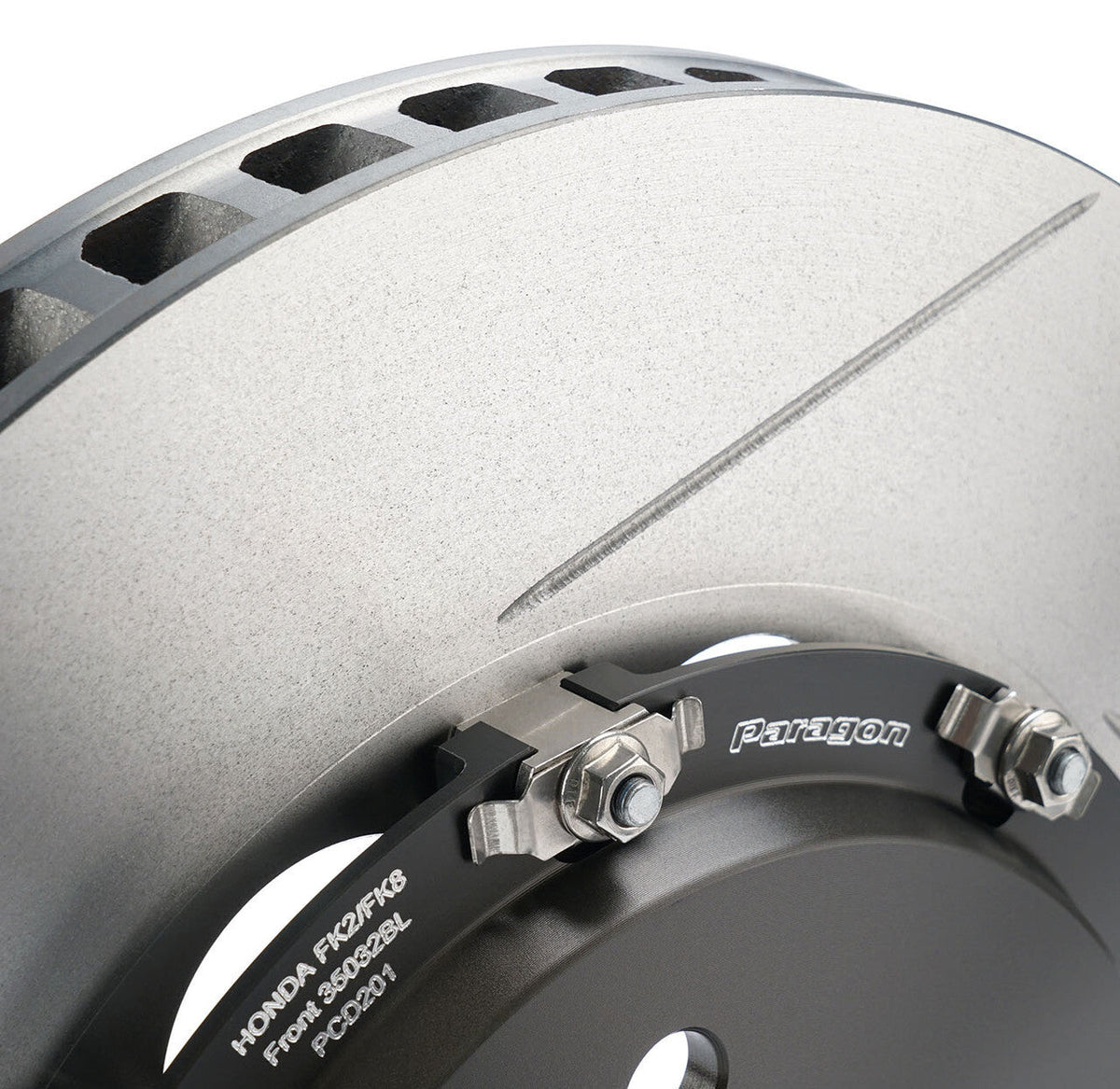

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. The fully-floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, our 2-piece rotors improves overall handling by saving unsprung mass.

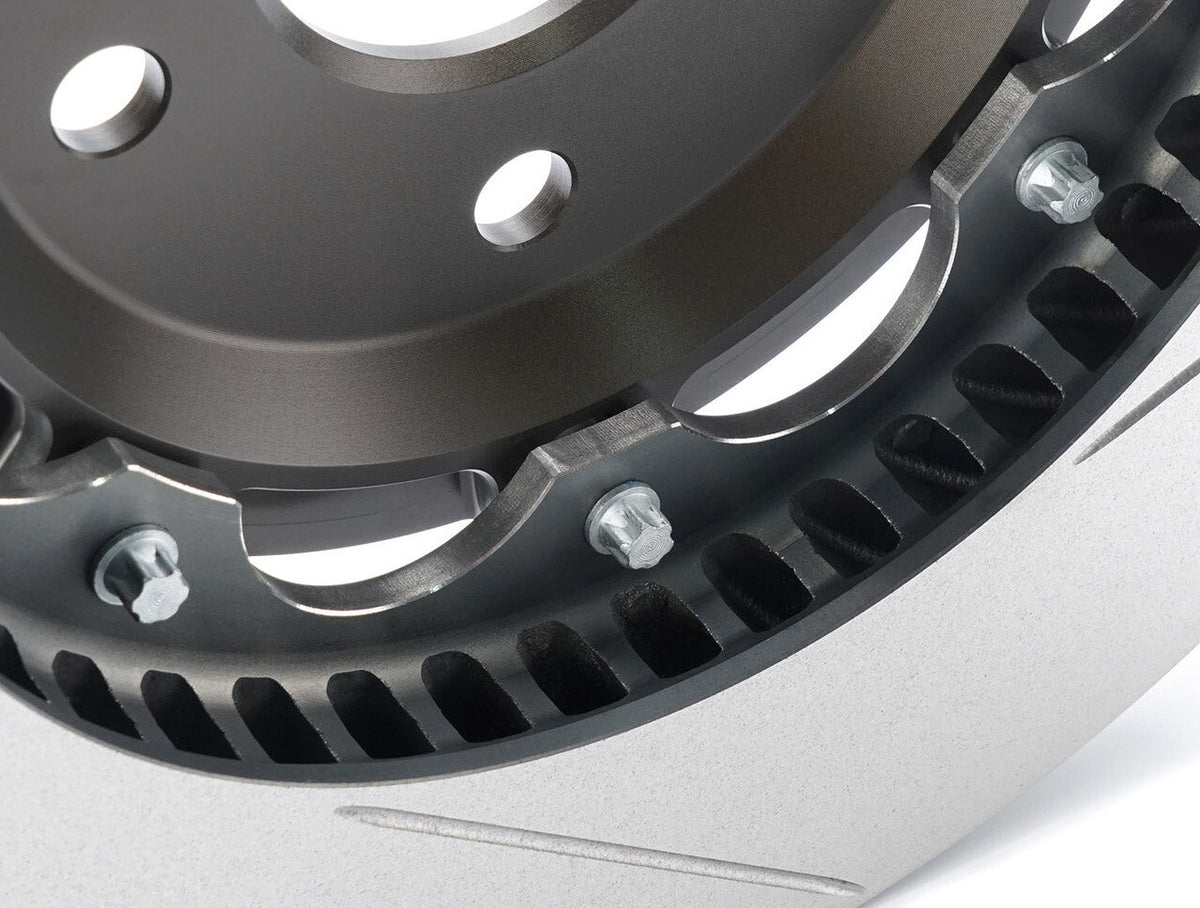

Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme track conditions, then black hard coat/hard anodized to increase resistance to wear and corrosion. Mil-spec Type III anodized hats will not discolor under extreme heat, and are harder and more wear/scratch resistant. Unnecessary materials are taken out from the aluminum hats for maximum weight savings while maintaining proper structural integrity.
*Black hard coat and hard coat anodized hats are the same in terms of performance and durability.

Direct bolt-on without any modifications and designed to work flawlessly with OEM ABS and brake system. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)

Directional ventilation vanes for optimal cooling performance, runs up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%

Fully-floating 2-piece design
Minimizing brake fade & judder during extended sessions
CNC machined steel caliper carriers to allow correct spacing with larger rotors
Rotor to hat mounting system: H-Bobbin (8 bolt)
Weighs 14.26 lbs (6.47 kg) - vs. OEM 15.1 lbs (save unsprung weight while utilizing larger rotors)
Larger rotor size 350mm x 22mm - vs. OEM 310mm x 22mm

***Fits RS8 (8V), and TT S / TT RS (8S/8S.5)

Direct replacement of: OEM part number 1K0615601N / 5Q0615601E

Includes:
One pair of Paragon Performance 350mm x 22mm (13.78” x 0.87”) 2-piece rotor assemblies with black hard coat/hard anodized 6061-T6 aerospace grade aluminum hats, stainless steel bobbins, and anti-rattle clips (assembled and ready to install)
One pair of CNC machined steel caliper carriers (red/black)
Detailed installation manual

Part # (w/ black hard anodized hat): P2R.009.350.220.22200.04.01.01.R

Specifications:

• Diameter: 350mm (13.78")
• Thickness (new): 22mm (0.87")
• Thickness (min.): 20mm (0.79")
• Type: 2-piece floating
• Face Pattern: Slotted
• Vented / Solid: Directional ventilated
• Number of Vanes: 48
• Hat Material: 6061-T6 aluminum
• Friction Ring Material: CM-250 high carbon alloy cast iron
• Rotor Finish: CBN turned
• Weight (per rotor): 14.26 lbs (6.47 kg)


Cross Reference:

• OEM Audi  1K0615601N / 5Q0615601E
• Brembo  09.A200.11 / 09.A200.1X
• EBC  D1416
• Centric/Stoptech  128.33113L / 127.33113R / 126.33113SL / 126.33113SR
• Girodisc  A2-179
• DBA  2809E

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
