Öhlins Road & Track Coilovers – Toyota Supra A90 & BMW Z4 G29

Öhlins Road & Track Coilovers – Toyota Supra A90 & BMW Z4 G29

Part Number: TOS MU00S1 | Fitment: Toyota Supra A90 & BMW Z4 G29 (incl. RWD & xDrive AWD)

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with ~20mm drop, this kit is engineered for the shared A90/G29 platform. Springs are included.

⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.

---

Vehicle Fitment

Toyota Supra	A90 — 2019+
BMW Z4	G29 — incl. RWD & xDrive AWD — 2019+

---

Technical Specifications

Part Number	TOS MU00S1
Technology	DFV — Dual Flow Valve
Front Damper Type	McPherson strut
Rear Damper Type	Conventional shock absorber
Damping Adjustment	Single bleed adjuster (front & rear)
Front Spring Rate	90 N/mm (Part No. 48010-27) — included
Rear Spring Rate	160 N/mm (Part No. 48010-55) — included
Lowering Range	Approx. 20mm below standard (front & rear)
Top Mounts	Use with original top mounts (front & rear)
Springs	Included
Rebuildable	Yes
Corrosion Testing	ISO 9227 salt spray tested
Warranty	2-year limited warranty

---

Included Springs

Position	Part No	Spring Rate
Front	48010-27	90 N/mm
Rear	48010-55	160 N/mm

---

Cancellation Kit (if required)

For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.

Part No	Description
35020-30	Cancellation kit

---

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Springs included

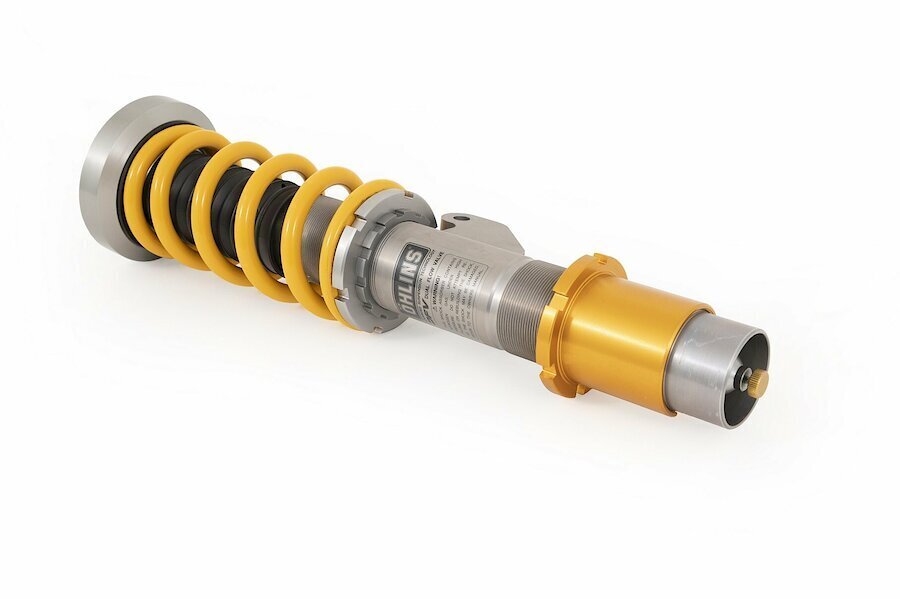

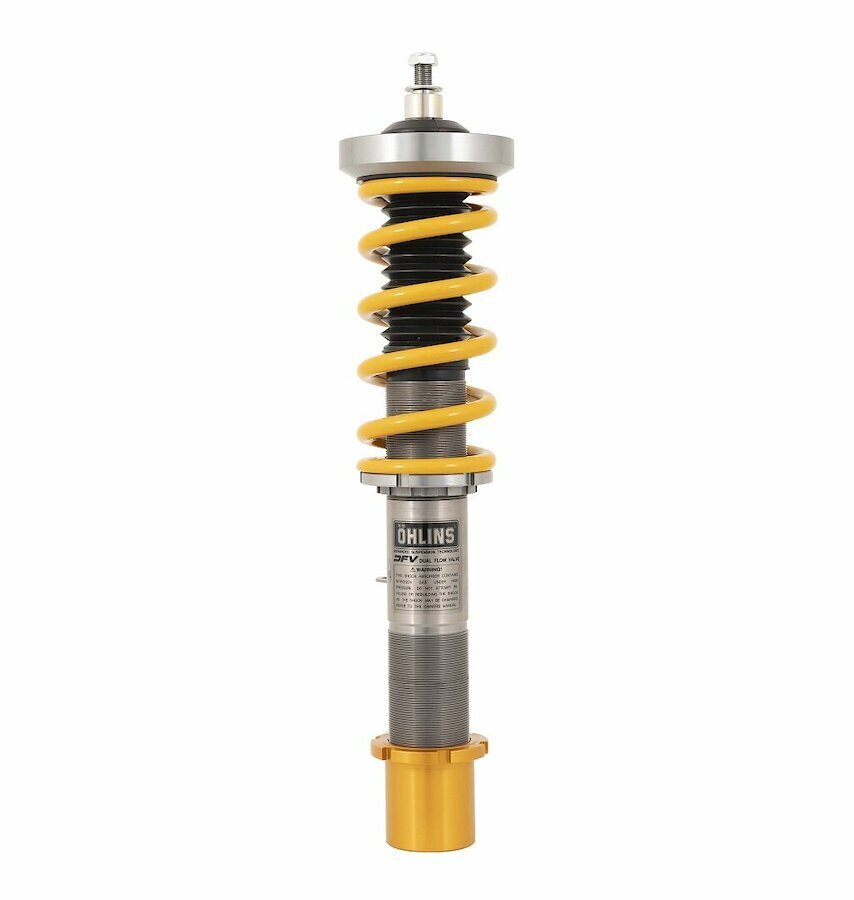

Front Features

• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 20mm lower than standard
• Coil springs 90 N/mm — included (Part No. 48010-27)
• Use with original top mounts

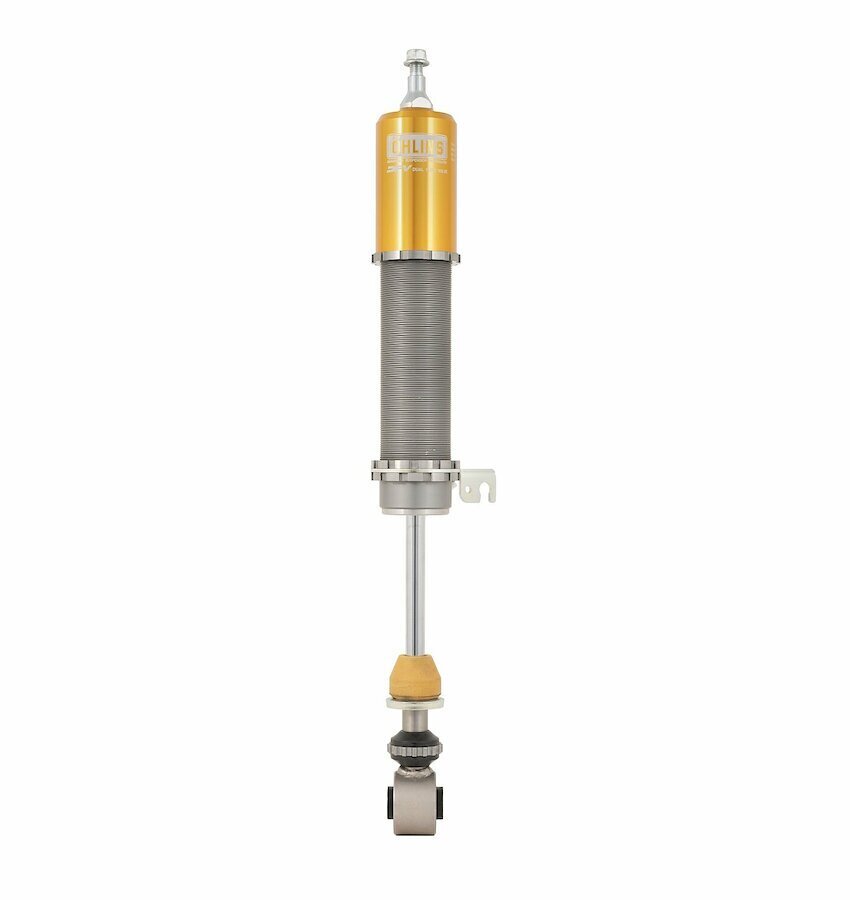

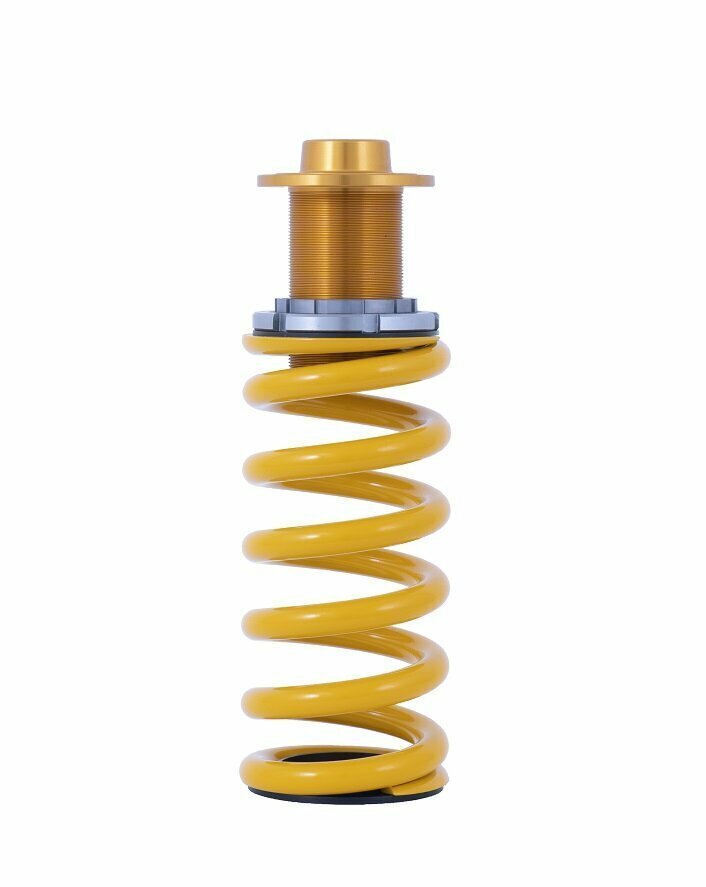

Rear Features

• Conventional shock absorber
• Single bleed adjuster
• Separate spring preload adjuster
• Height adjustable — approx. 20mm lower than standard
• Coil springs 160 N/mm — included (Part No. 48010-55)
• Use with original top mounts

---

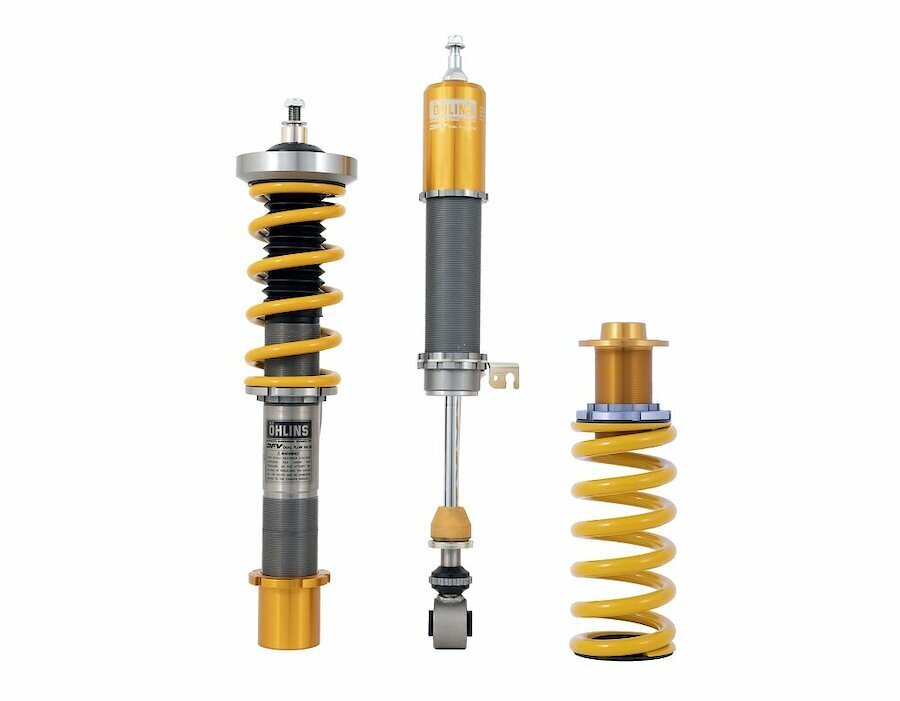

Kit Contents

• Coilover damper kit
• Front coil springs — 90 N/mm (Part No. 48010-27)
• Rear coil springs — 160 N/mm (Part No. 48010-55)
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions

---

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

---

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Shared A90/G29 platform fitment — suits Toyota Supra & BMW Z4 (RWD & AWD)
• ✅ Precision ride height adjustment — spring geometry is never compromised
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
