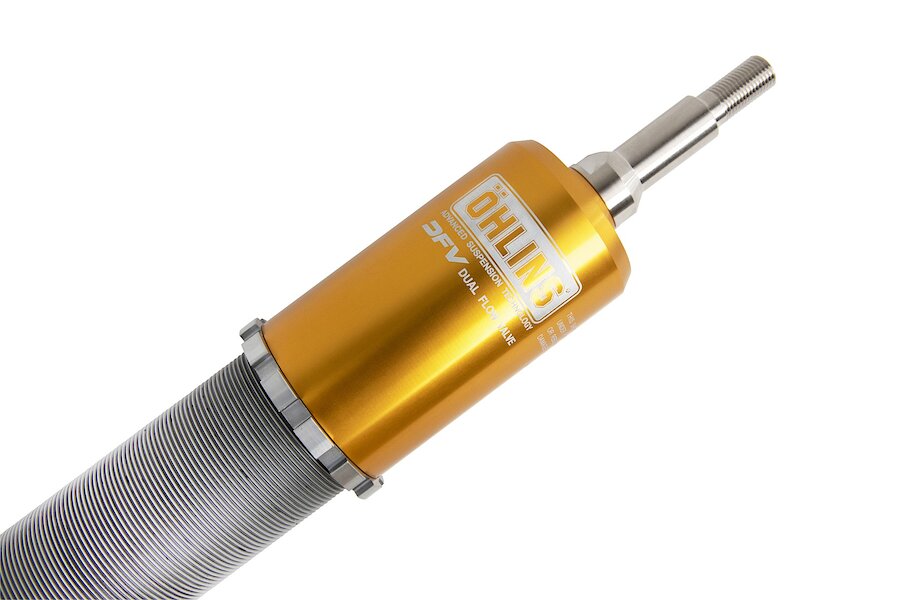

Öhlins Road & Track Coilovers – Toyota GR Yaris XPA16R Gen 1 (Pre-Facelift)
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Toyota GR Yaris XPA16R Gen 1 (Pre-Facelift)
Part Number: TOS MW00S1 | Chassis: XPA16R | Fitment: Toyota GR Yaris Gen 1 (Pre-Facelift) 2020+
⚠️ Fits Gen 1 Pre-Facelift Toyota GR Yaris (XPA16R) only. Not compatible with the facelift model.
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson upside-down front strut and conventional rear shock, with a wide -5 to -30mm lowering range and 80 N/mm spring rates front and rear. Complete suspension kit with springs and accessories included.
Vehicle Fitment
| Toyota GR Yaris | XPA16R — Gen 1 Pre-Facelift — 2020+ |
Technical Specifications
| Part Number | TOS MW00S1 |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut — upside-down |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 80 N/mm — included |
| Rear Spring Rate | 80 N/mm — included |
| Lowering Range | Approx. −5mm to −30mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — complete kit with springs & accessories |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual height adjustment — −5mm to −30mm range
- Single bleed adjuster — compression and rebound
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Complete kit with springs and accessories included
Front Features

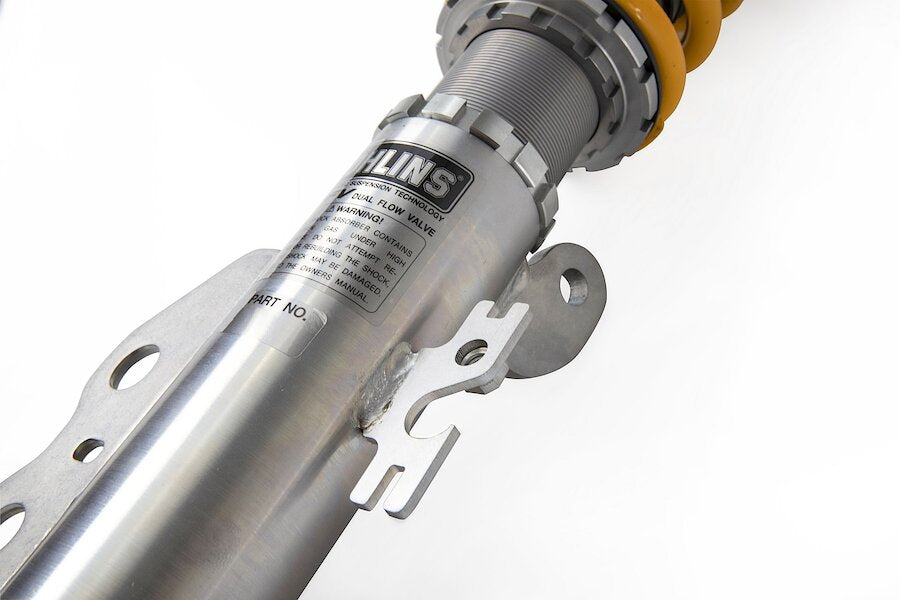

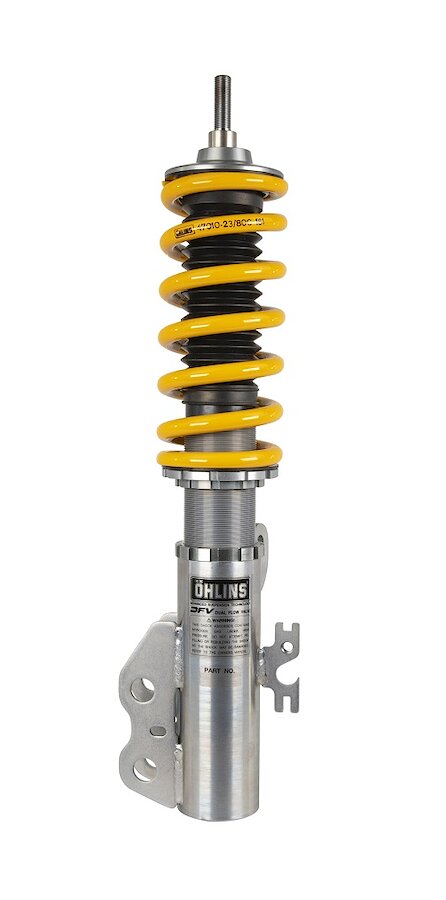

- McPherson strut — upside-down design
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. −5mm to −30mm below standard

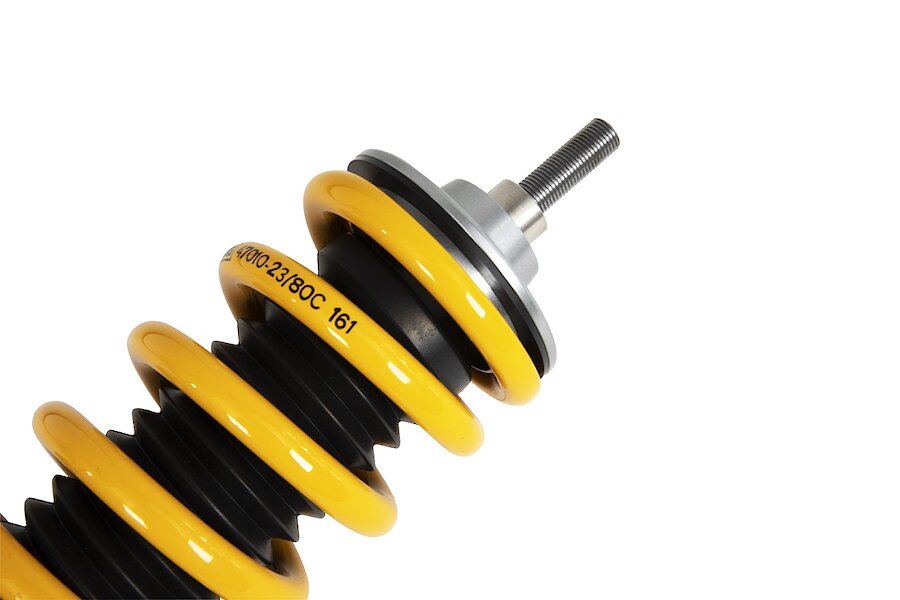

- Coil springs included (80 N/mm)
- Use with original top mounts
Rear Features

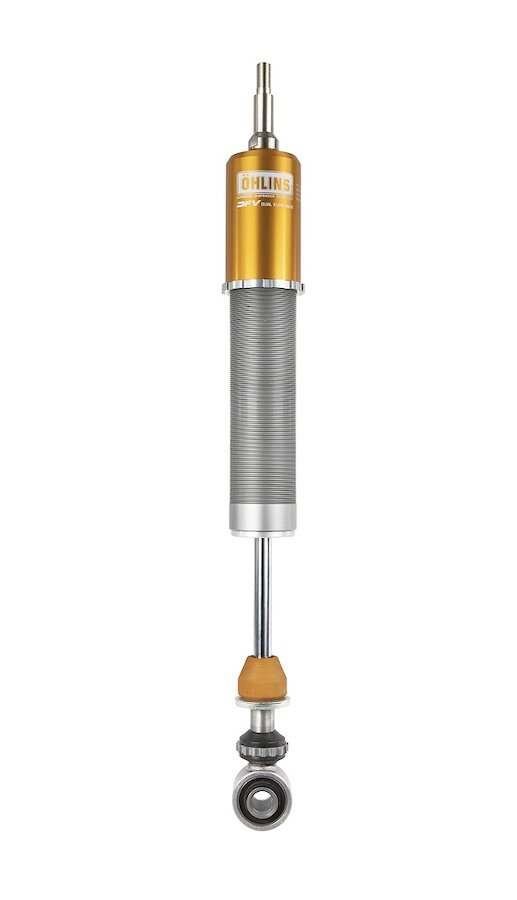

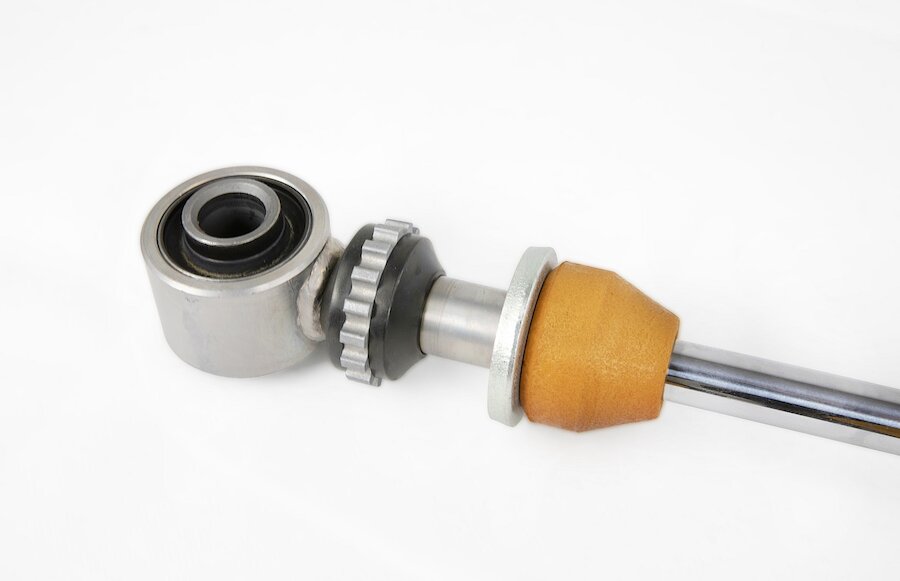

- Conventional shock absorber
- Single bleed adjuster

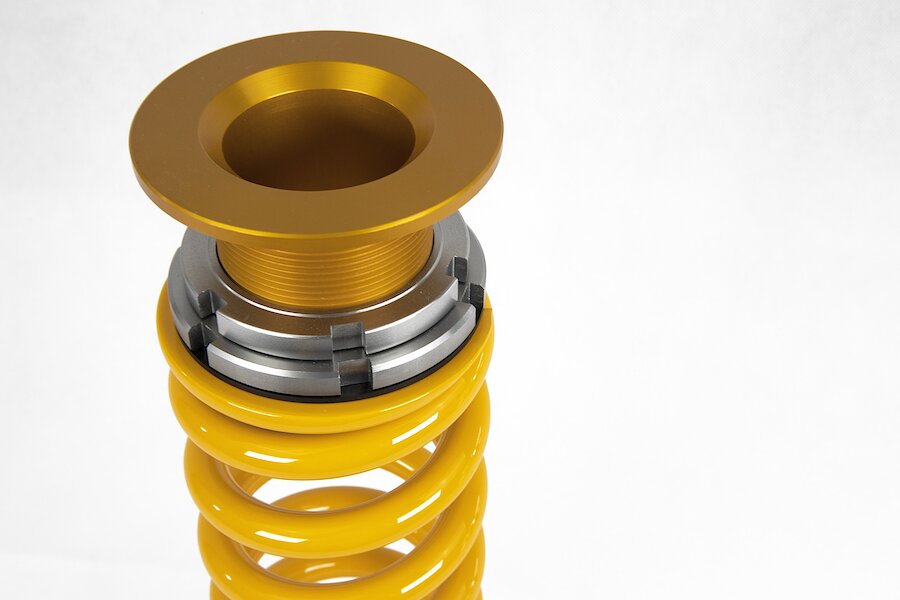

- Separate spring preload adjuster
- Height adjustable — approx. −5mm to −30mm below standard

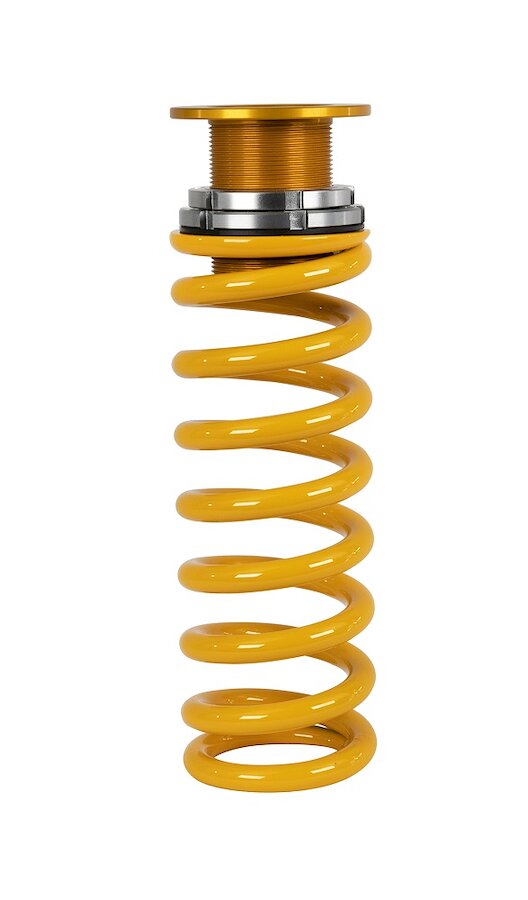

- Coil springs included (80 N/mm)
- Use with original top mounts

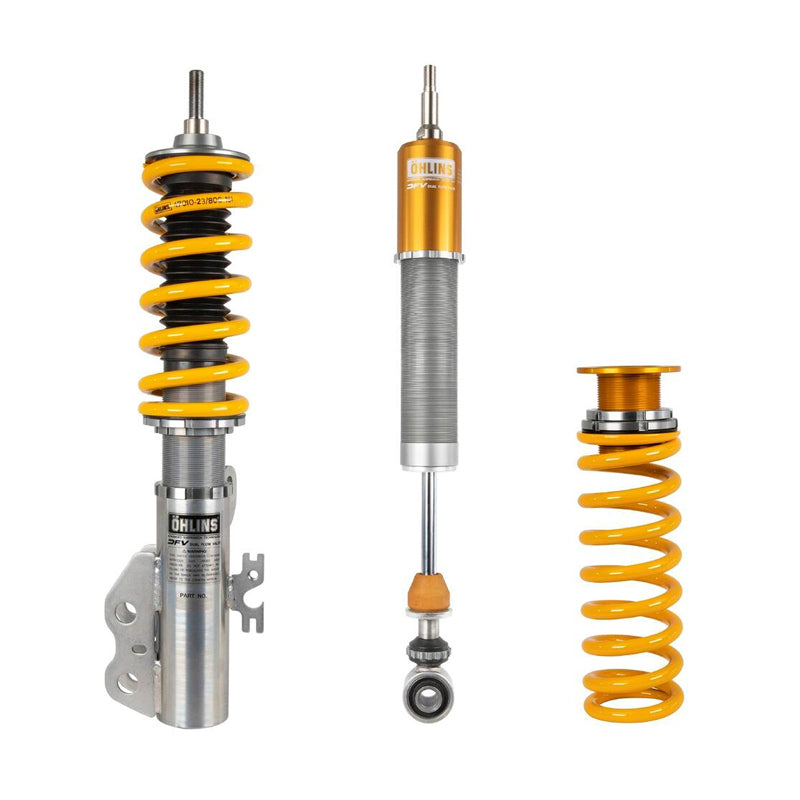

Kit Contents
- Complete coilover kit including springs and all mounting parts
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Upside-down McPherson front strut — reduced unsprung mass, sharper response
- ✅ Wide −5 to −30mm lowering range — street and track flexibility
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
