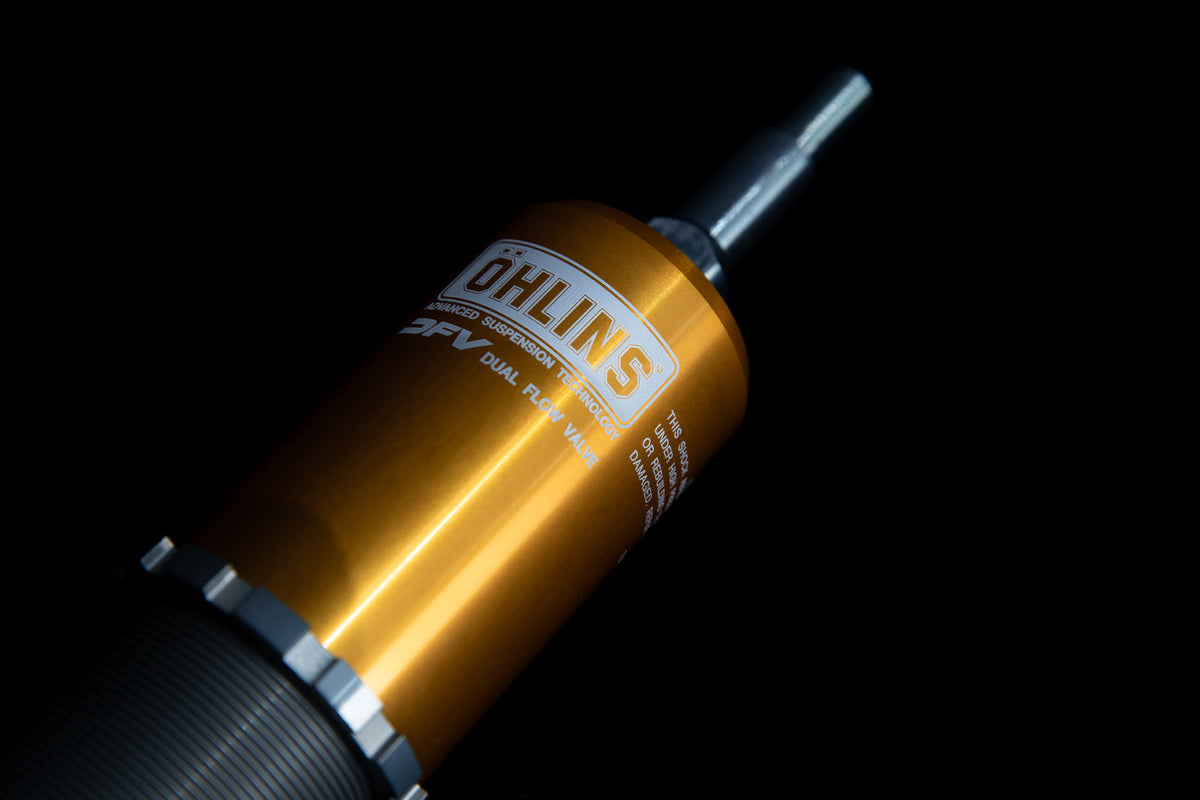

Öhlins Road & Track Coilovers – Toyota GR Corolla (2023+)
Part Number: TOS MX00S1 | Fitment: Toyota GR Corolla 2023+
Engineered specifically for the Toyota GR Corolla, the Öhlins Road & Track kit brings legendary suspension expertise to one of the most exciting hot hatches on the market. Built on Öhlins' proprietary Dual Flow Valve (DFV) technology with a 1-way 25-click compression and rebound adjuster, this kit lets you effortlessly fine-tune your GR Corolla's suspension to match your driving style — from daily commuting to full track attack.
The kit is supplied as a complete car set from the factory with springs included. No cancellation kit is required, and the kit uses OE top mounts for a clean, direct fitment.
Vehicle Fitment
| Toyota GR Corolla | 2023 to present |
Technical Specifications
| Part Number | TOS MX00S1 |
| Technology | DFV — Dual Flow Valve |
| Damping Adjustment | 1-way — 25-click compression & rebound adjuster |
| Front Damper Type | McPherson strut — monotube upside-down |
| Rear Damper Type | Aluminium monotube shock absorber |
| Front Spring Rate | 90 N/mm (Part No. 49180-27) — included |
| Rear Spring Rate | 90 N/mm (Part No. 47020-27) — included |
| Recommended Lowering | Approx. 25mm below standard (front & rear) |
| Top Mounts | Use with original OE top mounts |
| Cancellation Kit | Not required |
| Springs Included | Yes — complete car set supplied from factory |
| Rebuildable | Yes — rebuildable for custom tuning |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
Included Springs
| Position | Part No | Spring Rate |
|---|---|---|
| Front | 49180-27 | 90 N/mm |
| Rear | 47020-27 | 90 N/mm |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- 1-way 25-click compression and rebound adjuster
- Individual height adjustment
- Rebuildable dampers for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year warranty

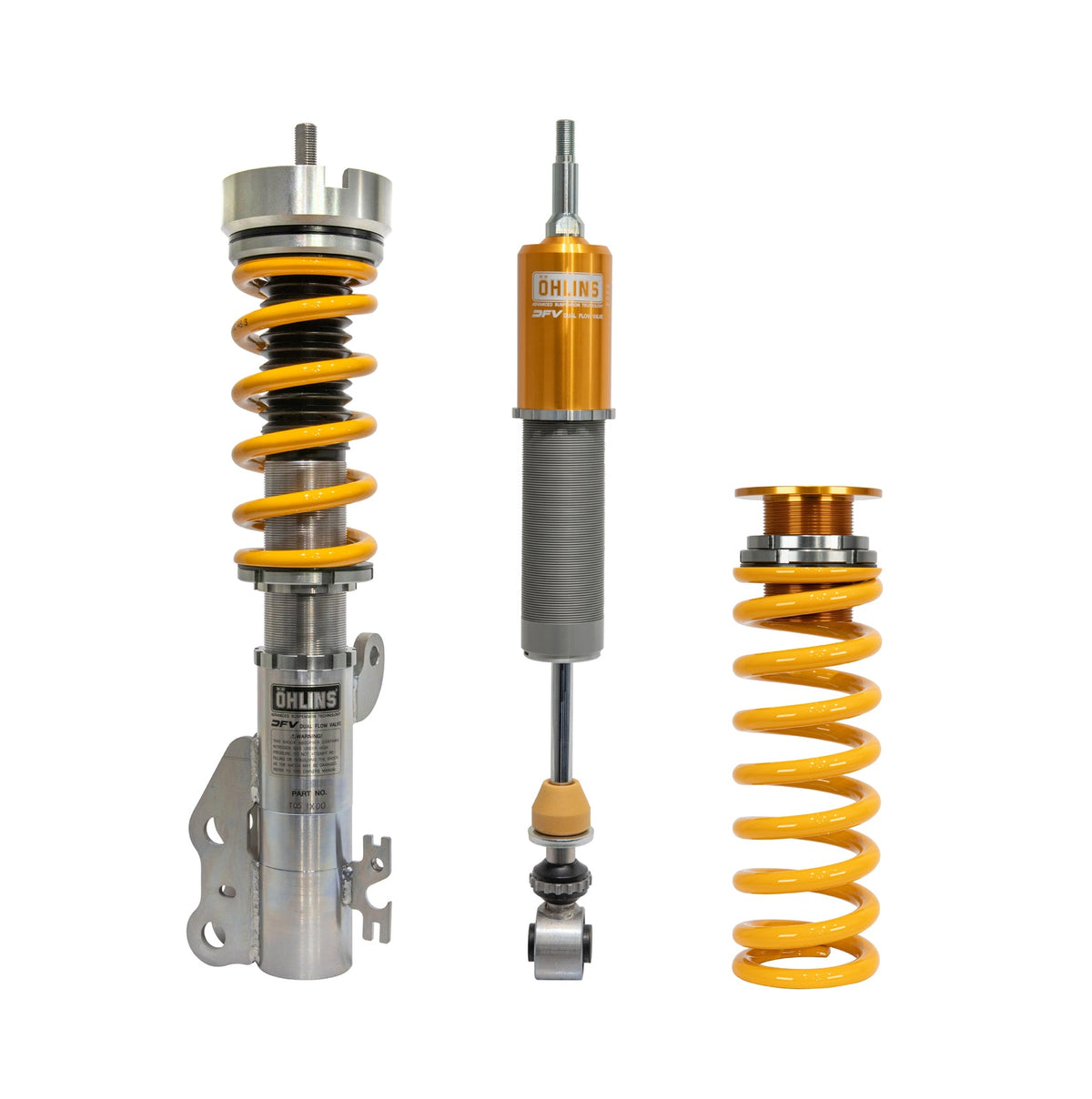

- Front & rear springs included — complete car set
Front Features

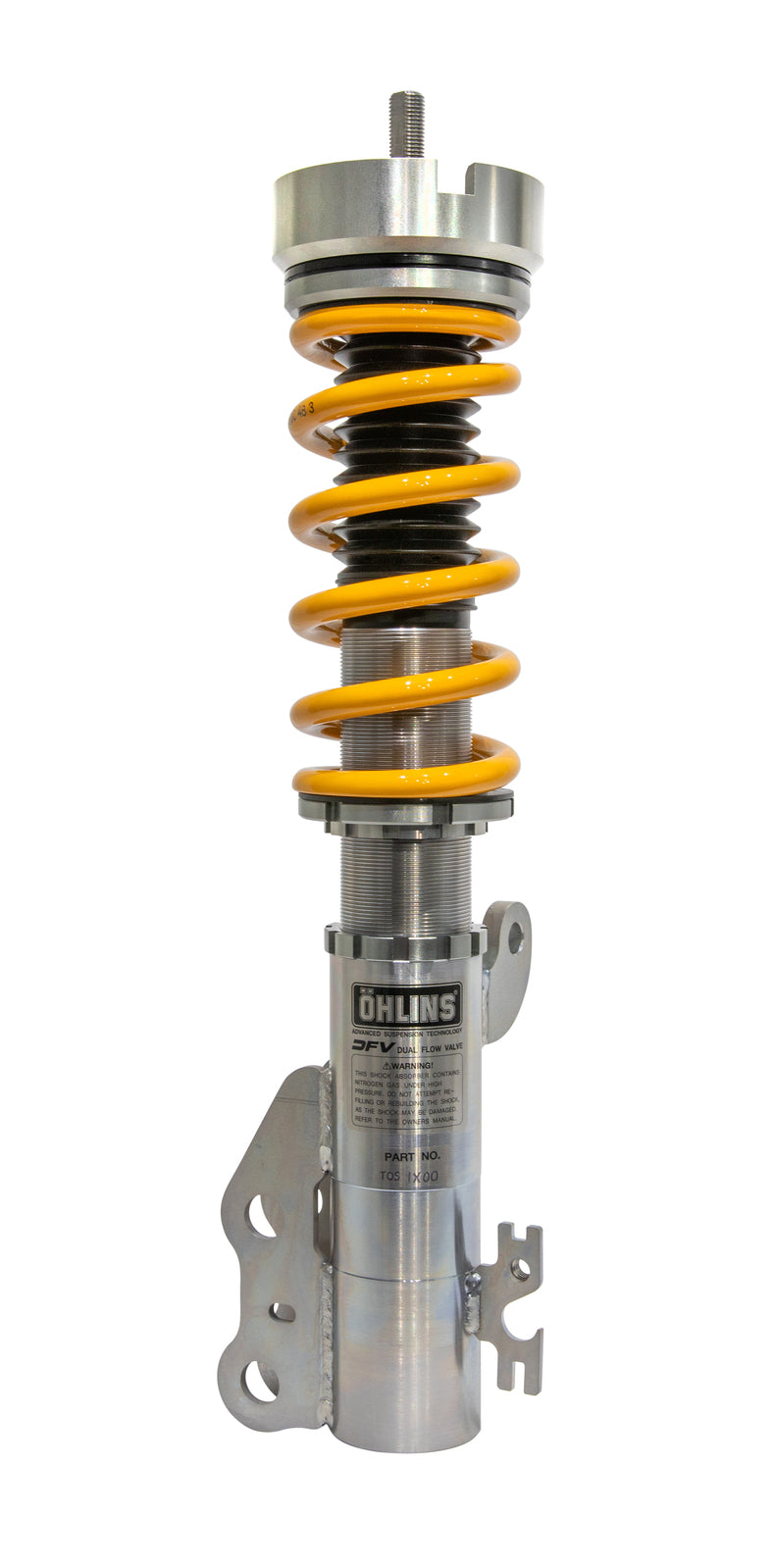

- McPherson strut — monotube upside-down technology
- Spring preload adjuster
- Height adjustable — 25mm lower than standard is our recommended ride height
- Spring rate 90 N/mm — included
- Use with original top mounts
Rear Features

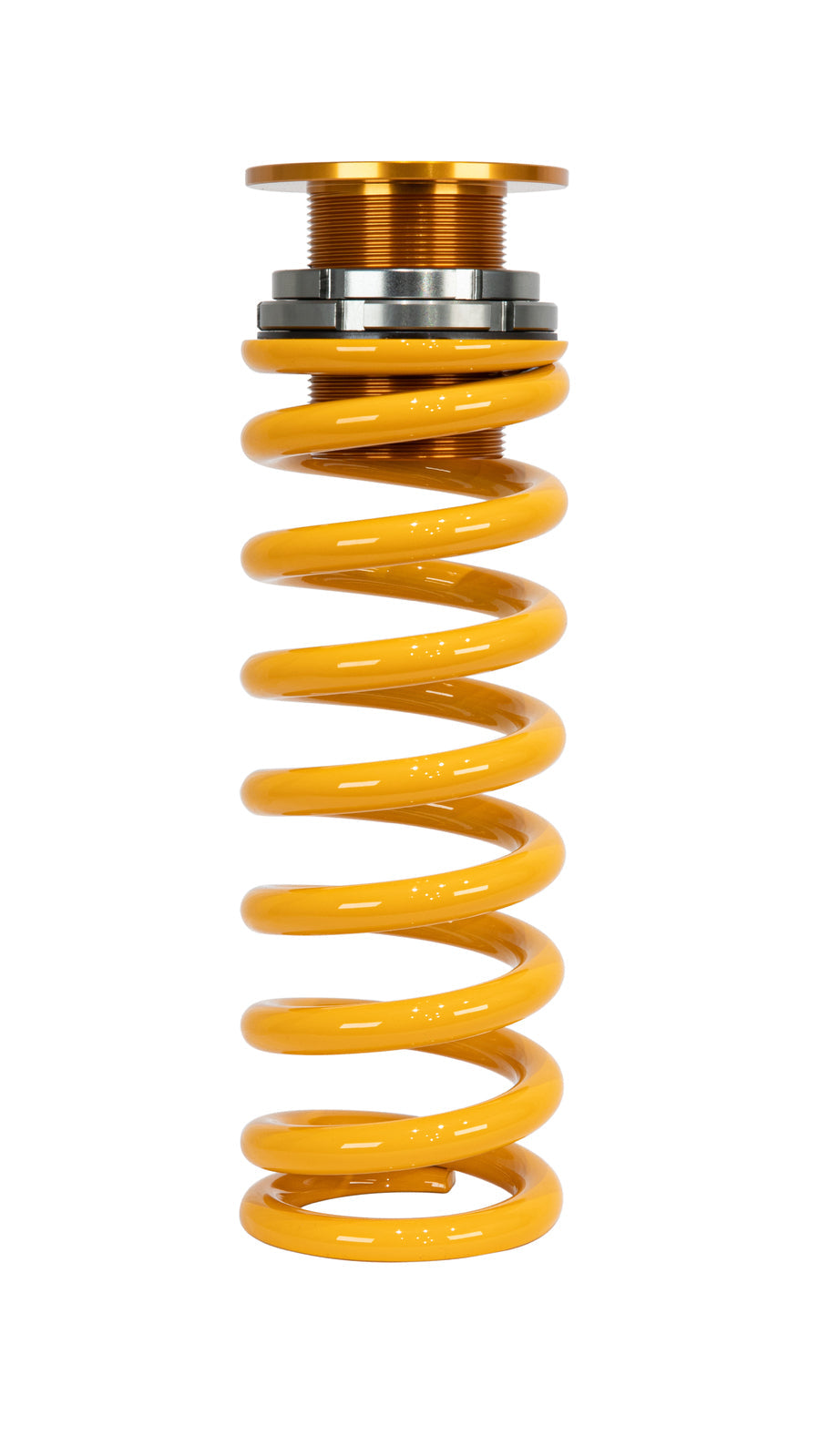

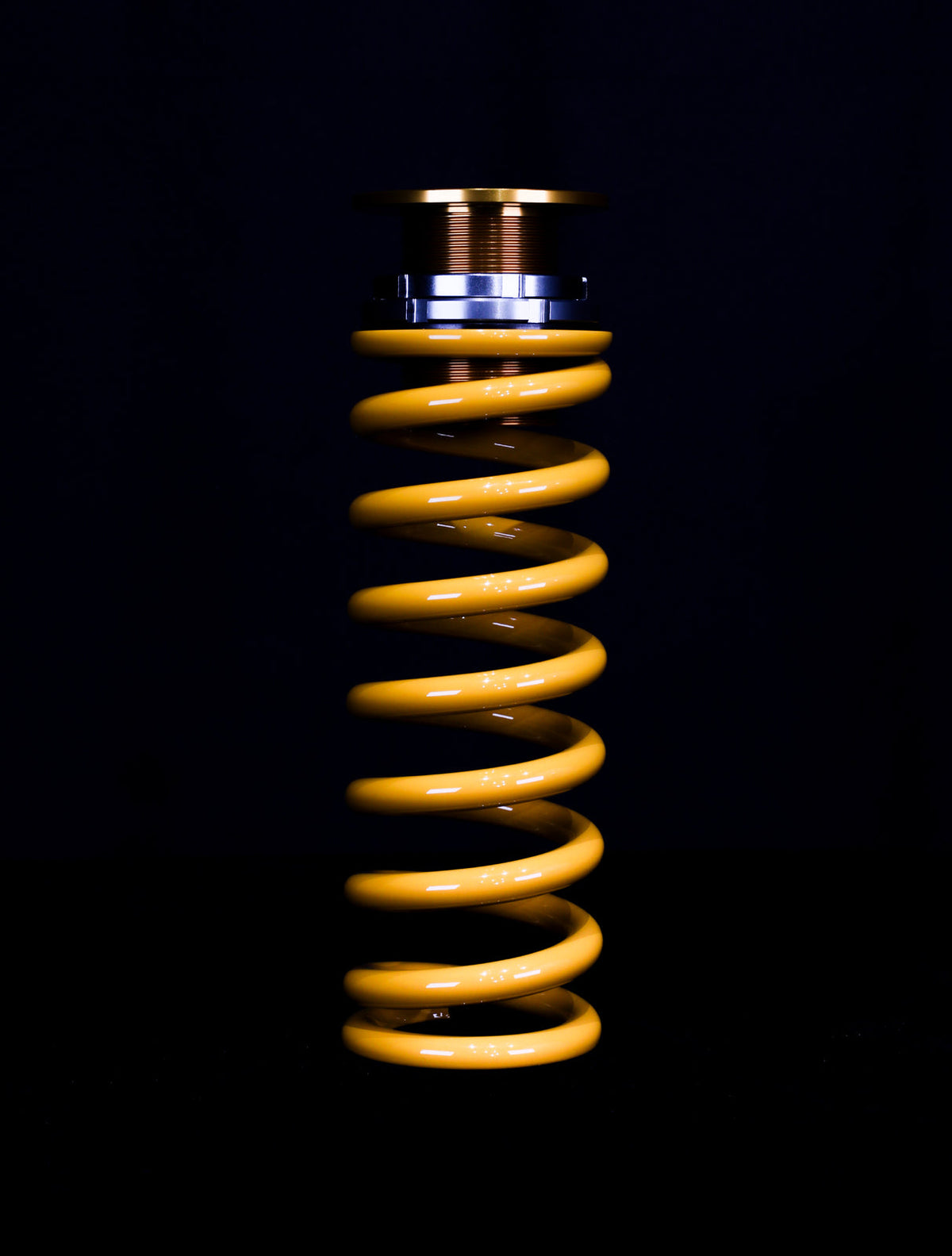

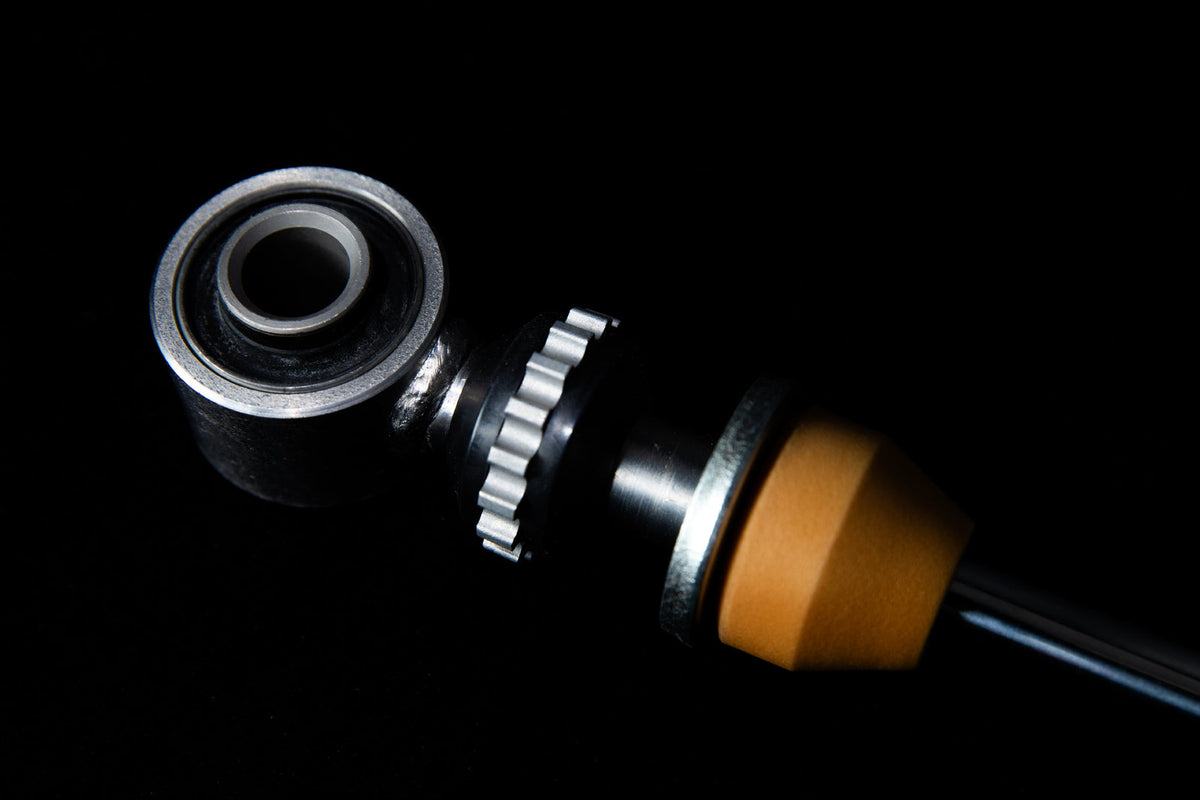

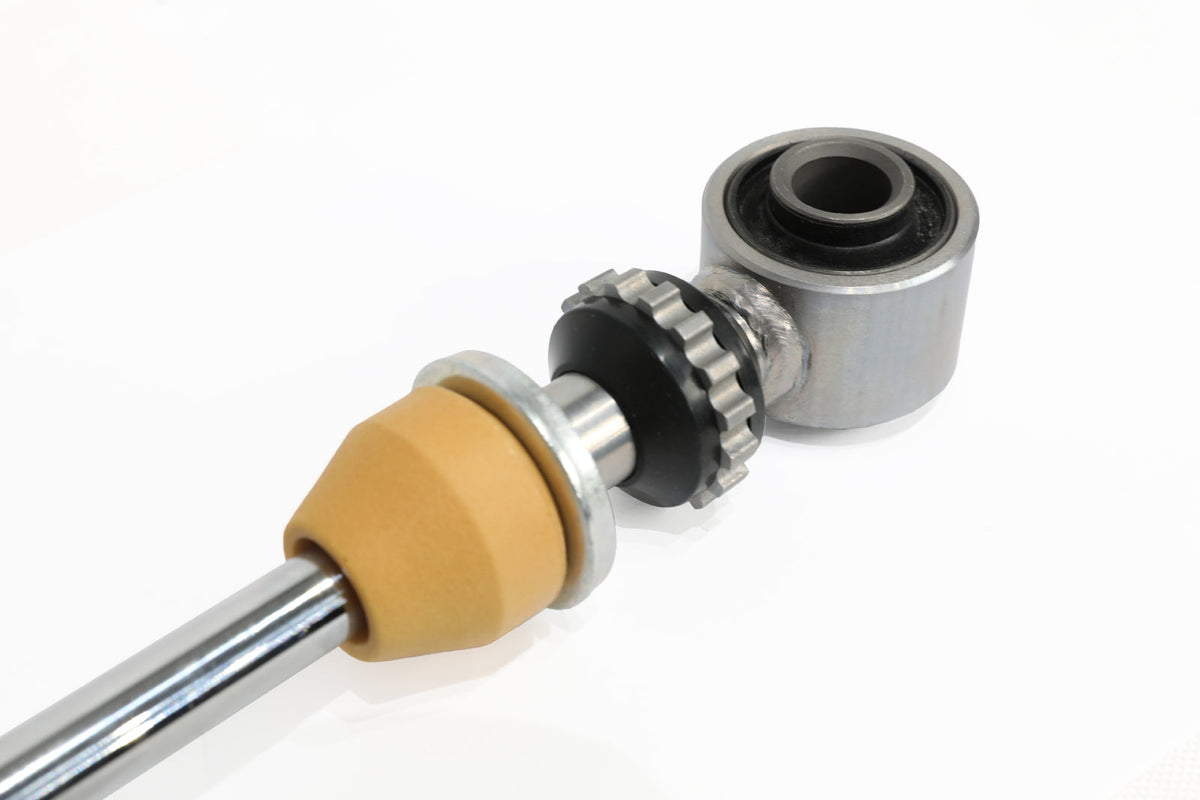

- Aluminium monotube shock absorber
- Spring preload adjuster
- Separate damper length adjuster
- Height adjustable — 25mm lower than standard is our recommended ride height
- Spring rate 90 N/mm — included
- Use with original top mounts

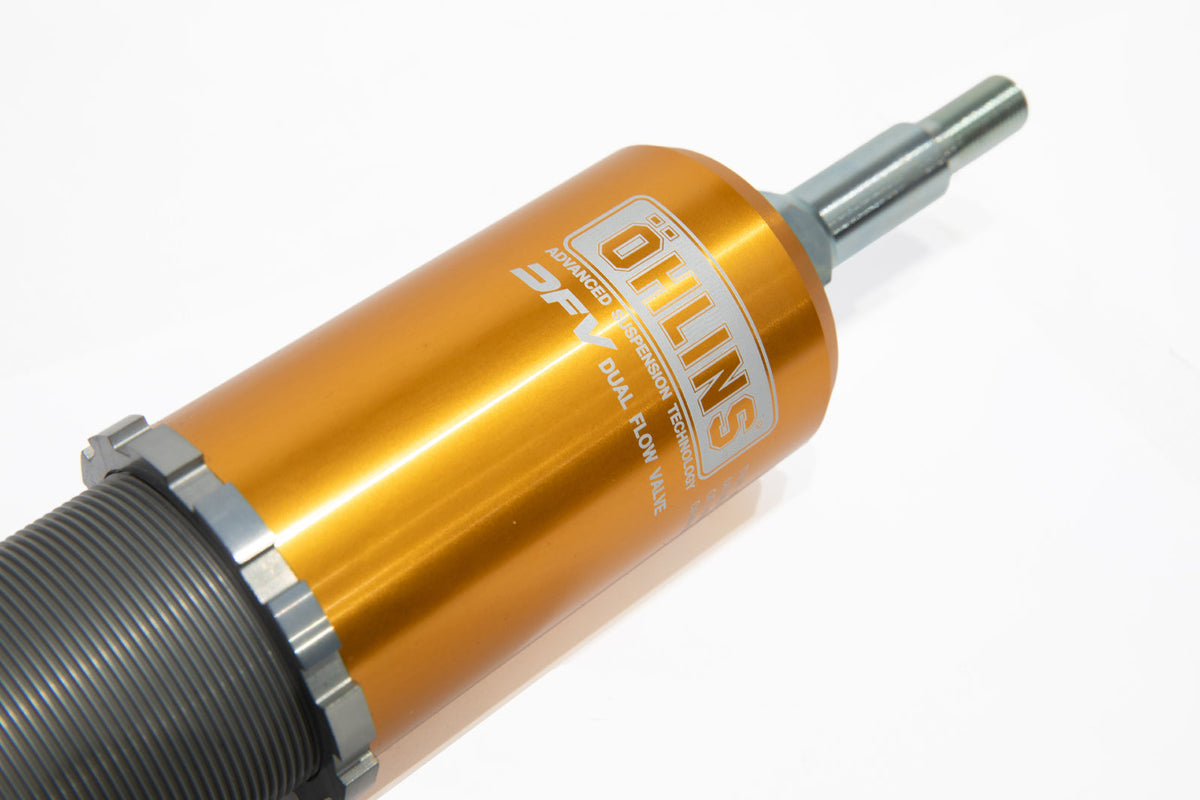

What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Monotube upside-down front strut — reduced unsprung mass, sharper response
- ✅ Complete car set supplied from factory — springs included, no cancellation kit required
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year warranty
