Öhlins Road & Track Coilovers for Subaru WRX VB 2022+
Tax included. Shipping calculated at checkout
Description

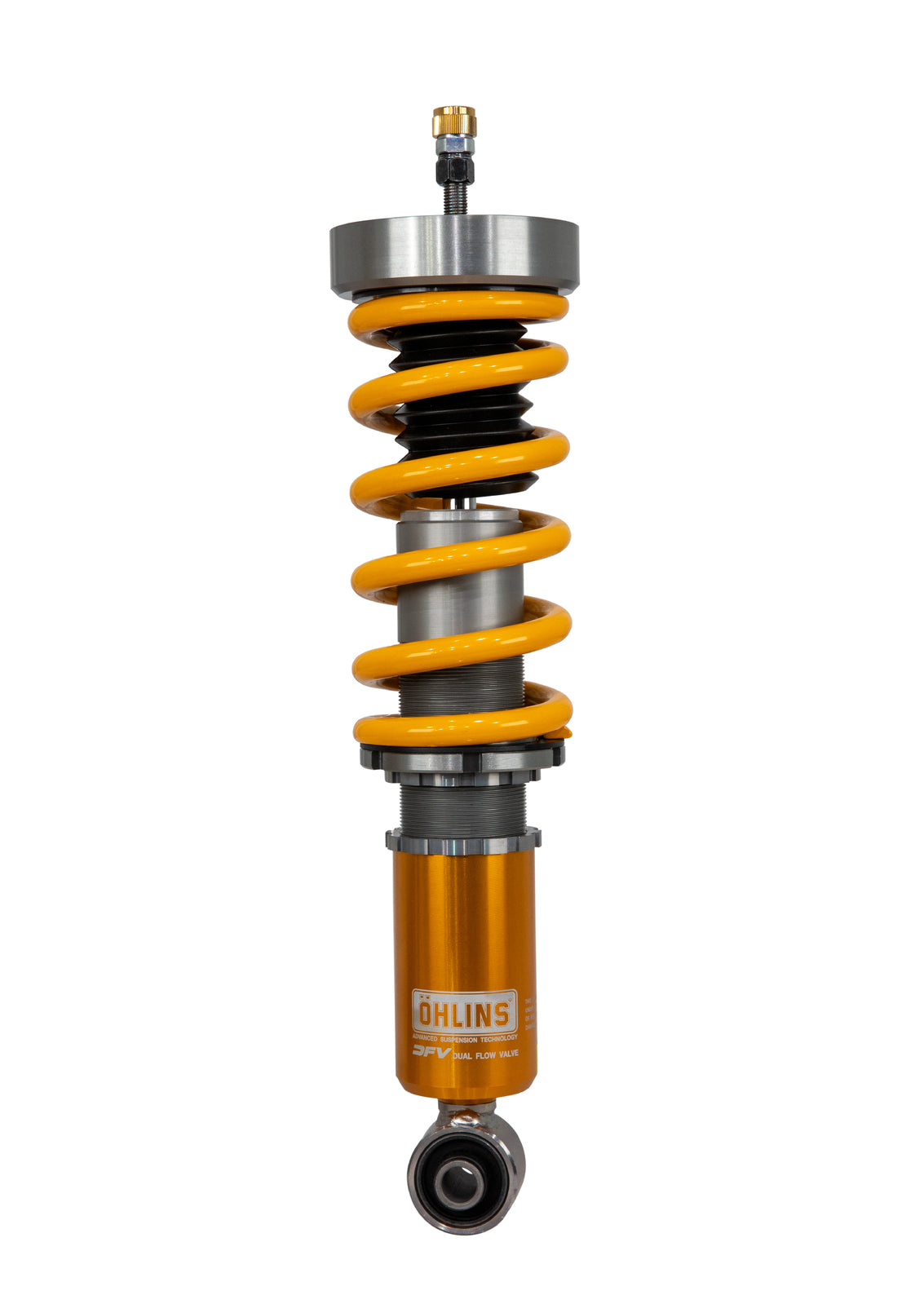

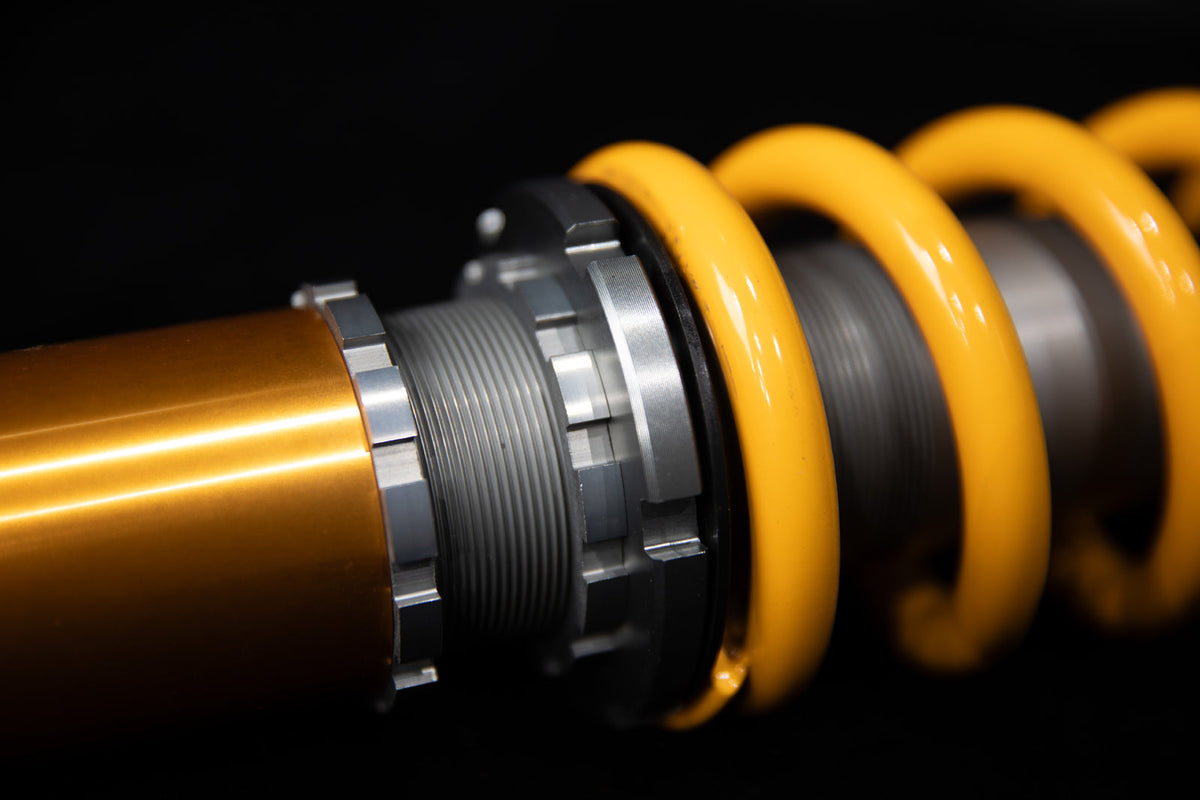

Öhlins Road & Track Coilovers – Subaru WRX VB (2022+)
Part Number: SUS MX00S1 | Chassis Code: VB | Fitment: Subaru WRX 2022+
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a 1-way 25-click compression and rebound adjuster, a wide 15–35mm lowering range, and monotube upside-down front strut technology, this kit unlocks the true potential of the Subaru WRX VB. Springs are included. Corrosion-tested to ISO 9227 and backed by a 2-year limited warranty.
Technical Specifications
| Part Number | SUS MX00S1 |
| Technology | DFV — Dual Flow Valve |
| Damping Adjustment | 1-way — 25-click compression & rebound adjuster |
| Front Damper Type | McPherson strut — monotube upside-down |
| Rear Damper Type | Aluminium monotube shock absorber |
| Front Spring Rate | 90 N/mm — included |
| Rear Spring Rate | 90 N/mm — included |
| Lowering Range | Approx. 15–35mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Rebuildable | Yes — rebuildable for custom tuning |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |

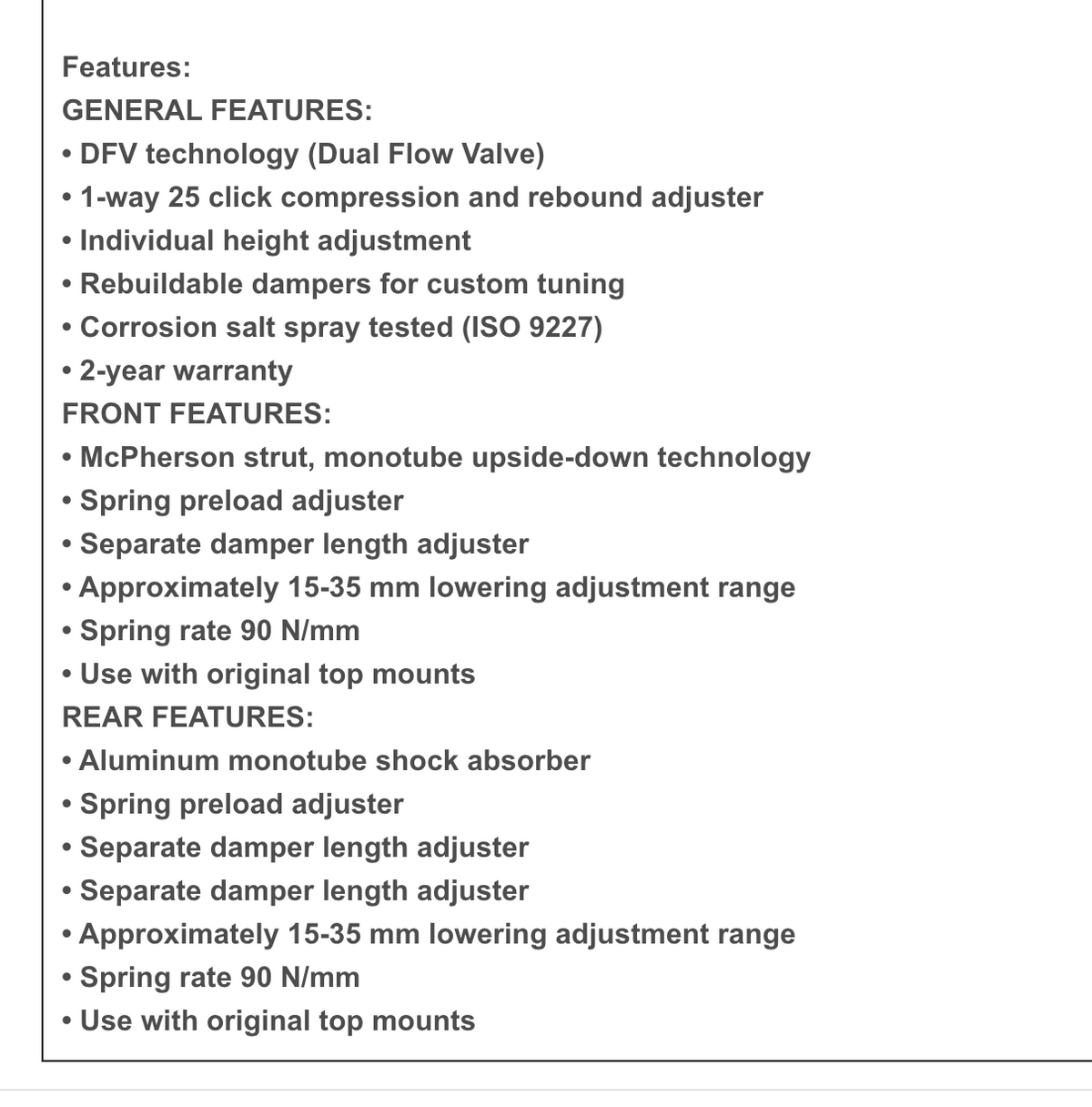

General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- 1-way 25-click compression and rebound adjuster
- Individual height adjustment
- Rebuildable dampers for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Front & rear springs included
Front Features
- McPherson strut — monotube upside-down technology
- Spring preload adjuster
- Separate damper length adjuster
- Height adjustable — approx. 15–35mm lowering adjustment range
- Spring rate 90 N/mm — included
- Use with original top mounts
Rear Features

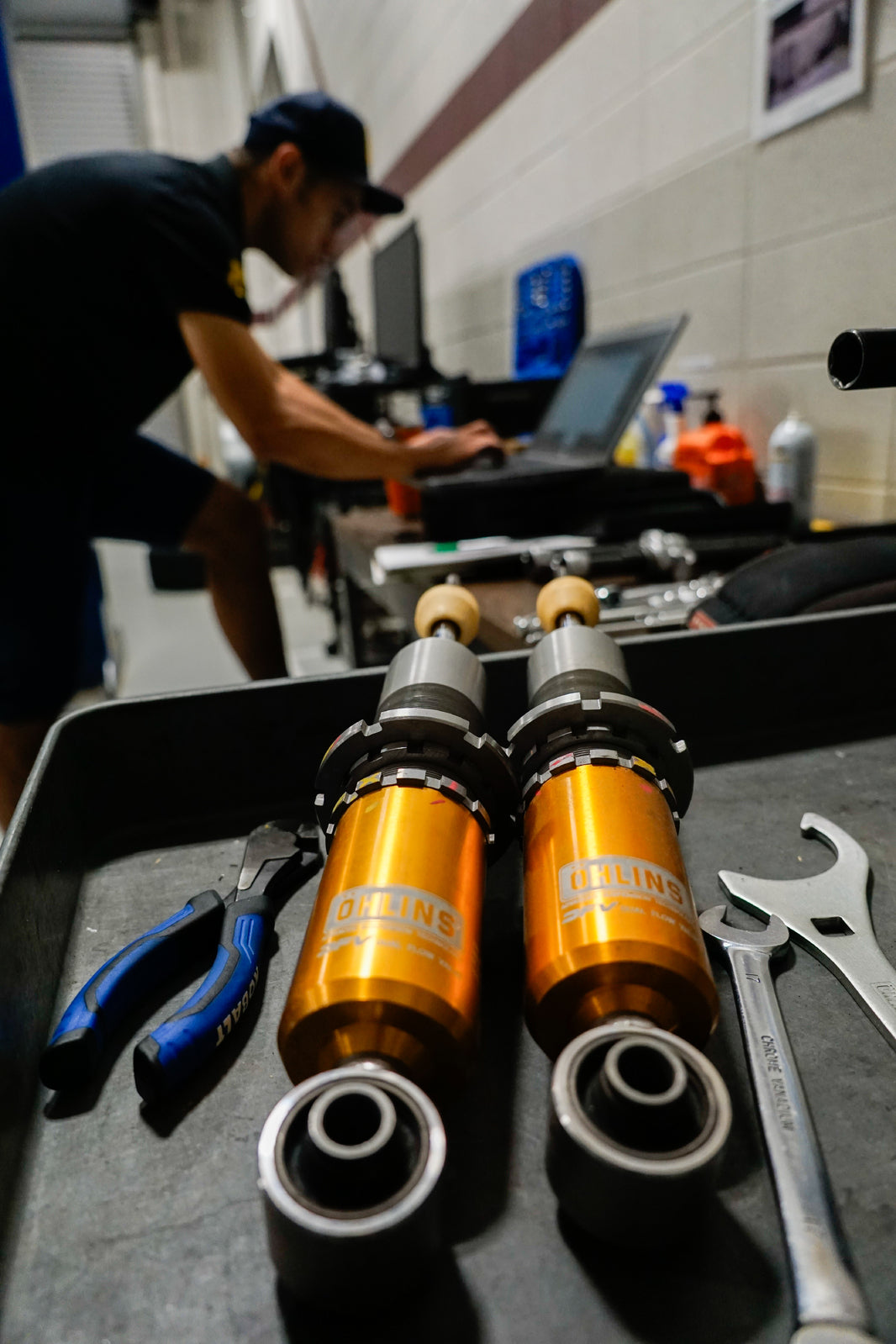

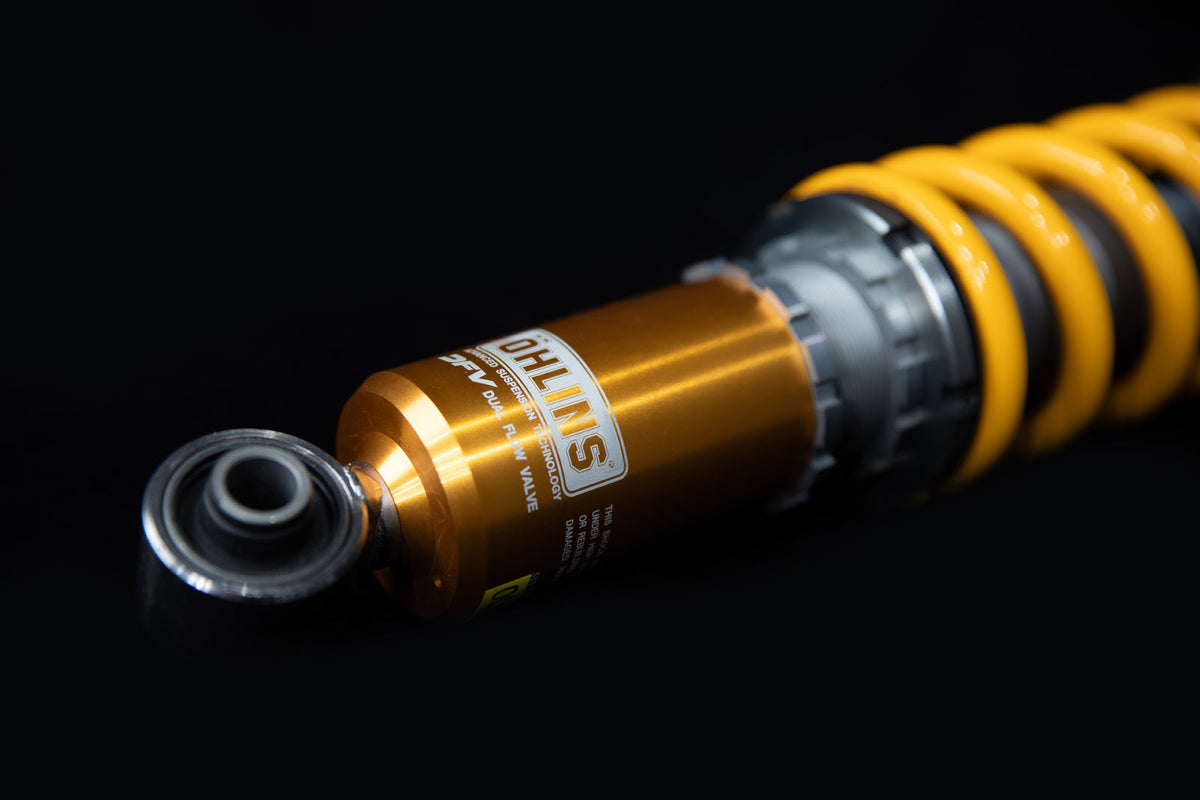

- Aluminium monotube shock absorber
- Spring preload adjuster
- Separate damper length adjuster
- Height adjustable — approx. 15–35mm lowering adjustment range
- Spring rate 90 N/mm — included
- Use with original top mounts
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Monotube upside-down front strut — reduced unsprung mass, sharper response
- ✅ Wide 15–35mm lowering range via separate length adjuster — front & rear
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
Vehicle Fitment
| Subaru WRX | VB chassis — 2022 to present |
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

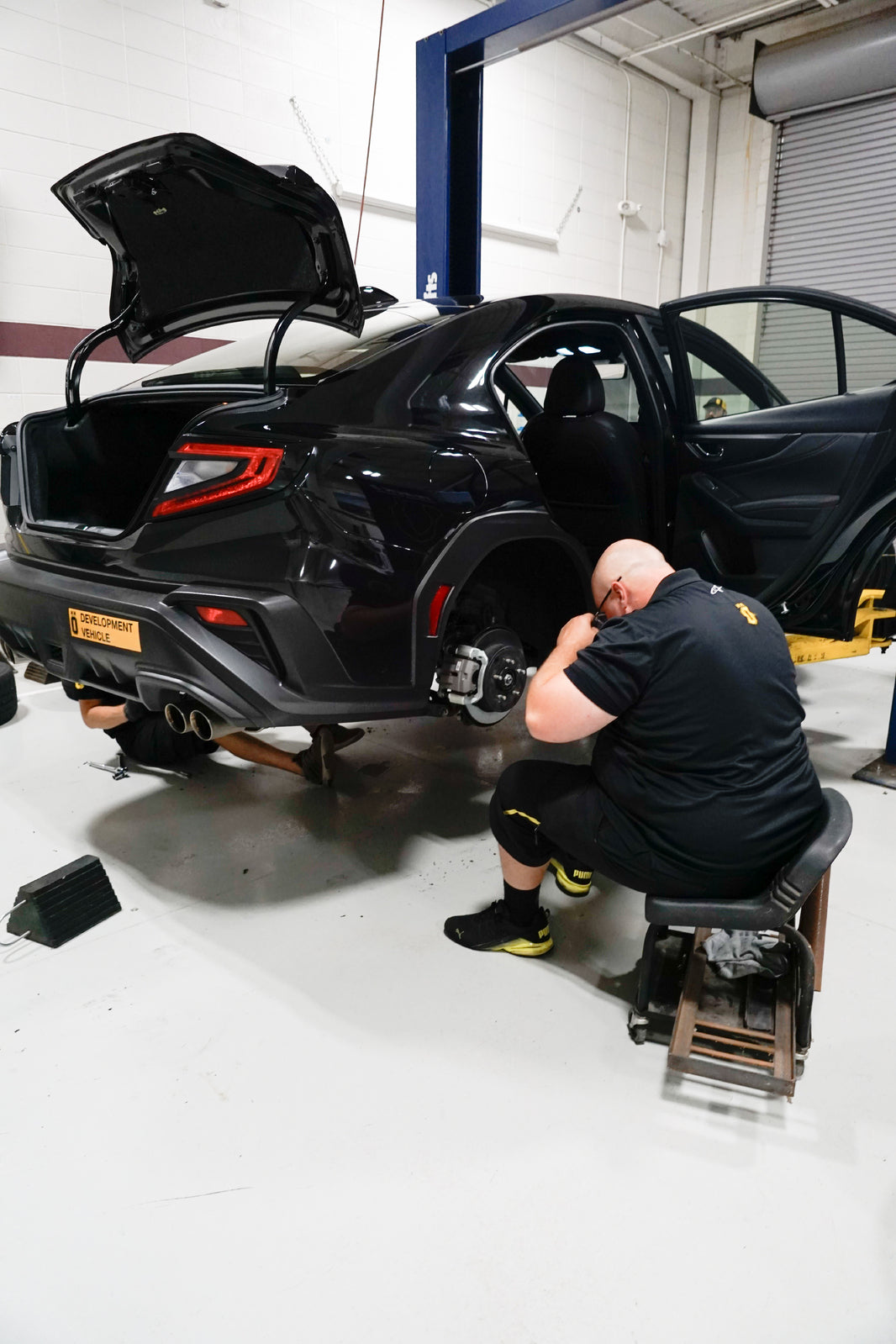

Installation
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
