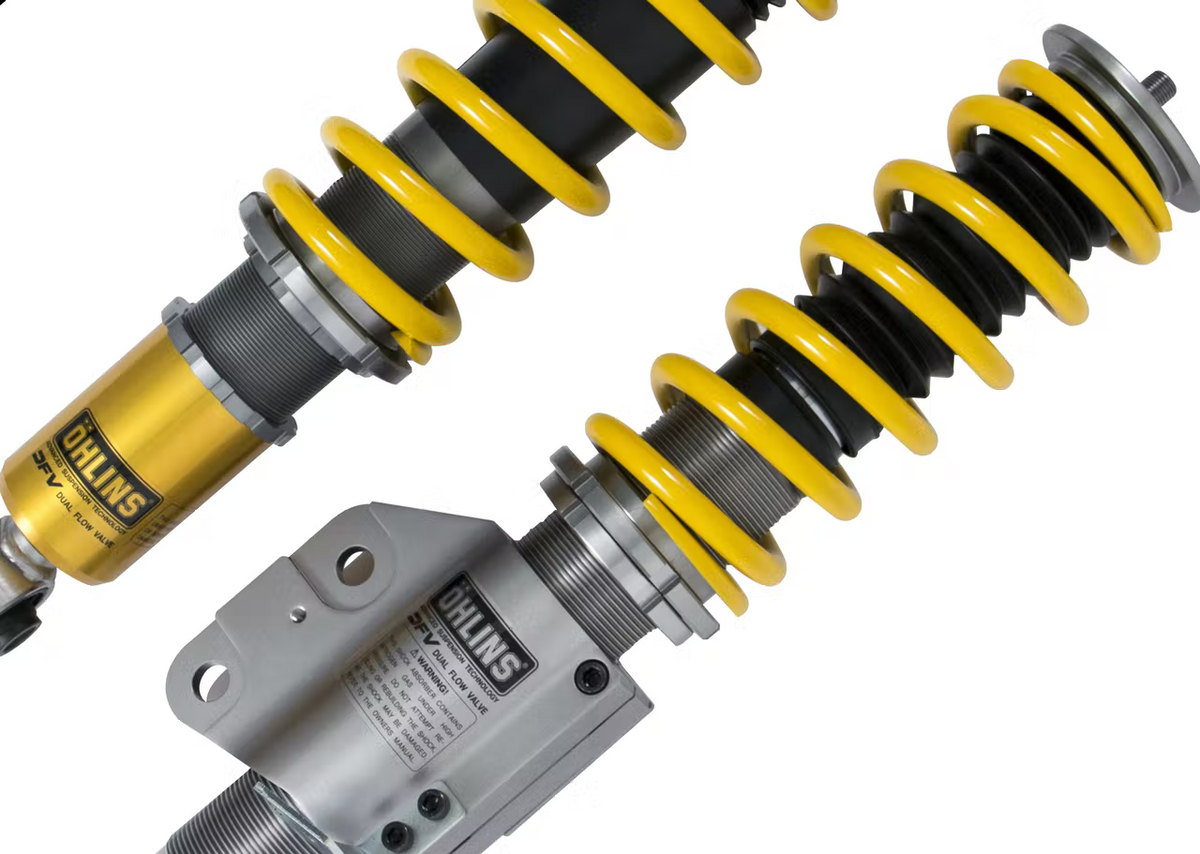

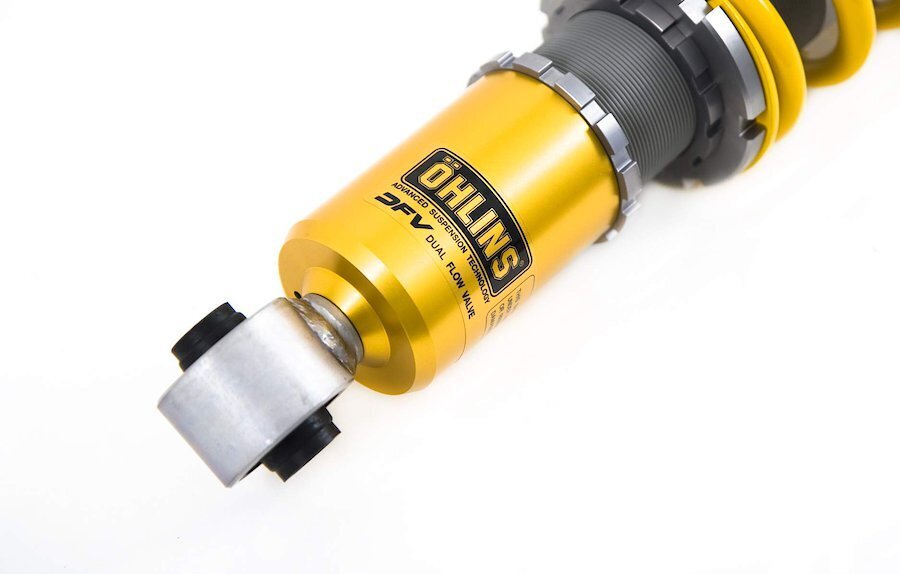

Öhlins Road & Track Coilovers for Subaru BRZ / Toyota 86 / GR86 2012+
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Subaru BRZ / Toyota 86 / GR86 (2012+)
Part Number: SUS MP21S2 | Supersedes: SUS MP21S1 | Fitment: 2012–2021 Subaru BRZ & Toyota 86/GT86 | 2022+ Subaru BRZ & Toyota GR86
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
Technical Specifications
| Part Number | SUS MP21S2 |
| Supersedes | SUS MP21S1 |
| Front Damper Type | McPherson strut (upside down) |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 60 N/mm |
| Rear Spring Rate | 60 N/mm |
| Front Lowering Range | Approx. 10–35mm below standard |
| Rear Lowering Range | Approx. 5–25mm below standard |
| Damping Adjustment | Combined compression & rebound (single adjuster, front & rear) |
| Top Mounts | Use with original top mounts (Öhlins top mounts available separately) |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual ride height adjustment via threaded lower flange (spring seat position maintained)
- Spring preload adjustment with included C-spanner
- Rebuildable construction for long-term serviceability
- Corrosion salt spray tested to ISO 9227
- 2-year worldwide limited warranty
Front Features
- McPherson strut — upside down design
- Combined compression & rebound damping via single adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 10–35mm lower than standard
- Spring rate: 60 N/mm
- Use with original top mounts (Öhlins top mounts available separately)
Rear Features
- Conventional shock absorber design
- Combined compression & rebound damping via single adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 5–25mm lower than standard
- Spring rate: 60 N/mm
- Use with original top mounts (Öhlins top mounts available separately)
Kit Contents
- Complete coilover suspension kit including springs and all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
- ✅ Rebuildable and fully serviceable for long-term ownership and track use
- ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
- ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
Vehicle Fitment
| Subaru BRZ | 2012–2021 (ZC6) & 2022+ (ZD8) |
| Toyota 86 / GT86 | 2012–2021 (ZN6) |
| Toyota GR86 | 2022+ (ZN8) |
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
Installation
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
