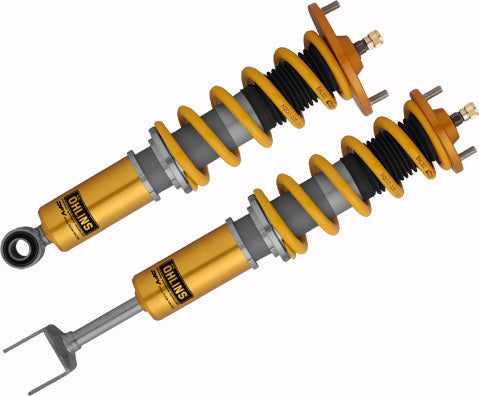

Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1993)
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1993)
Part Number: NIS MI05S1 | Fitment: Nissan Skyline GT-R R32 (1989–1993) | Top Mounts: Aluminium rubber mounts (not camber adjustable)
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. This kit features conventional shock absorbers front and rear with separate ride height adjustment, aluminium top mounts, and springs included as a complete car set.
Vehicle Fitment
| Nissan Skyline GT-R | R32 — 1989 to 1993 |
Technical Specifications
| Part Number | NIS MI05S1 |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster — compression & rebound (front & rear) |
| Front Spring Rate | 100 N/mm — included |
| Rear Spring Rate | 80 N/mm — included |
| Front Lowering | Approx. 40mm below standard (recommended setting) |
| Rear Lowering | Approx. 25mm below standard (recommended setting) |
| Height Adjustment | Separate ride height adjuster (front & rear) |
| Top Mounts | Aluminium rubber mounts — included (not camber adjustable) |
| Springs Included | Yes — complete kit incl. springs & mounting parts |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual height adjustment via separate ride height adjuster
- Single bleed adjuster — compression and rebound
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Springs and mounting parts included
Front Features
- Conventional shock absorber
- Single bleed adjuster — compression and rebound
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 40mm lower than standard (recommended setting)
- Spring rate 100 N/mm — included
- Aluminium rubber top mounts included (not camber adjustable)
Rear Features
- Conventional shock absorber
- Single bleed adjuster — compression and rebound
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 25mm lower than standard (recommended setting)
- Spring rate 80 N/mm — included
- Aluminium rubber top mounts included (not camber adjustable)
Kit Contents
- Complete coilover kit including springs and all mounting parts
- Aluminium rubber top mounts (front & rear)
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Separate ride height adjuster — spring geometry is never compromised
- ✅ Complete kit — springs, aluminium top mounts, and mounting hardware all included
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
