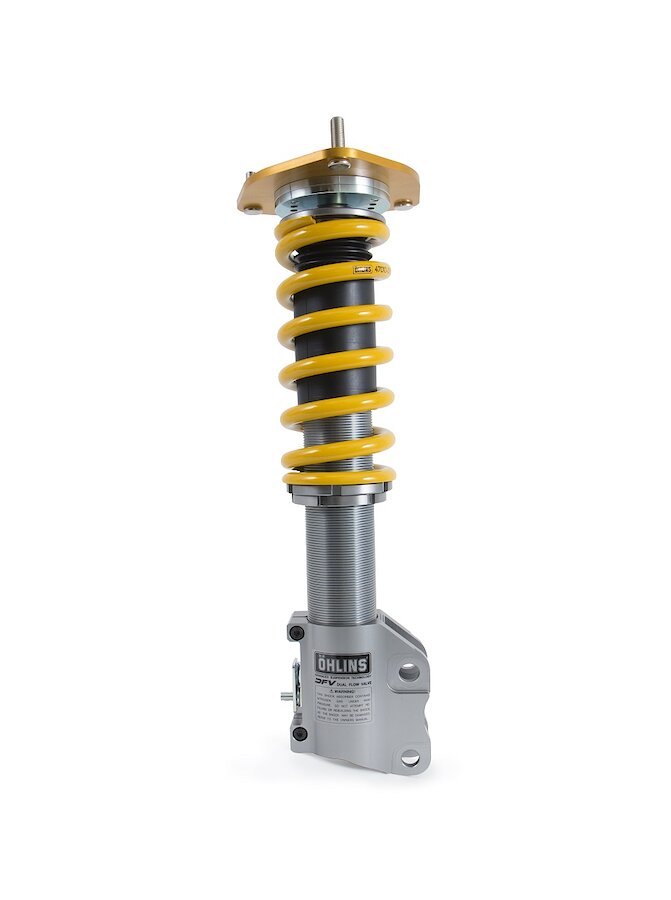

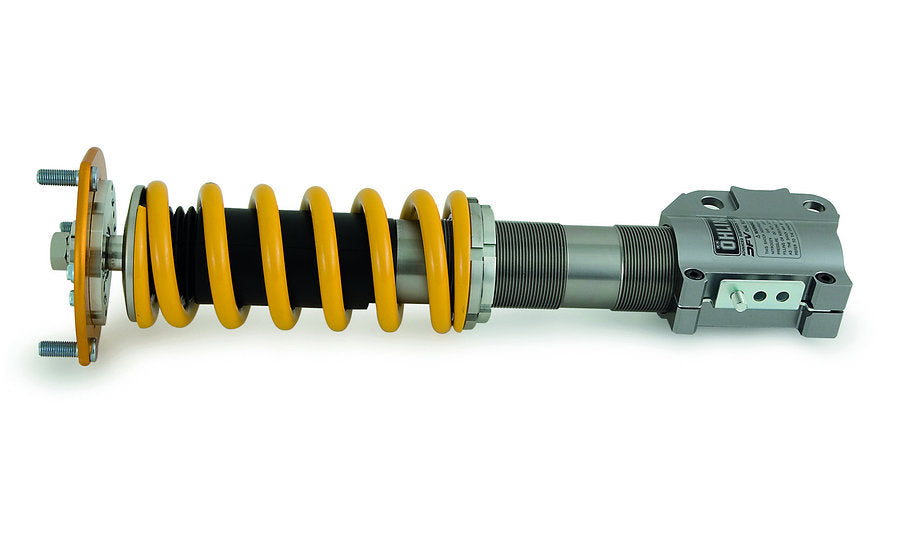

Öhlins Road & Track Coilovers – Mitsubishi Lancer Evolution IV–VI (EVO 4-6)
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Mitsubishi Lancer Evolution IV–VI (EVO 4-6)
Part Number: MIZ MI00S1 | Fitment: Mitsubishi Lancer Evolution IV, V & VI (EVO 4, 5, 6)
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
⚠️ IMPORTANT: This kit (MIZ MI00S1) must be ordered together with MIS MI01 to complete the fitment on this vehicle. Both kits are required.
Vehicle Fitment
| Mitsubishi Lancer Evolution IV | EVO 4 (CN9A) — 1996–1998 |
| Mitsubishi Lancer Evolution V | EVO 5 (CP9A) — 1998–1999 |
| Mitsubishi Lancer Evolution VI | EVO 6 (CP9A) — 1999–2001 |
Technical Specifications
| Part Number | MIZ MI00S1 |
| Companion Kit Required | MIS MI01 — must be ordered together |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 100 N/mm (Part No. 48010-31) — included |
| Rear Spring Rate | 80 N/mm (Part No. 48010-23) — included |
| Front Lowering Range | Approx. 15mm below standard |
| Rear Lowering Range | Approx. 15mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |

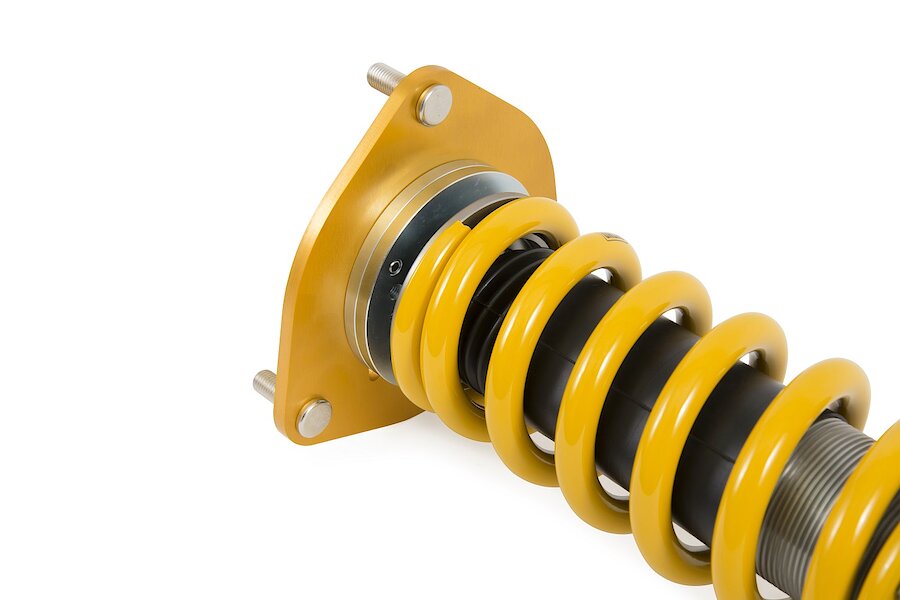

| Front Top Mounts | Top mounts with camber adjustment |
| Springs Included | Yes — front & rear springs included |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
Included Springs
| Position | Part No | Spring Rate |
|---|---|---|
| Front | 48010-31 | 100 N/mm |
| Rear | 48010-23 | 80 N/mm |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual ride height adjustment via threaded lower flange (spring seat position maintained)
- Spring preload adjustment with included C-spanner
- Rebuildable construction for long-term serviceability
- Corrosion salt spray tested to ISO 9227
- 2-year worldwide limited warranty
- Front & rear springs included
Front Features
- McPherson strut design
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. 15mm lower than standard
- Coil springs included (100 N/mm)

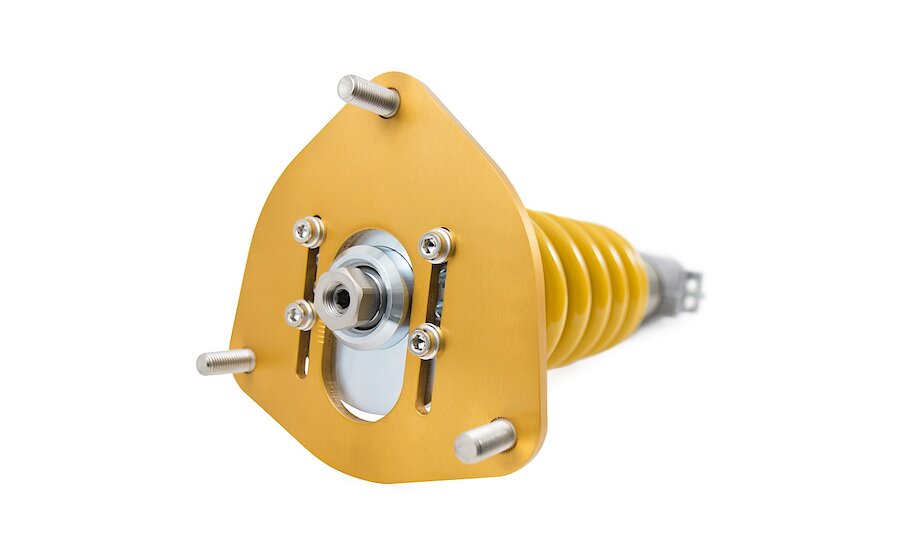

- Top mounts with camber adjustment
Rear Features
- Conventional shock absorber design
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. 15mm lower than standard
- Coil springs included (80 N/mm)
Kit Contents
- Complete coilover kit including springs and all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set

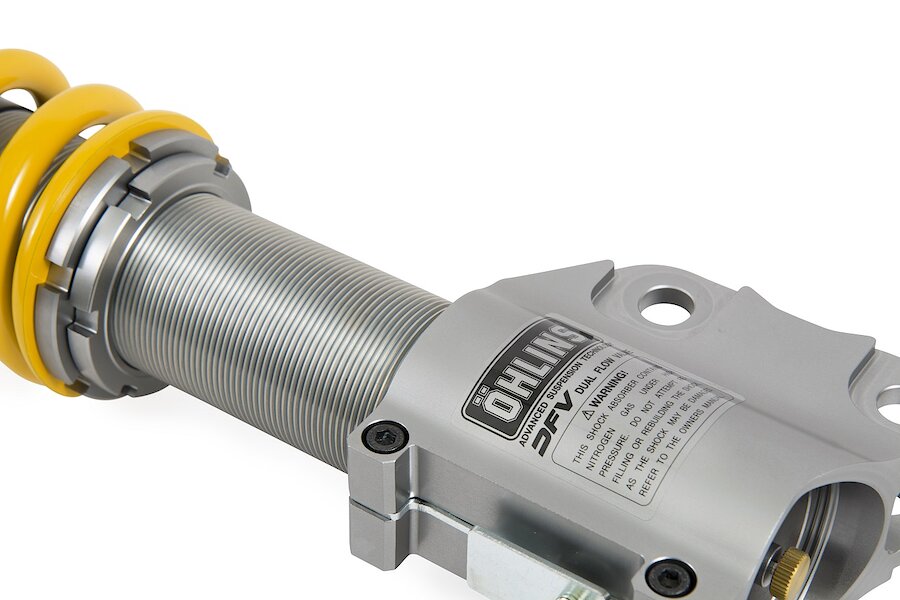

What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
- ✅ Rebuildable and fully serviceable for long-term ownership and track use
- ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
- ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
