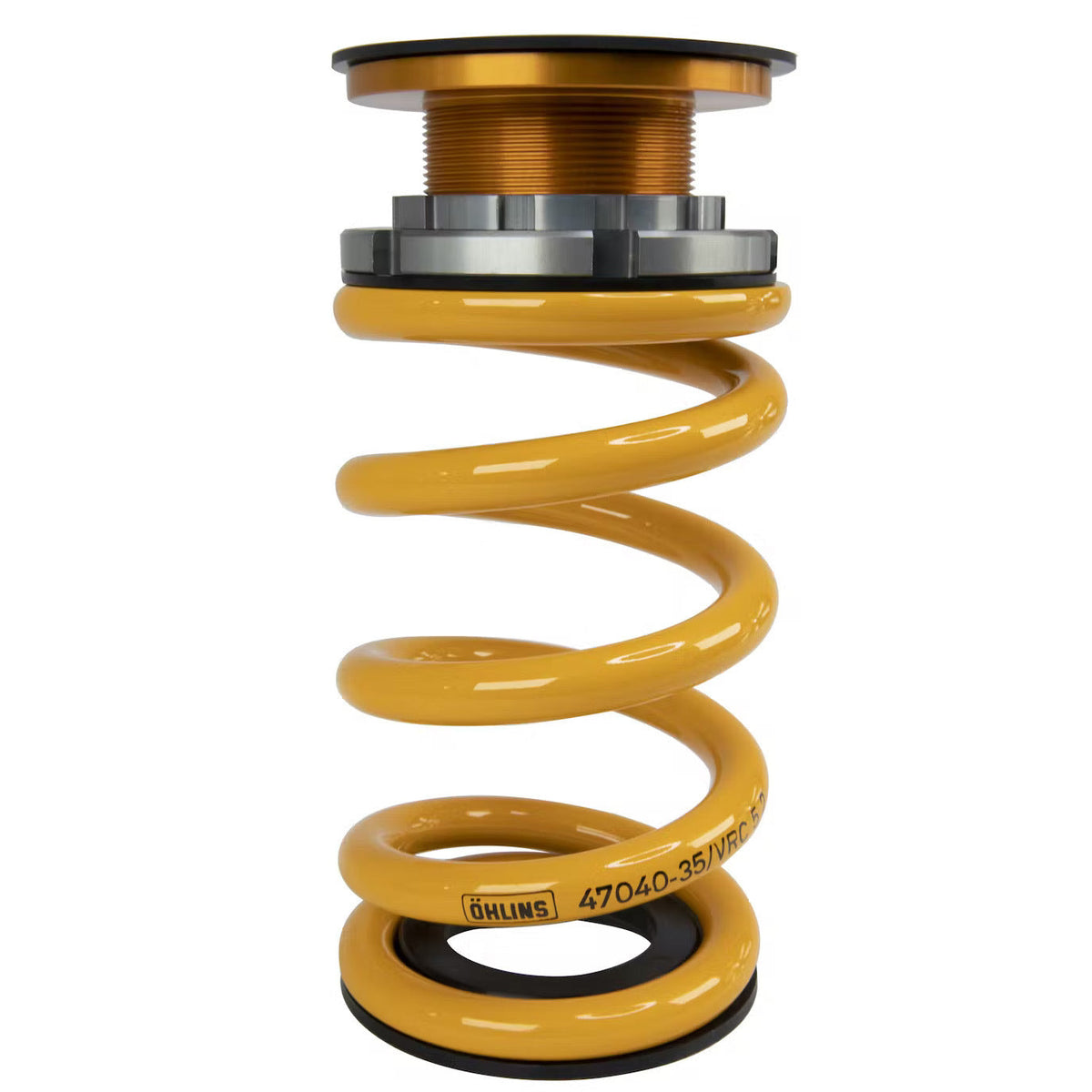

Öhlins Road & Track Coilovers for Mercedes-AMG A45 W177 2019+
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Mercedes-AMG A45 W177 (2019+)
Part Number: MES MV10S1 | Fitment: Mercedes-AMG A45 — W177 — 2019+
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock, springs included, and an approximate weight saving of 10kg over the original suspension. Corrosion-tested to ISO 9227 and backed by a 2-year limited warranty.
⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.
Technical Specifications
| Part Number | MES MV10S1 |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 80 N/mm — included |
| Rear Spring Rate | 110 N/mm — included |
| Front Lowering | Approx. 20mm below standard |
| Rear Lowering | Approx. 15mm below standard |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Weight Saving | Approx. −10kg vs original suspension |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
Included Springs
| Position | Spring Rate |
|---|---|
| Front | 80 N/mm |
| Rear | 110 N/mm |
Cancellation Kit (if required)
For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.
| Part No | Description | Model |
|---|---|---|
| 35020-35 | Cancellation kit | A45 AMG, W177 |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual height adjustment
- Single bleed adjuster — compression and rebound
- Springs included — front & rear
- Approx. −10kg weight saving vs original suspension
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
Front Features
- McPherson strut
- Single bleed adjuster
- Height adjustable — approx. 20mm lower than standard
- Coil springs included (80 N/mm)
- Use with original top mounts
Rear Features
- Conventional shock absorber
- Single bleed adjuster
- Height adjustable — approx. 15mm lower than standard
- Coil springs included (110 N/mm)
- Use with original top mounts
Kit Contents
- Complete coilover kit including springs and all mounting parts
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Approx. 10kg lighter than OEM suspension — improved handling response
- ✅ Springs included — 80/110 N/mm front & rear, ready to fit
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
Vehicle Fitment
| Mercedes-AMG A45 | W177 — 2019+ |
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
Installation
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
