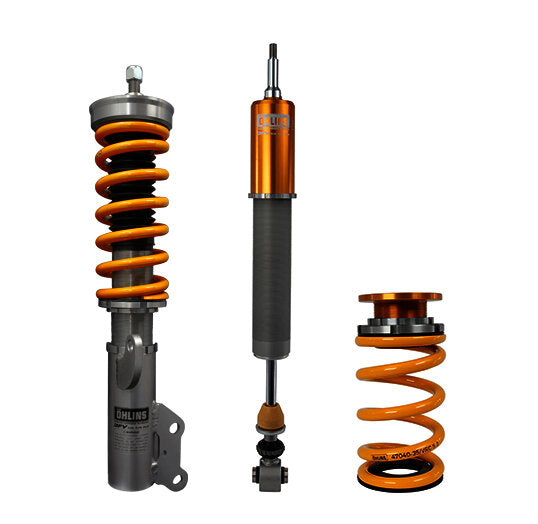

Öhlins Road & Track Coilovers – Mercedes-AMG A45 W176

Öhlins Road & Track Coilovers – Mercedes-AMG A45 W176

Part Number: MES MV00S1 | Fitment: Mercedes-AMG A45 W176

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Features a lightweight aluminium construction reducing suspension weight by 10kg compared to standard. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.

⚠️ Note: For vehicles equipped OE with electronically adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.

---

Technical Specifications

Part Number	MES MV00S1
Vehicle Fitment	Mercedes-AMG A45 W176
Front Damper Type	McPherson strut
Rear Damper Type	Conventional shock absorber
Front Spring Rate	80 N/mm — included
Rear Spring Rate	110 N/mm — included
Damping Adjustment	Single bleed adjuster (front & rear)
Top Mounts	Use with original top mounts (front & rear)
Springs Included	Yes — front & rear springs included
Weight Reduction	-10kg vs standard suspension
Corrosion Testing	ISO 9227 salt spray tested
Warranty	2-year worldwide limited warranty
Rebuildable	Yes

---

Cancellation Kit (if required)

For vehicles equipped OE with electronically adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.

Part No	Description	Model
35020-34	Cancellation kit	A45 AMG, W176

---

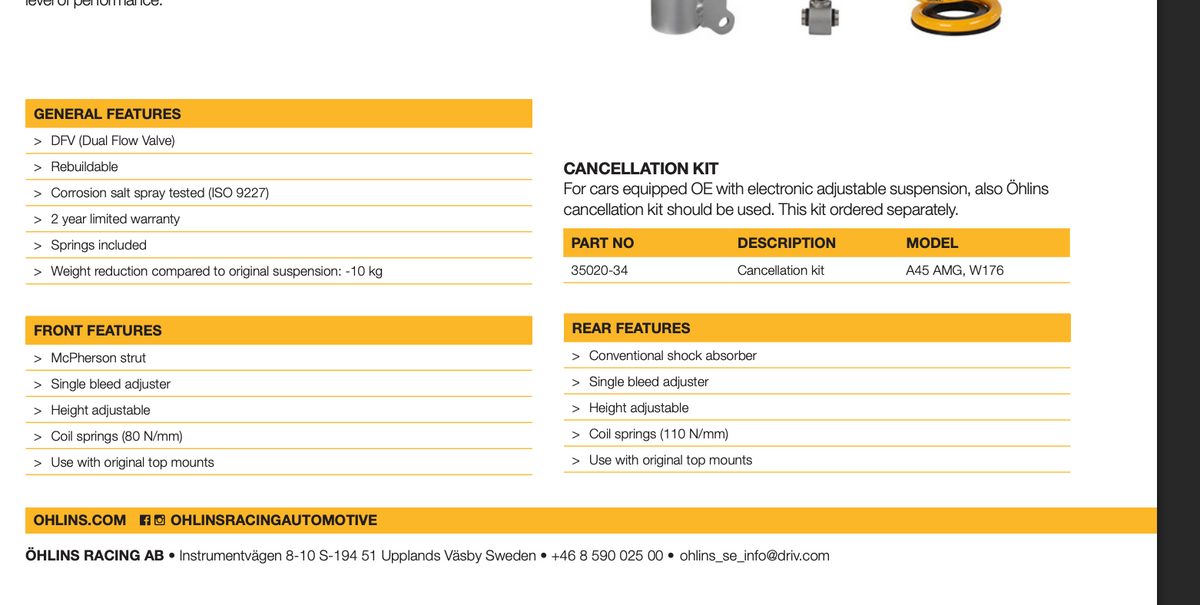

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual ride height adjustment via threaded lower flange (spring seat position maintained)
• Spring preload adjustment with included C-spanner
• Lightweight aluminium construction — -10kg vs standard suspension
• Rebuildable construction for long-term serviceability
• Corrosion salt spray tested to ISO 9227
• 2-year worldwide limited warranty
• Front & rear springs included

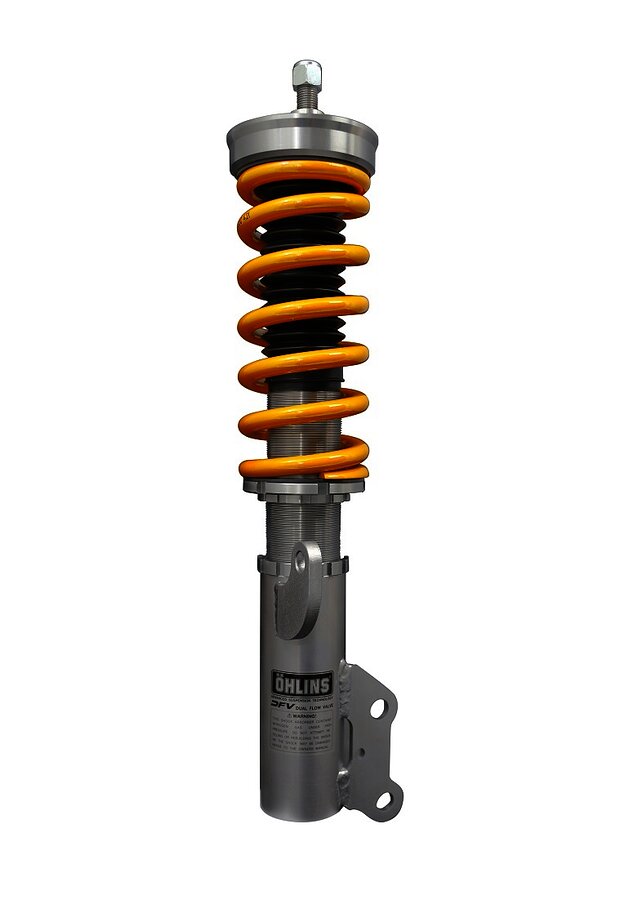

Front Features

• McPherson strut design
• Single bleed adjuster
• Height adjustable
• Coil springs included (80 N/mm)
• Use with original top mounts

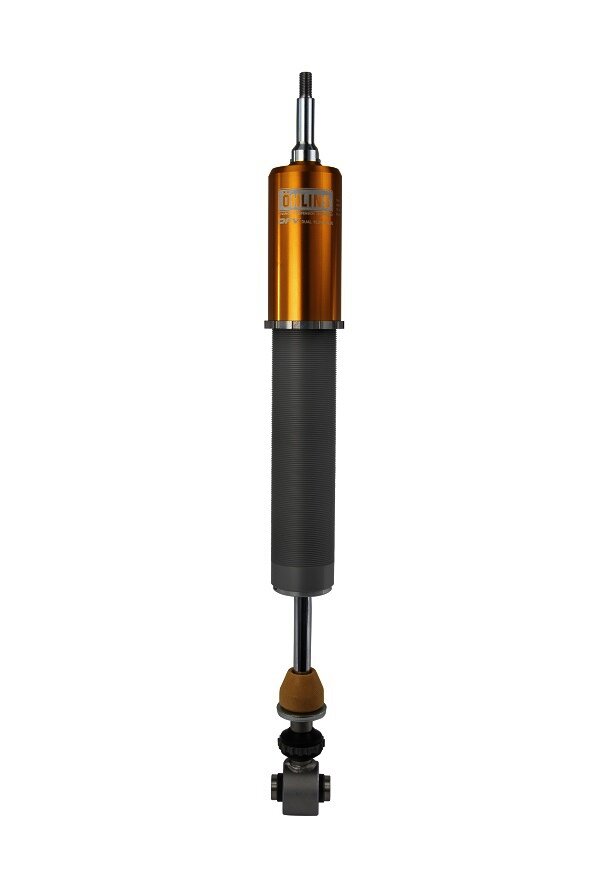

Rear Features

• Conventional shock absorber design
• Single bleed adjuster
• Height adjustable

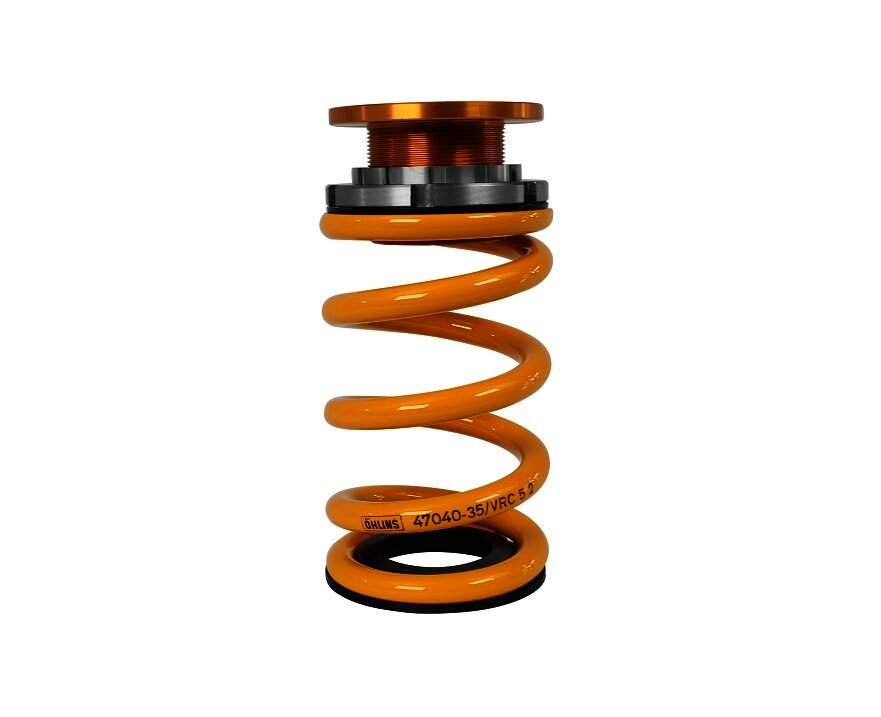

• Coil springs included (110 N/mm)
• Use with original top mounts

---

Kit Contents

• Complete coilover kit including springs and all mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

---

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.

---

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
• ✅ Rebuildable and fully serviceable for long-term ownership and track use
• ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
• ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
