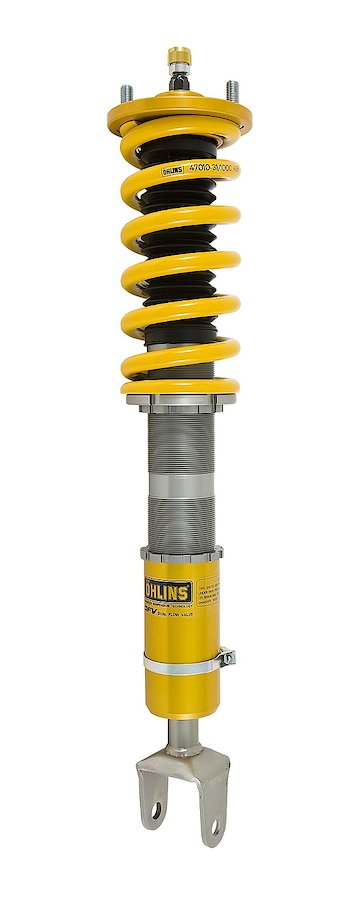

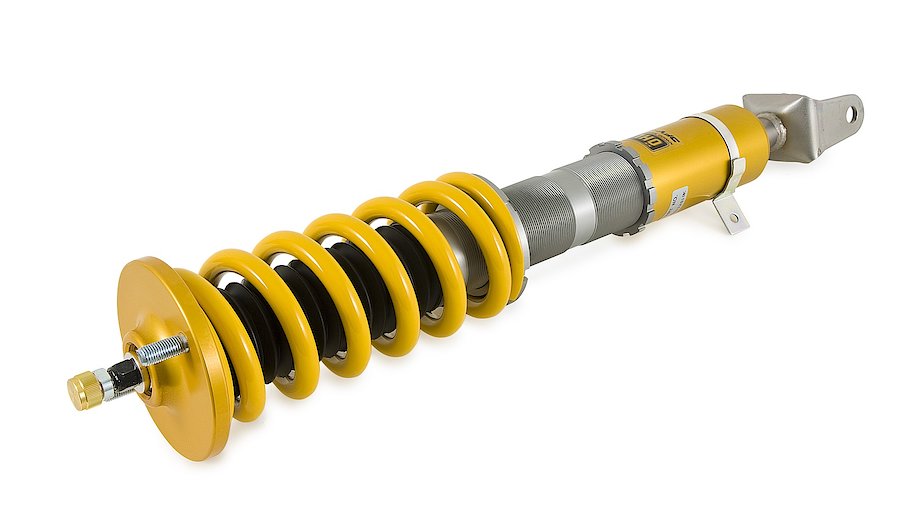

Öhlins Road & Track Coilovers for Honda S2000 AP1/AP2 1999-2009
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Honda S2000 AP1/AP2 (1999–2009)
Part Number: HOS MI21S2 | Fitment: 1999–2009 Honda S2000 AP1/AP2
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Öhlins Road & Track has extensively tested a wide variation of springs to find the right balance between road and track use — the included spring rates reflect this testing across both conditions. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
Technical Specifications
| Part Number | HOS MI21S2 |
| Vehicle Fitment | 1999–2009 Honda S2000 AP1/AP2 |
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 110 N/mm (Part No. 48010-35) — included |
| Rear Spring Rate | 70 N/mm (Part No. 48010-19) — included |
| Front Lowering Range | Approx. 25mm below standard |
| Rear Lowering Range | Approx. 25mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |

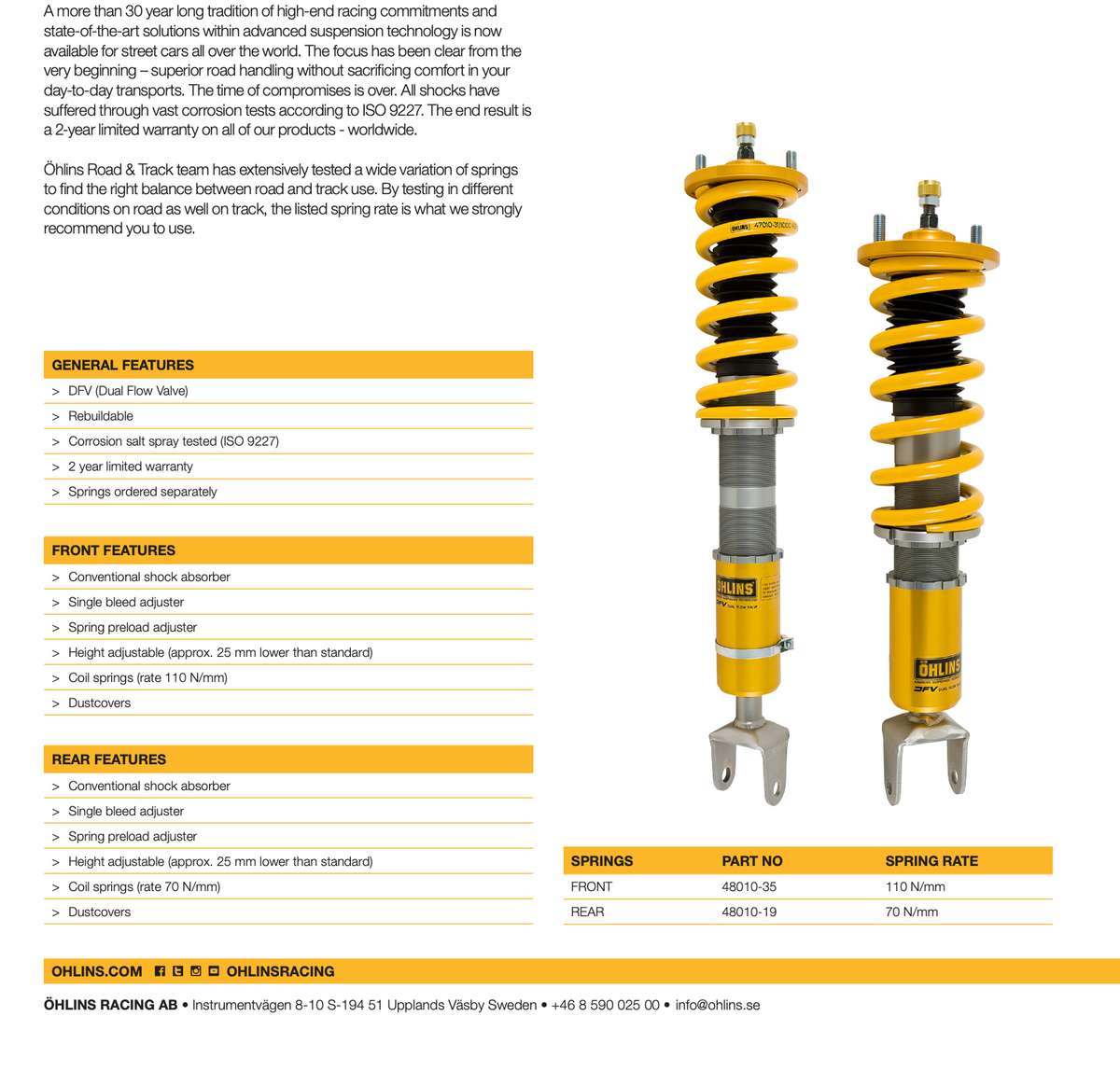

Included Springs
| Position | Part No | Spring Rate |
|---|---|---|
| Front | 48010-35 | 110 N/mm |
| Rear | 48010-19 | 70 N/mm |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual ride height adjustment via threaded lower flange (spring seat position maintained)
- Spring preload adjustment with included C-spanner
- Rebuildable construction for long-term serviceability
- Corrosion salt spray tested to ISO 9227
- 2-year worldwide limited warranty
- Front & rear springs included
Front Features
- Conventional shock absorber design
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. 25mm lower than standard
- Coil springs included (110 N/mm)
- Dustcovers included
Rear Features
- Conventional shock absorber design
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. 25mm lower than standard
- Coil springs included (70 N/mm)
- Dustcovers included
Kit Contents
- Complete coilover kit including springs and all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set

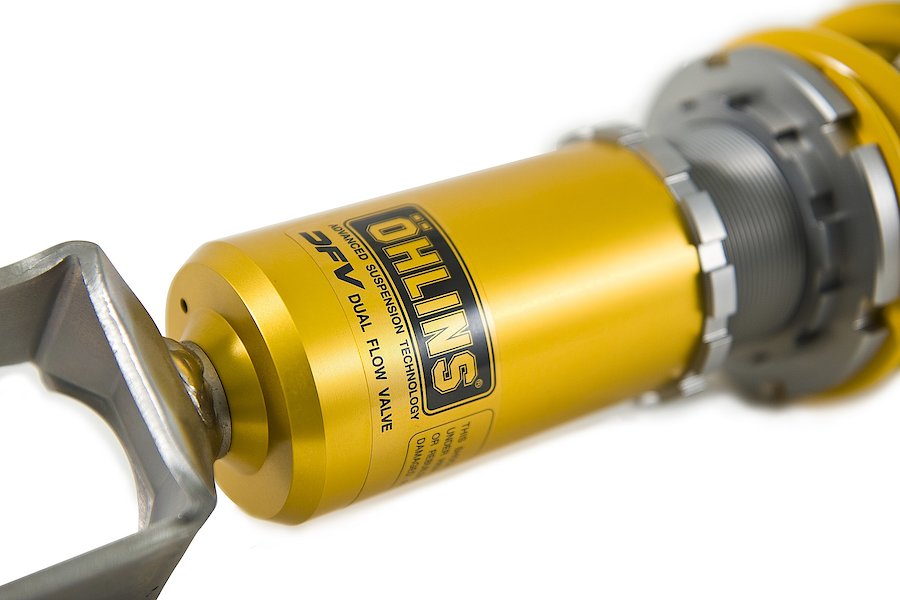

What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
- ✅ Rebuildable and fully serviceable for long-term ownership and track use
- ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
- ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
Installation
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
