Öhlins Road & Track Coilovers for Audi A4/S4/RS4 B9 & A5/S5/RS5 F5
Tax included. Shipping calculated at checkout
Description
Öhlins Road & Track Coilovers – Audi A4/S4/RS4 B9 & A5/S5/RS5 F5
Part Number: AUS MU00S1 | Fitment: Audi A4, S4, RS4 (B9) & A5, S5, RS5 (F5)
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
⚠️ Note: For vehicles equipped OE with electronically adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.
Technical Specifications
| Part Number | AUS MU00S1 |
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 120 N/mm (Part No. 48010-39) — included |
| Rear Spring Rate | 140 N/mm (Part No. 48000-47) — included |
| Front Lowering Range | Approx. 20–35mm below standard |
| Rear Lowering Range | Approx. 20–35mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Upright Clamp | Fits 48.5mm and 53mm front upright clamps |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
Included Springs
| Position | Part No | Spring Rate |
|---|---|---|
| Front | 48010-39 | 120 N/mm |
| Rear | 48000-47 | 140 N/mm |
Cancellation Kit (if required)
For vehicles equipped OE with electronically adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.
| Part No | Description | Model |
|---|---|---|
| 35020-31 | Cancellation kit | Audi A4 / S4 / RS4 |

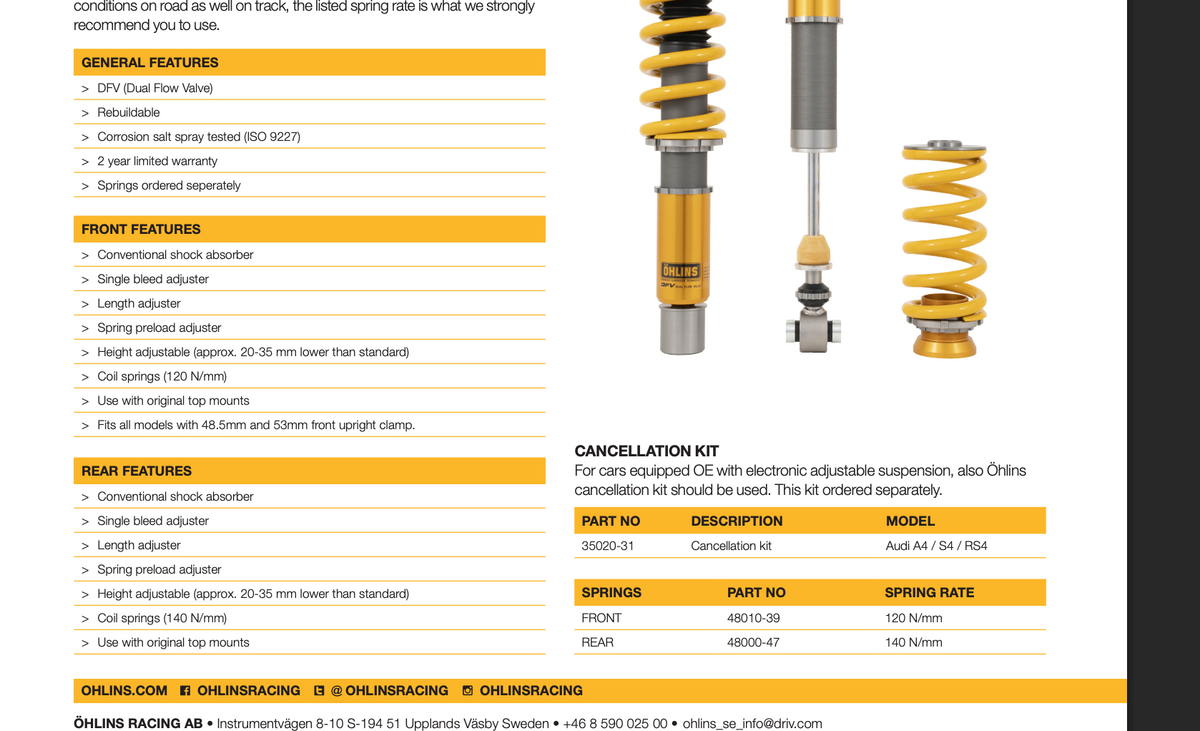

General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual ride height adjustment via length adjuster (front & rear)

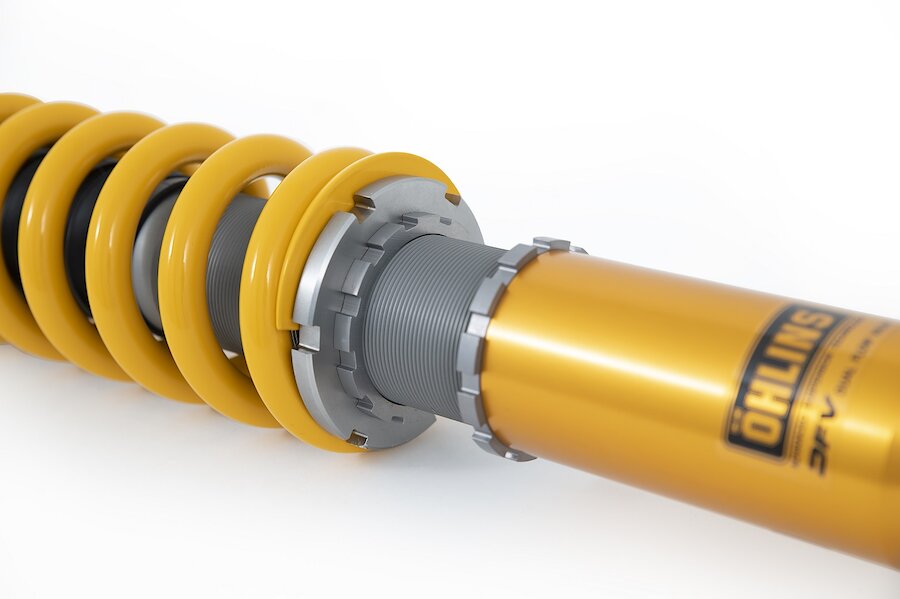

- Spring preload adjustment with included C-spanner
- Rebuildable construction for long-term serviceability
- Corrosion salt spray tested to ISO 9227
- 2-year worldwide limited warranty
- Front & rear springs included

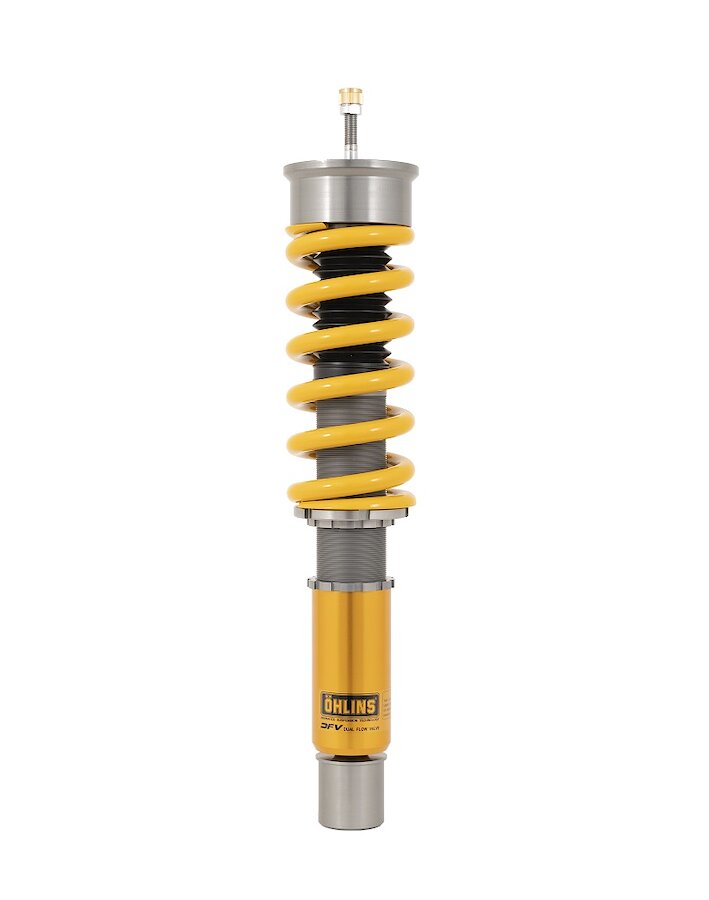

Front Features
- Conventional shock absorber design
- Single bleed adjuster
- Length adjuster
- Spring preload adjuster
- Height adjustable — approx. 20–35mm lower than standard
- Coil springs included (120 N/mm)
- Use with original top mounts
- Fits all models with 48.5mm and 53mm front upright clamp
Rear Features
- Conventional shock absorber design
- Single bleed adjuster
- Length adjuster
- Spring preload adjuster
- Height adjustable — approx. 20–35mm lower than standard
- Coil springs included (140 N/mm)
- Use with original top mounts

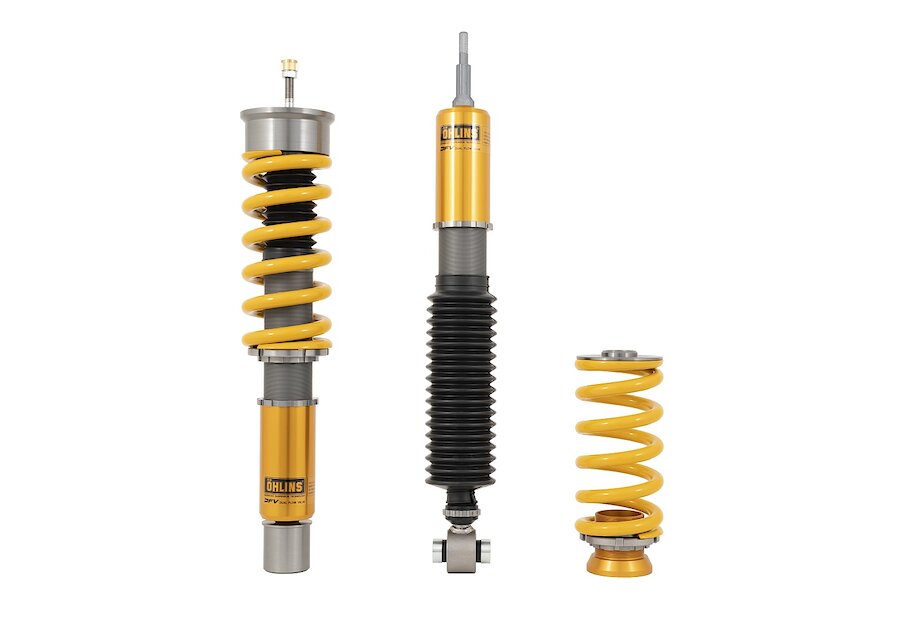

Kit Contents
- Complete coilover kit including springs and all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
- ✅ Rebuildable and fully serviceable for long-term ownership and track use
- ✅ Precision ride height adjustment via length adjuster — 20–35mm of lowering range
- ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
Vehicle Fitment
| Audi A4 / S4 / RS4 | B9 chassis |
| Audi A5 / S5 / RS5 | F5 chassis |
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
Installation
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
