Name: MOTON Racing Springs- 200 Series (200mm x 51mm ID)
Brand: Coore | Performance & Aftermarket
SKU: AST-200-30-51
Price: 250.00 AUD
Availability: InStock

Racing Springs

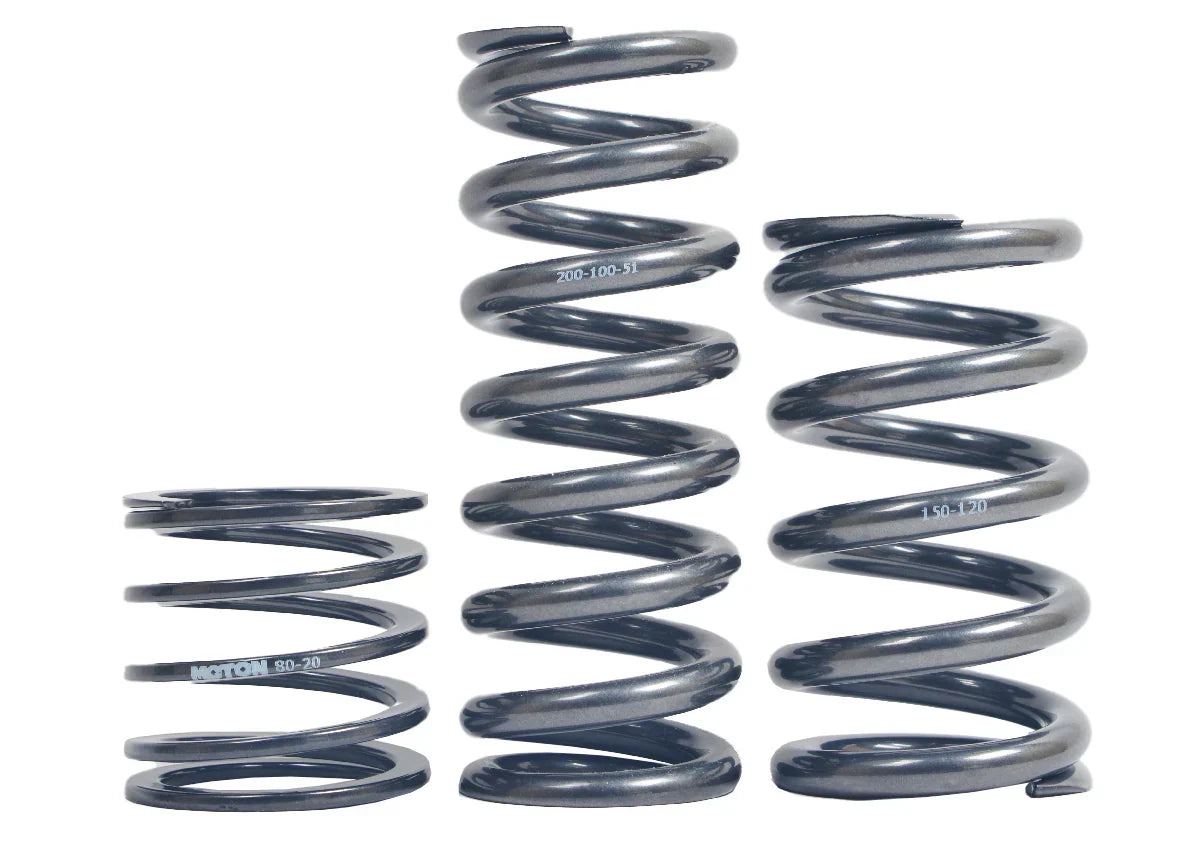

Premium 200-Series Replacement Springs (51mm ID)

Engineered for professional motorsport, these 200mm length linear-rate springs provide the consistency required for high-level chassis tuning. Manufactured from high-tensile chrome silicone steel, they offer maximum travel with minimal weight, ensuring your coilovers perform at their peak.

Lo Open Length (mm)

R Spring Rate (N/mm)

Di Inside Diameter (mm)

Sn Block Length (mm)

Fn Force at Block (N)

St Usable Stroke (mm)

Part Number	Lo	R	Di	Sn	Fn	St
AST-200-30-51	200	30	51	-	-	-
AST-200-40-51	200	40	51	-	-	-
AST-200-50-51	200	50	51	77	6150	123
AST-200-60-51	200	60	51	80	7200	120
AST-200-70-51	200	70	51	84	8120	116
AST-200-80-51	200	80	51	96	8320	104
AST-200-90-51	200	90	51	92	9720	108
AST-200-100-51	200	100	51	93	10700	107
AST-200-110-51	200	110	51	-	-	-
AST-200-120-51	200	120	51	120	9600	80
AST-200-130-51	200	130	51	-	-	-
AST-200-140-51	200	140	51	-	-	-
AST-200-150-51	200	150	51	104	14400	96
AST-200-160-51	200	160	51	123	12320	77
AST-200-170-51	200	170	51	-	-	-
AST-200-180-51	200	180	51	-	-	-

MOTON Racing Springs- 200 Series (200mm x 51mm ID)

Racing Springs
