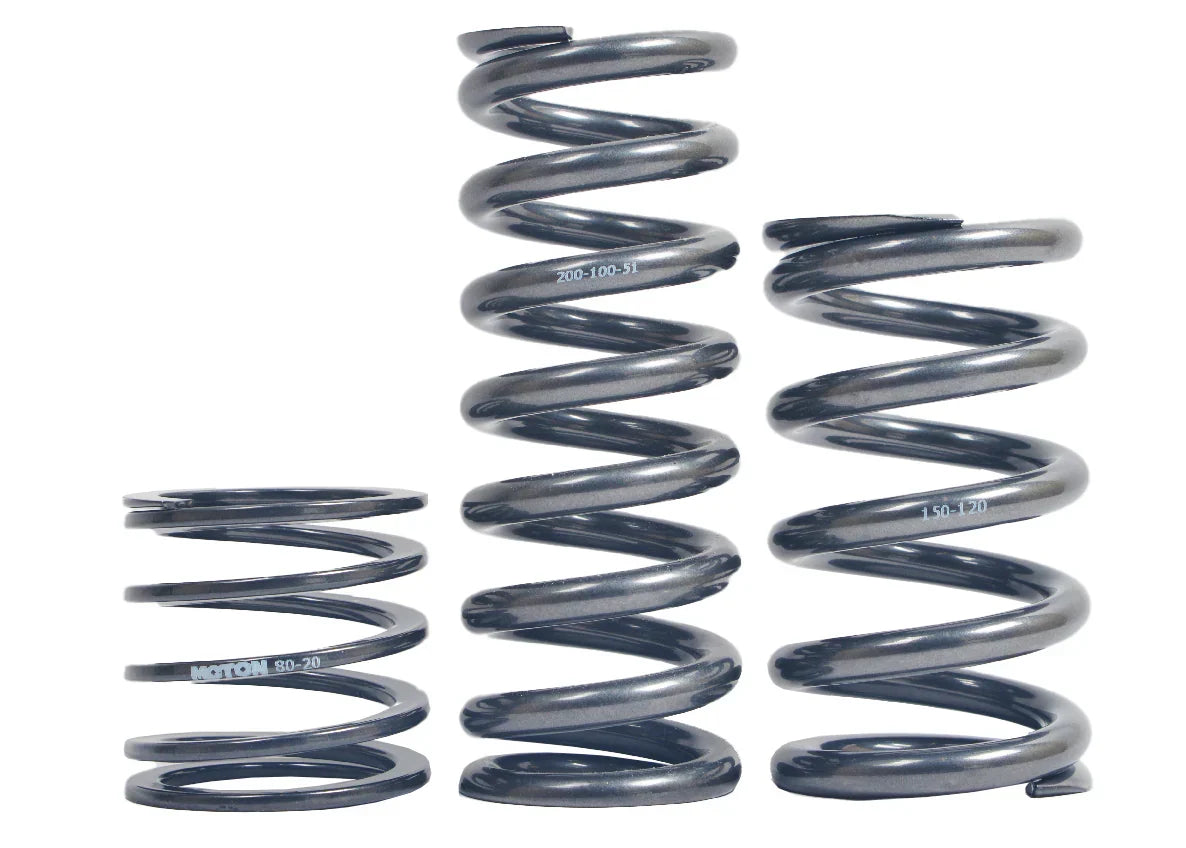

Name: MOTON Linear Racing Springs- 300 Series (300mm x 61mm ID)
Brand: Coore | Performance & Aftermarket
SKU: AST-300-20-61
Price: 250.00 AUD
Availability: InStock

Moton Linear Racing Springs

Premium 300-Series Replacement Springs (61mm ID)

Engineered for professional motorsport, these 300mm length linear-rate springs provide the consistency required for high-level chassis tuning. Manufactured from high-tensile chrome silicone steel, they offer maximum travel with minimal weight, ensuring your Moton or AST coilovers perform at their peak.

Lo Open Length (mm)

R Spring Rate (N/mm)

Di Inside Diameter (mm)

Sn Block Length (mm)

Fn Force at Block (N)

St Usable Stroke (mm)

Part Number	Lo	R	Di	Sn	Fn	St
AST-300-20-61	300	20	61	-	-	-
AST-300-25-61	300	25	61	-	-	-
AST-300-30-61	300	30	61	107	5790	193
AST-300-35-61	300	35	61	114	6510	186
AST-300-40-61	300	40	61	123	7080	177
AST-300-45-61	300	45	61	122	8010	178
AST-300-50-61	300	50	61	133	8350	167
AST-300-55-61	300	55	61	133	9185	167
AST-300-60-61	300	60	61	134	9960	166
AST-300-65-61	300	65	61	136	10660	164
AST-300-70-61	300	70	61	138	11340	162
AST-300-75-61	300	75	61	140	12000	160
AST-300-80-61	300	80	61	143	12560	157
AST-300-85-61	300	85	61	147	13005	153
AST-300-90-61	300	90	61	150	13500	150
AST-300-95-61	300	95	61	154	13870	146
AST-300-100-61	300	100	61	169	13100	131
AST-300-110-61	300	110	61	156	15840	144
AST-300-120-61	300	120	61	165	16200	135
AST-300-130-61	300	130	61	176	16120	124
AST-300-140-61	300	140	61	165	18900	135
AST-300-150-61	300	150	61	176	18600	124
