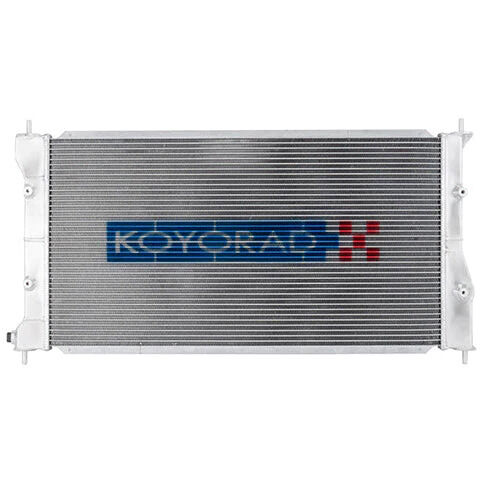

Koyorad Performance Radiator: Toyota 86 / GR86 / Subaru BRZ MT 2013-2026
Tax included. Shipping calculated at checkout
Description
Koyo Performance Radiator – Toyota 86 / GR86 & Subaru BRZ MT 2013–2026
Application: Toyota 86 (ZN6) / GR86 (ZN8) & Subaru BRZ (ZC6/ZD8) | FA20 / FA24 2.0L & 2.4L Aspirated Boxer Petrol RWD | Manual Transmission
Part Number: VH012664N / KV012663NU06
The 86/BRZ platform is one of the most celebrated driver's cars of the modern era — lightweight, balanced, and endlessly rewarding on a twisty road or a circuit. Whether you're running a stock FA20 or a built FA24, keeping coolant temperatures stable is key to getting the most out of this platform, especially on track.
Koyorad's all-aluminium radiator is a direct bolt-in performance upgrade for both the Toyota 86/GR86 and Subaru BRZ, engineered to the same factory fit and mounting points as the OE unit. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested — it retains all OEM fan shroud mounts and stock hose connections with no modifications required.
Why Koyorad?
- Precise Tube & Fin Alignment — Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
- Nocolok Furnace Brazing — All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
- Billet Filler Neck — Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
- OE-Specific Mounting — Application-specific mounting points for fan shrouds, inlet/outlet hoses, and top/bottom pins ensure a pain-free, no-modification install.
- Hand-Crafted Heliarc Welds — Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.

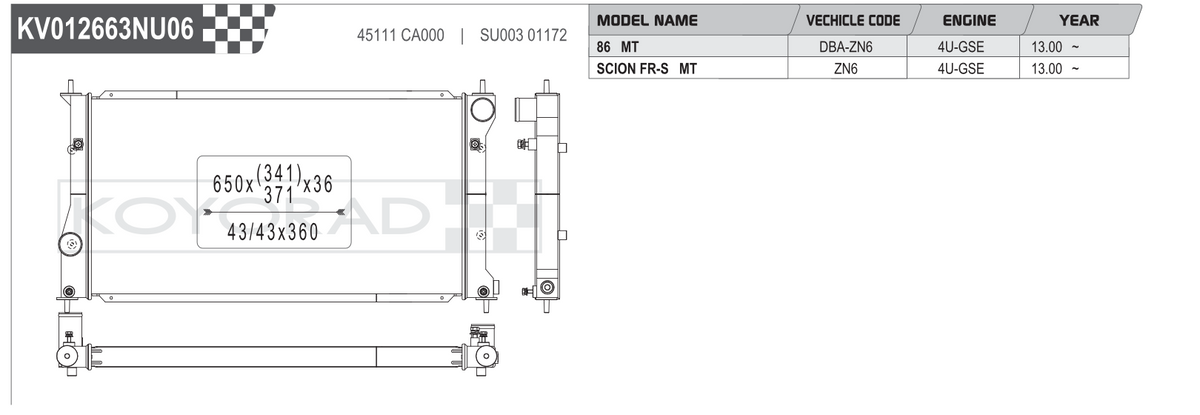

Specifications
| Part Number | VH012664N / KV012663NU06 |
| Core Thickness | 36mm |
| Core Dimensions (H × W) | 650 × 341/371mm |
| Tube Pitch | 43/43 × 360mm |
| Construction | All Aluminium, Nocolok Brazed, Heliarc Welded |
| Transmission | Manual (MT) |
| Fan Shroud | Retains OEM mounts |
| Hoses | Compatible with stock radiator hoses |
| Fitment | Direct bolt-in, no modifications required |
Cross Reference
| Koyorad | VH012664N / KV012663NU06 |
| Toyota / Subaru OEM | 45111 CA000 / SU003 01172 |
Fitment
| Year | Make | Model | Chassis | Submodel |
|---|---|---|---|---|
| 2013–2021 | Toyota | 86 | ZN6 (2D Coupe) | GTS – FA20 / 4U-GSE 2.0L Aspirated Boxer Petrol RWD (147kW) |
| 2022–2026 | Toyota | GR86 | ZN8 (2D Coupe) | GTS – FA24 2.4L Aspirated Boxer Petrol RWD (173kW) |
| 2013–2021 | Subaru | BRZ | ZC6 (2D Coupe) | Base – FA20 2.0L Aspirated Boxer Petrol RWD (147kW) |
| 2022–2026 | Subaru | BRZ | ZD8 (2D Coupe) | Base – FA24 2.4L Aspirated Boxer Petrol RWD (173kW) |
Sold individually. Manual transmission fitment only. Lead times may apply — contact us at Coore for availability and shipping estimates.
Coore Performance & Aftermarket is an Authorised Australian Distributor of Koyorad Performance Radiators.
Shop with confidence — all Koyorad products sold through Coore are genuine, backed by manufacturer support, and shipped from Australia.
