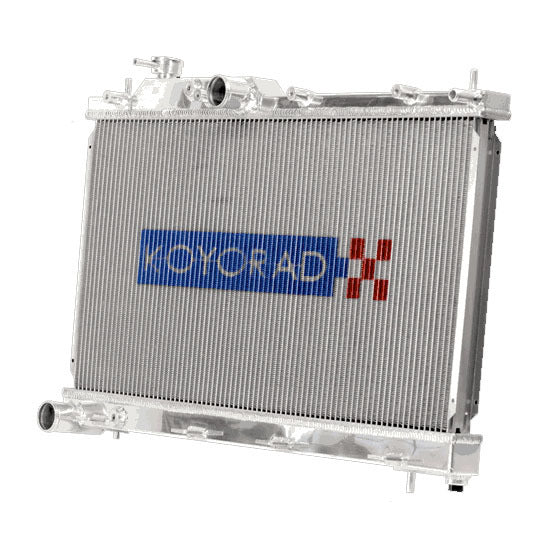

Koyorad Performance Radiator: Subaru Forester XT SG9 EJ25 2004-2008
Tax included. Shipping calculated at checkout
Description
Koyo Performance Radiator – Subaru Forester XT SG9 EJ25 2004–2008
Application: Subaru Forester XT | TA-SG9 | EJ25 2.5L Turbo Petrol AWD | Manual & Automatic Transmission
Part Number: VH13026 / KV092217R
The SG9 Forester XT is one of the most capable and underrated performance wagons of its era — a turbocharged EJ25 boxer, symmetrical AWD, and a practical body that makes it equally at home on a gravel road or a circuit. Whether it's a daily driver, a rally-inspired build, or a track car, keeping coolant temperatures stable is fundamental to getting the most out of the EJ25 under sustained load.
Koyorad's all-aluminium radiator is a direct bolt-in performance upgrade for the SG9 Forester XT, engineered to the same factory fit and mounting points as the OE unit. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested — it retains all OEM fan shroud mounts and stock hose connections with no modifications required.
Why Koyorad?
- Precise Tube & Fin Alignment — Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
- Nocolok Furnace Brazing — All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
- Billet Filler Neck — Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
- OE-Specific Mounting — Application-specific mounting points for fan shrouds, inlet/outlet hoses, and top/bottom pins ensure a pain-free, no-modification install.
- Hand-Crafted Heliarc Welds — Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.

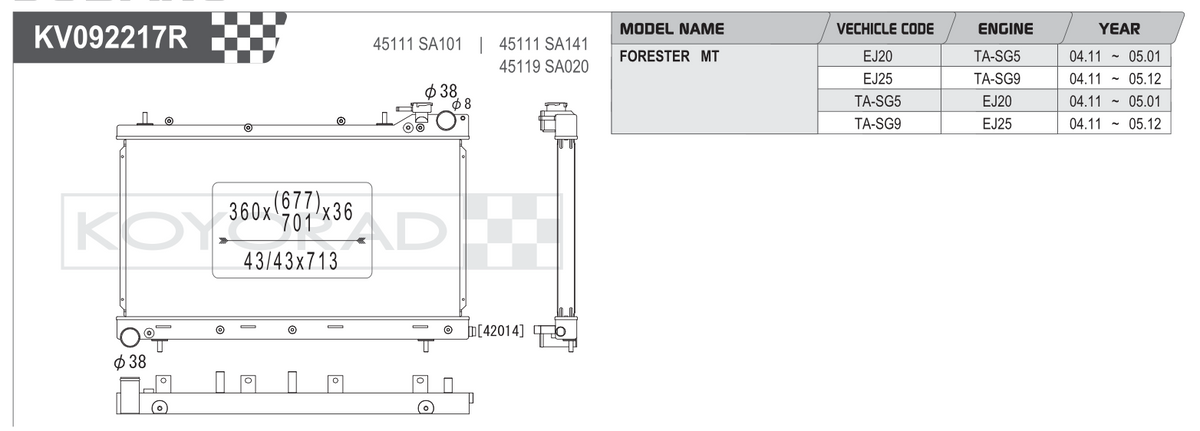

Specifications
| Part Number | VH13026 / KV092217R |
| Core Thickness | 36mm |
| Core Dimensions (H × W) | 360 × 677/701mm |
| Tube Pitch | 43/43 × 713mm |
| Inlet / Outlet Diameter | Ø38mm (top & bottom) |
| Construction | All Aluminium, Nocolok Brazed, Heliarc Welded |
| Transmission | Manual & Automatic |
| Fan Shroud | Retains OEM mounts |
| Hoses | Compatible with stock radiator hoses |
| Fitment | Direct bolt-in, no modifications required |
Cross Reference
| Koyorad | VH13026 / KV092217R |
| Subaru OEM | 45111 SA101 / 45111 SA141 / 45119 SA020 |
Fitment
| Year | Make | Model | Chassis | Submodel |
|---|---|---|---|---|
| 2004–2008 | Subaru | Forester | TA-SG9 (5D Wagon) | XT – EJ25 2.5L Turbo Petrol AWD |
Installation Notes
- 2003–2005 Turbo XT (5MT): Return hose adaptation required — tap into the existing return hose using a T-fitting and approximately 300mm of coolant hose (not included).
- 2003–2005 models: The filler neck on this radiator requires a specific radiator cap suited to 2003–2005 Forester XT applications — sold separately.
- Automatic transmission vehicles: Compatible, however an external transmission oil cooler is required — sold separately.
Sold individually. Lead times may apply — contact us at Coore for availability and shipping estimates.
Coore Performance & Aftermarket is an Authorised Australian Distributor of Koyorad Performance Radiators.
Shop with confidence — all Koyorad products sold through Coore are genuine, backed by manufacturer support, and shipped from Australia.
