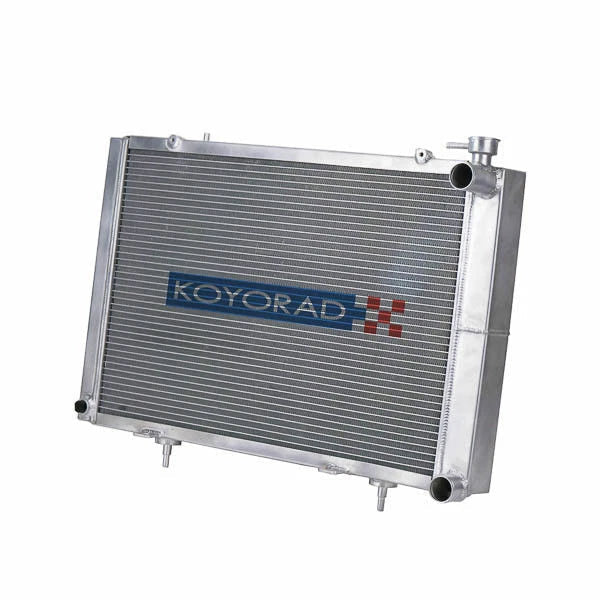

Koyo Half-Size Race Radiator – Mitsubishi Lancer Evolution VII / VIII / IX 4G63T MT 2001–2007
Application: Mitsubishi Lancer Evolution VII / VIII / IX | CT9A / CT9W | 4G63T | Manual Transmission | 2001–2007
Part Number: HH032412 (Koyorad / Coore)
The Lancer Evolution VII, VIII, and IX are among the most celebrated all-wheel-drive performance platforms ever built — WRC-derived machines powered by the legendary turbocharged 4G63T. For serious track and race builds where space is at a premium, Koyorad's HH032412 half-size race radiator offers a compact, high-performance cooling solution engineered specifically for the CT9A/CT9W platform.
At roughly half the width of a standard radiator, the HH032412 is designed for drag, small track, and short duration race builds where intercooler placement, turbo piping, or custom front-end configurations demand a narrower core. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested — it delivers serious cooling performance in a compact package.
Why Koyorad?
- Precise Tube & Fin Alignment — Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
- Nocolok Furnace Brazing — All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
- Billet Filler Neck — Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
- Compact Race Design — Half-size core allows for flexible front-end packaging in race and time attack builds where space is critical.
- Hand-Crafted Heliarc Welds — Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.
Specifications
| Part Number | HH032412 |
| Core Thickness | 48mm |
| Core Height | 14.5" (368mm) |
| Overall Height | 19" (483mm) |
| Core Width | 13.5" (343mm) |
| Overall Width | 14.5" (368mm) |
| Inlet / Outlet Diameter | ⌀35mm (top and bottom) |
| Construction | All Aluminium, Nocolok Brazed, Heliarc Welded |
| Design | Half-Size Race Radiator |
| Transmission | Manual (MT) |
Cross Reference
| Koyorad | HH032412 |
| Mitsubishi OEM | TBA |
Fitment
| Year | Make | Model | Chassis | Submodel |
|---|---|---|---|---|
| 2001–2002 | Mitsubishi | Lancer | CT9A (4D Sedan) | Evolution VII — 4G63T 2.0L Turbo Petrol AWD (206kW) |
| 2003–2005 | Mitsubishi | Lancer | CT9A (4D Sedan) | Evolution VIII — 4G63T 2.0L Turbo Petrol AWD (206kW) |
| 2005–2007 | Mitsubishi | Lancer | CT9A (4D Sedan) | Evolution IX — 4G63T 2.0L Turbo Petrol AWD (206kW) |
| 2005–2006 | Mitsubishi | Lancer | CT9W (4D Wagon) | Evolution IX — 4G63T 2.0L Turbo Petrol AWD (206kW) |
Installation Notes
- MT Only — Manual transmission models only.
- Race Use: This half-sized radiator is intended for drag, small track, and short duration race vehicles only. Modifications may be required.
Sold individually. Lead times may apply — contact us at Coore for availability and shipping estimates.
