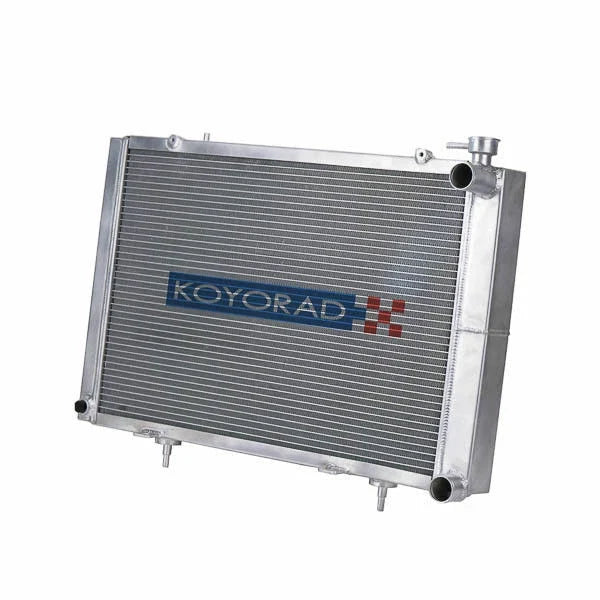

Koyorad Half-Size Race Radiator for Mitsubishi Lancer Evolution VII / VIII / IX 4G63T MT 2001-2007
Tax included. Shipping calculated at checkout
Description
Koyo Half-Size Race Radiator – Mitsubishi Lancer Evolution VII / VIII / IX 4G63T MT 2001–2007
Application: Mitsubishi Lancer Evolution VII / VIII / IX | CT9A / CT9W | 4G63T | Manual Transmission | 2001–2007
Part Number: HH032412 (Koyorad / iilumolab)
The Lancer Evolution VII, VIII, and IX are among the most celebrated all-wheel-drive performance platforms ever built — WRC-derived machines powered by the legendary turbocharged 4G63T. For serious track and race builds where space is at a premium, Koyorad's HH032412 half-size race radiator offers a compact, high-performance cooling solution engineered specifically for the CT9A/CT9W platform.
At roughly half the width of a standard radiator, the HH032412 is designed for drag, small track, and short duration race builds where intercooler placement, turbo piping, or custom front-end configurations demand a narrower core. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested — it delivers serious cooling performance in a compact package.
Why Koyorad?
- Precise Tube & Fin Alignment — Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
- Nocolok Furnace Brazing — All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
- Billet Filler Neck — Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
- Compact Race Design — Half-size core allows for flexible front-end packaging in race and time attack builds where space is critical.
- Hand-Crafted Heliarc Welds — Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.
Specifications
| Part Number | HH032412 |
| Core Thickness | 48mm |
| Core Height | 14.5" (368mm) |
| Overall Height | 19" (483mm) |
| Core Width | 13.5" (343mm) |
| Overall Width | 14.5" (368mm) |
| Inlet / Outlet Diameter | ⌀35mm (top and bottom) |
| Construction | All Aluminium, Nocolok Brazed, Heliarc Welded |
| Design | Half-Size Race Radiator |
| Transmission | Manual (MT) |
Cross Reference
| Koyorad | HH032412 |
| Mitsubishi OEM | TBA |
Fitment
| Year | Make | Model | Chassis | Submodel |
|---|---|---|---|---|
| 2001–2002 | Mitsubishi | Lancer | CT9A (4D Sedan) | Evolution VII — 4G63T 2.0L Turbo Petrol AWD (206kW) |
| 2003–2005 | Mitsubishi | Lancer | CT9A (4D Sedan) | Evolution VIII — 4G63T 2.0L Turbo Petrol AWD (206kW) |
| 2005–2007 | Mitsubishi | Lancer | CT9A (4D Sedan) | Evolution IX — 4G63T 2.0L Turbo Petrol AWD (206kW) |
| 2005–2006 | Mitsubishi | Lancer | CT9W (4D Wagon) | Evolution IX — 4G63T 2.0L Turbo Petrol AWD (206kW) |
If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
Installation Notes
- MT Only — Manual transmission models only.
- Race Use: This half-sized radiator is intended for drag, small track, and short duration race vehicles only. Modifications may be required.
Sold individually. Lead times may apply — contact us at iilumolab for availability and shipping estimates.
iilumolab is an Authorised Australian Distributor of Koyorad Performance Radiators.
Shop with confidence — all Koyorad products sold through iilumolab are genuine, backed by manufacturer support, and shipped from Australia.
We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
