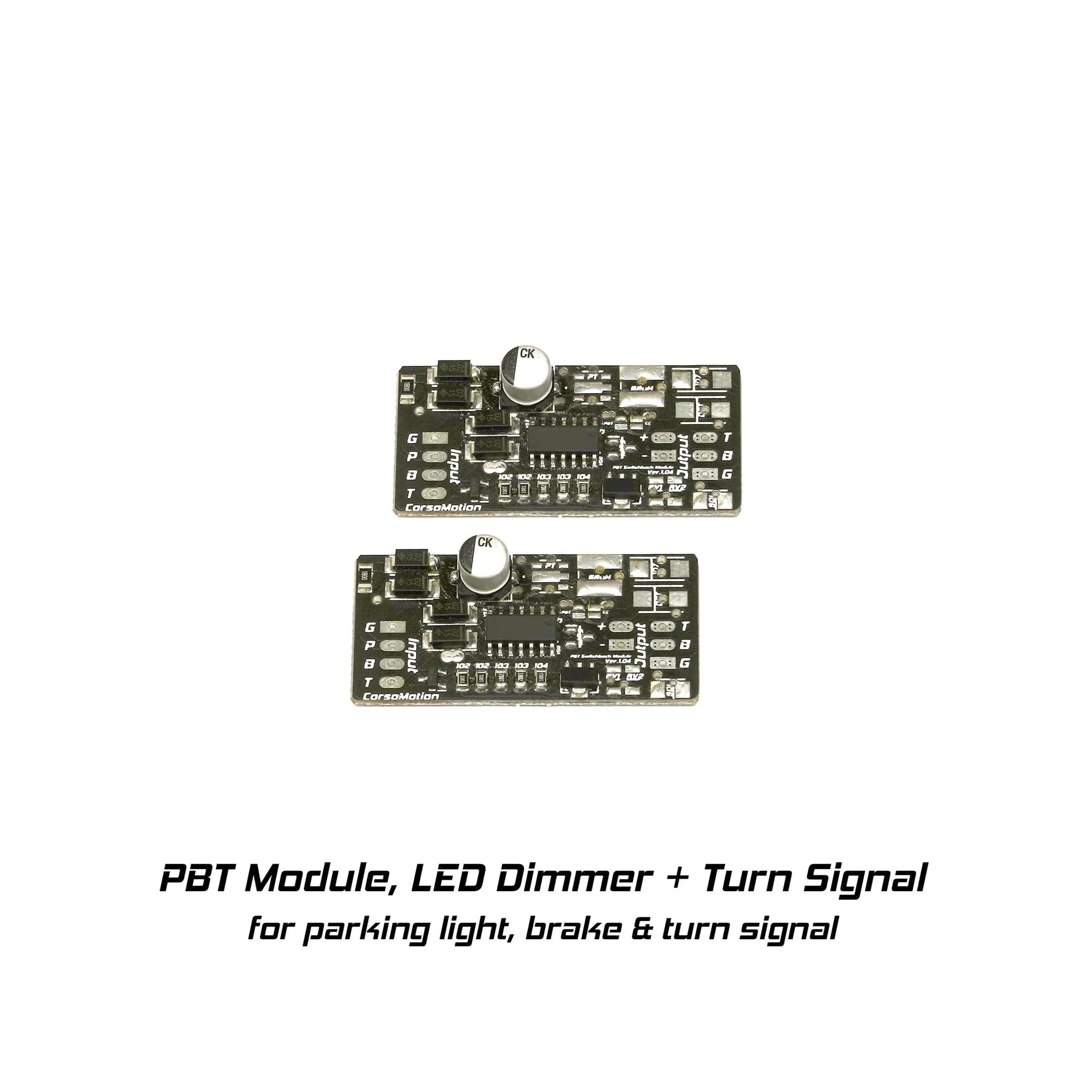

CORSOMOTION : PBT MODULES

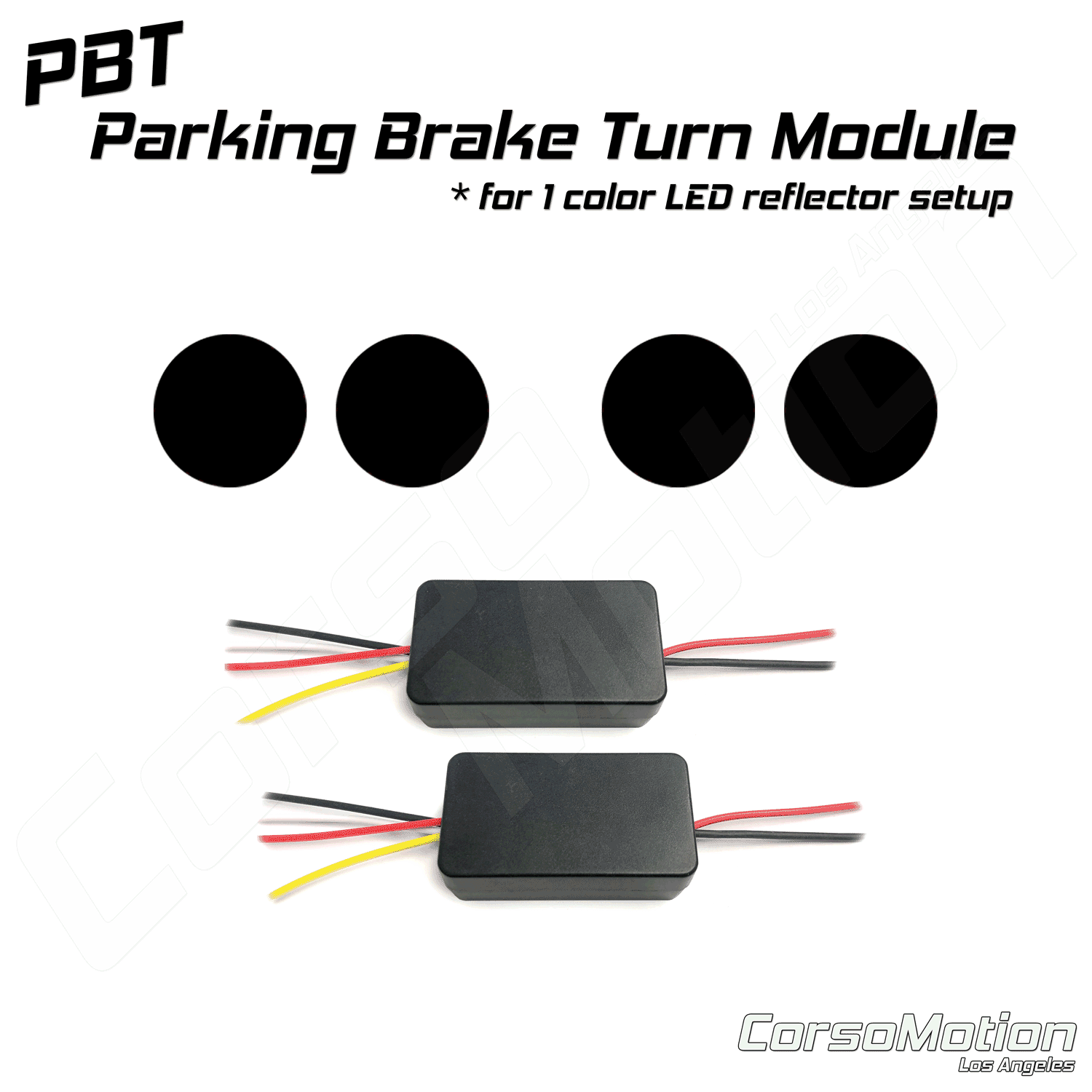

Parking light, Brake, Turn signal Control Module.

Input
Turn signal/Colour B (Yellow),
Parking/Dim/Colour A (White),
Brake/100%/Colour A (Red), Ground (Black)

Output
Red +, Black - GND

FEATURES

• 1 Colour LED setup control module.
• These PBT modules are Switchback Turn signal + LED dimmer modules, you can use this module for 1 color LED setup like LED reflectors with full LED control. Parking light, Brake, Turn signal together.
• 12V LED setup for general use or 5V CorsoMotion Reflectors ONLY
• 12V = You can use your LED reflectors (or other 1 color LED setup) with Turn signal + Brake + Parking lights functions together.
• 5V = Only for CorsoMotion brand 5V Current Control type LED reflectors.

SPECIFICATIONS

• Max Input: 2A

WARRANTY

• 1 Year Warranty

INCLUDED

• 2 x CorsoMotion PBT Modules
