BLUEGHOZT PLUS

BlueGhozt is a smartphone-controlled LED controller. It interfaces with iOS and Android devices via Bluetooth and is designed to work with WS2812b and SK6812 (Neoprism/Neopixel) RGB addressable LEDs.

Works with both 5V or 12V versions of addressable LEDs. It includes all of the basic capabilities from the original Ghozt modules plus more and is far easier to install!

BlueGhozt LITE and PLUS are identical in every way except that the LITE does not have 4 +12V power switches for controlling 12v accessories.

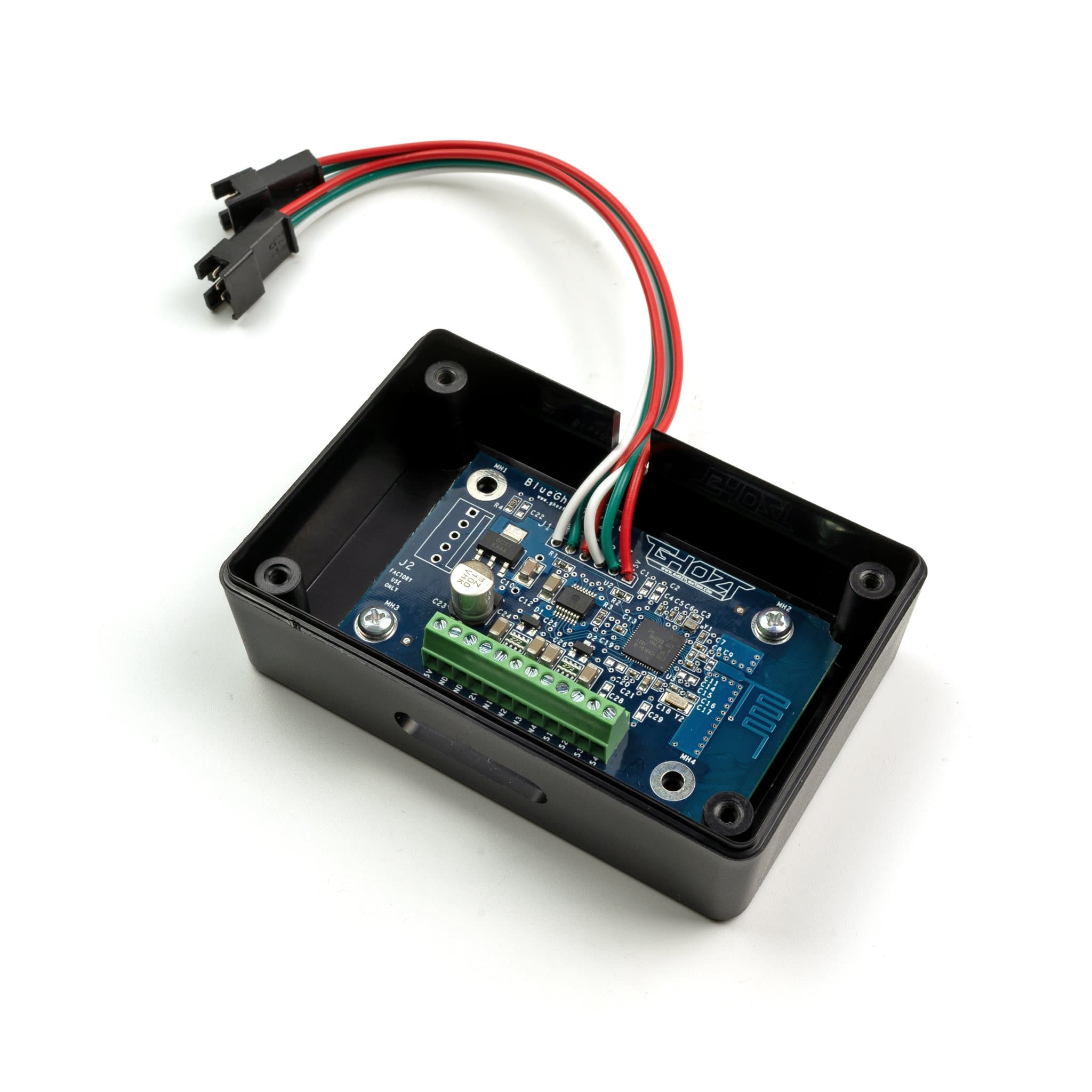

JST connectors are pre-soldered which plug and play with many off-the-shelf addressable RGB LED kits. Screw terminals are included on the board for solder-less connections to power and other inputs.

BlueGhozt Installation Guide
BlueGhozt App User Guide

FEATURES

• Four 12v inputs, for left turn, right turn, park, and brake
• Four 12v outputs for controlling 12v accessories (Plus only)
• Controls two chains of addressable LEDs up to 350 each! (260 for RGBW)
• Fully configurable through Bluetooth with our iOS/Android app!
• New features delivered over the air through our app updates!
• Sequential turn signals
• F1-style braking
• Parking/running lights
• Showmodes triggered via Bluetooth
• One module controls two turn signals!
• Unlimited fully customizeable showmodes can be saved with our app
• Adjustable turn signal timing to car’s flasher unit
• Very low power drain while in operation, sleep mode when idle
• Small form factor!
• Includes a protective plastic housing!

WARRANTY

• Lifetime Warranty

INCLUDED

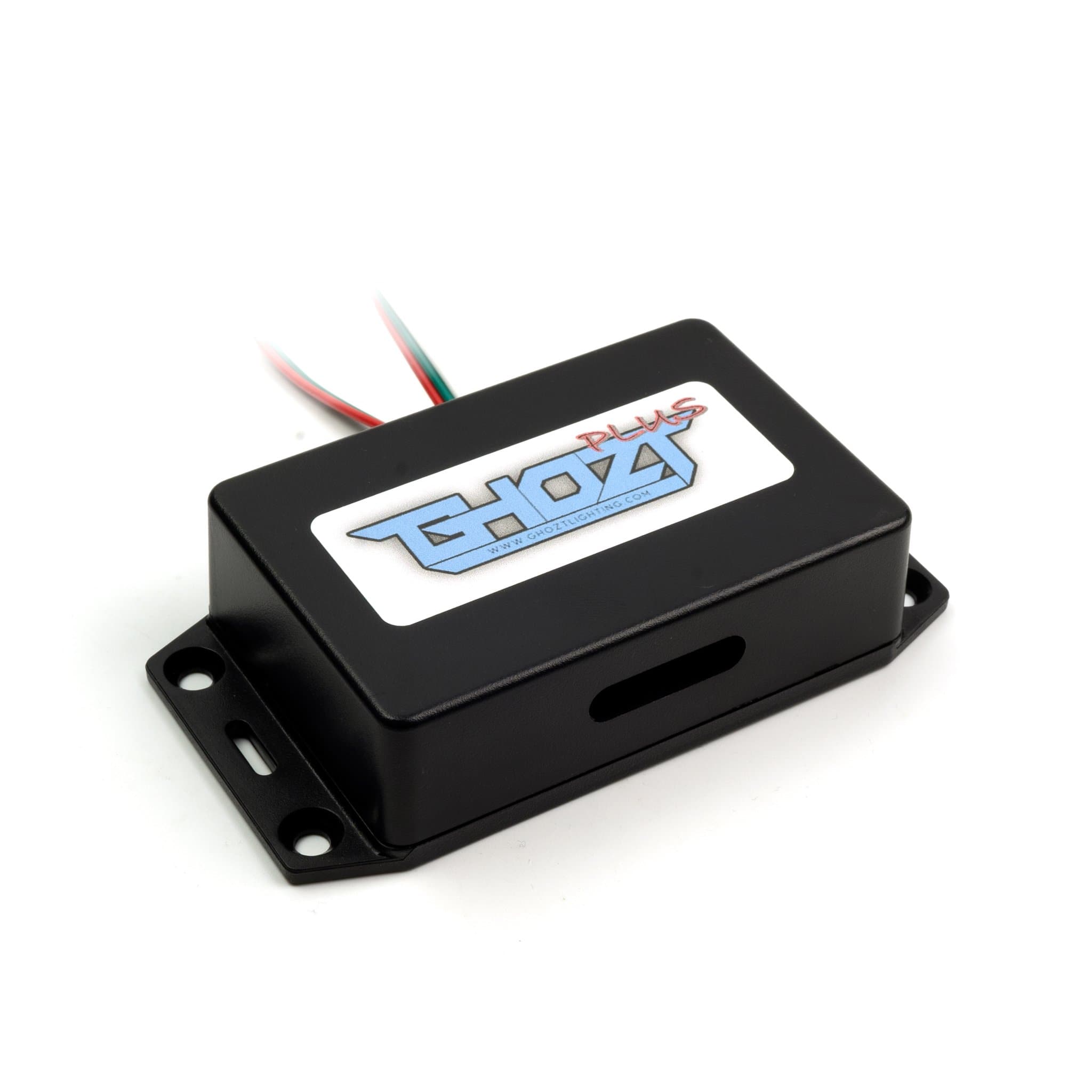

• 1 x BlueGhozt PLUS Smart LED Controller

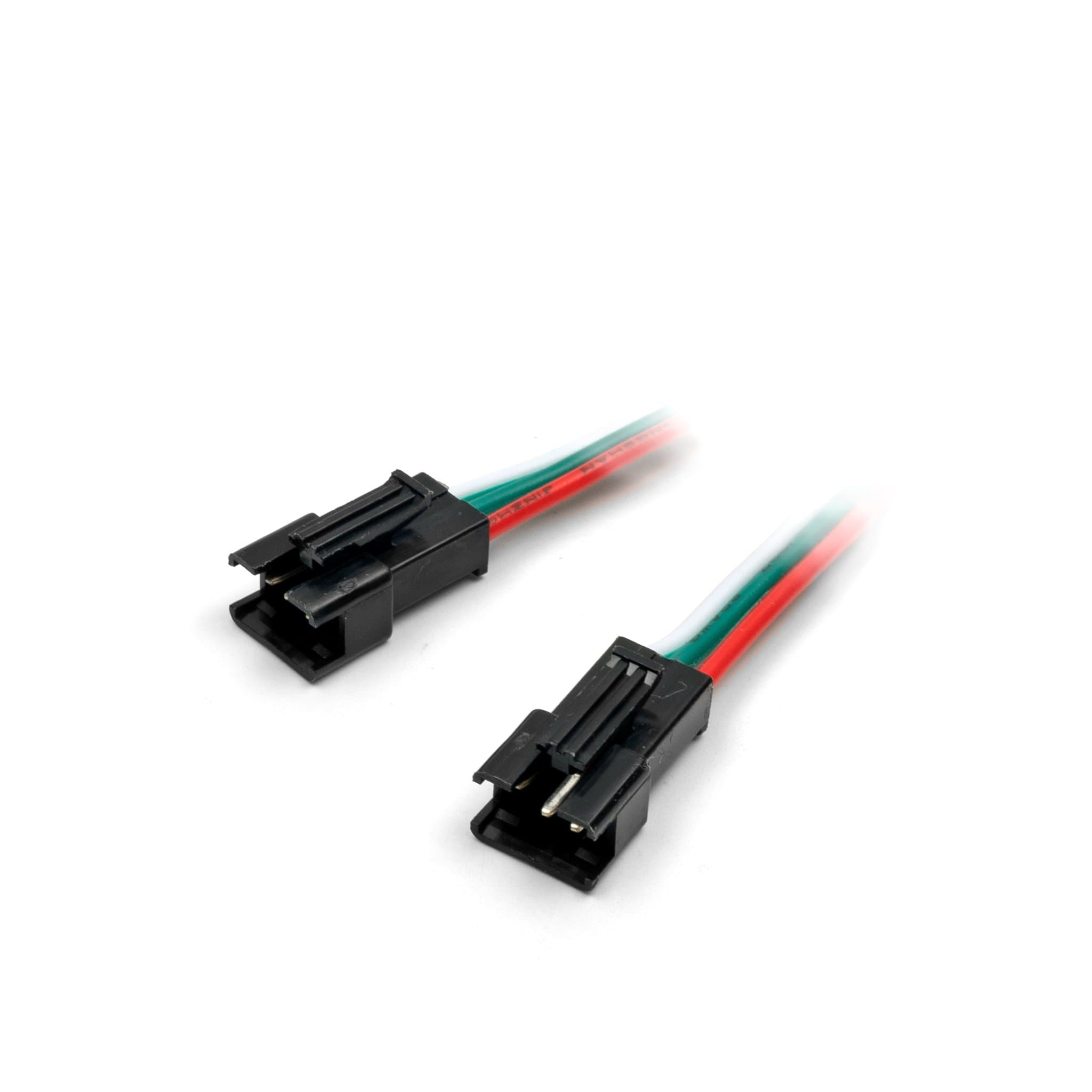

• 2 x 3 Pin JST Connectors (male)
• 12v Power Converter (OPTIONAL)
