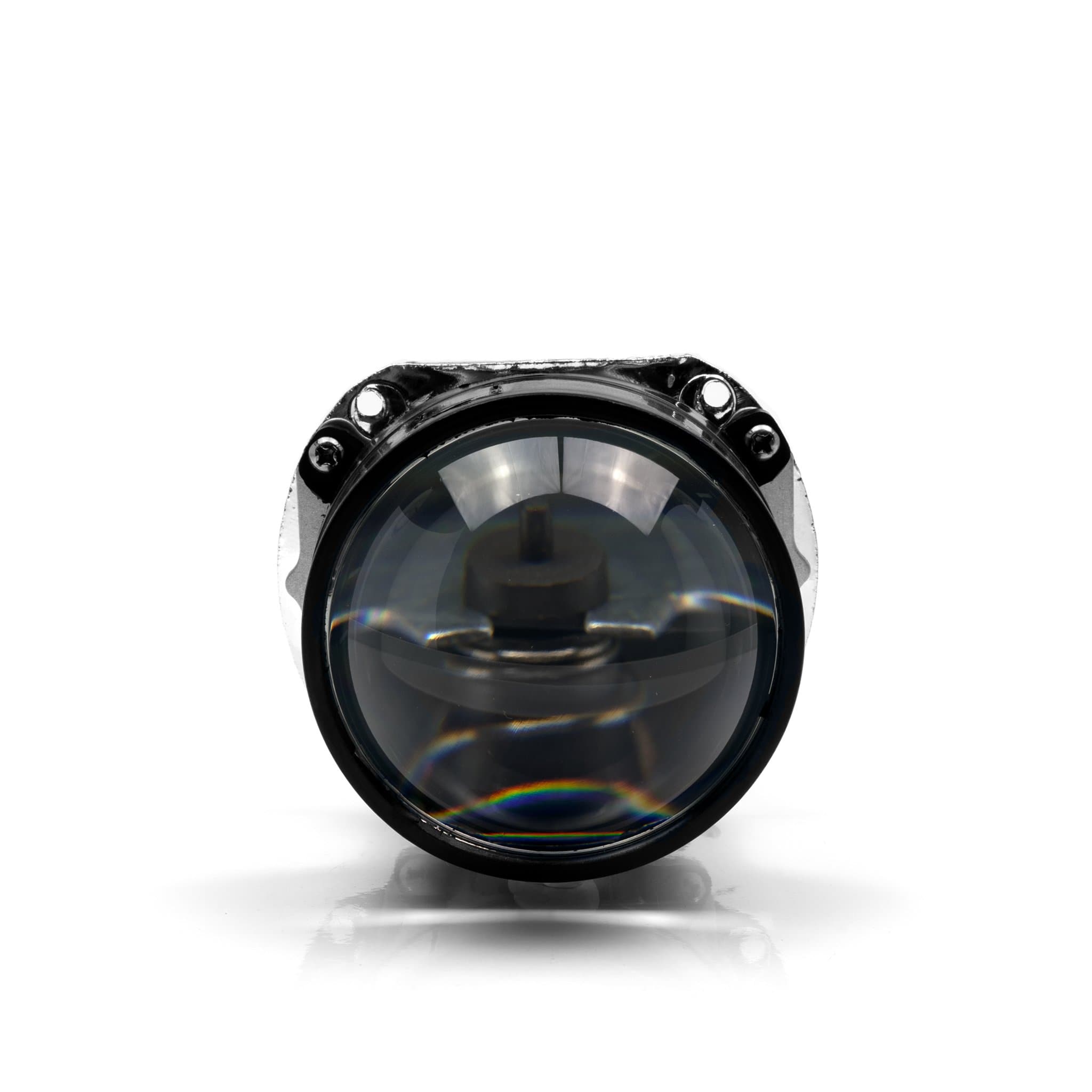

BI-XENON PROJECTORS : iiMH1

These mini bi-xenon projectors should not be underestimated; Small, but pack a big punch!

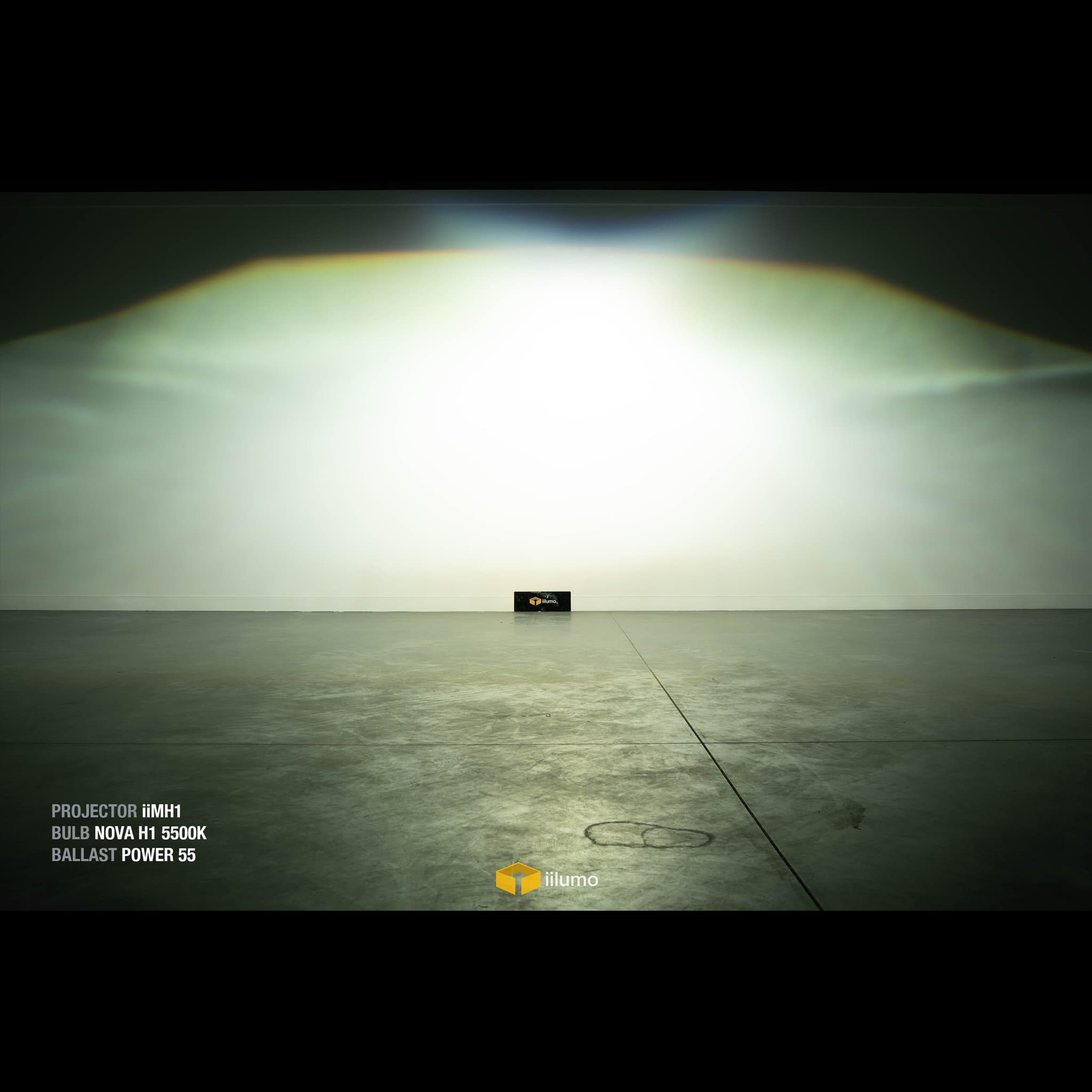

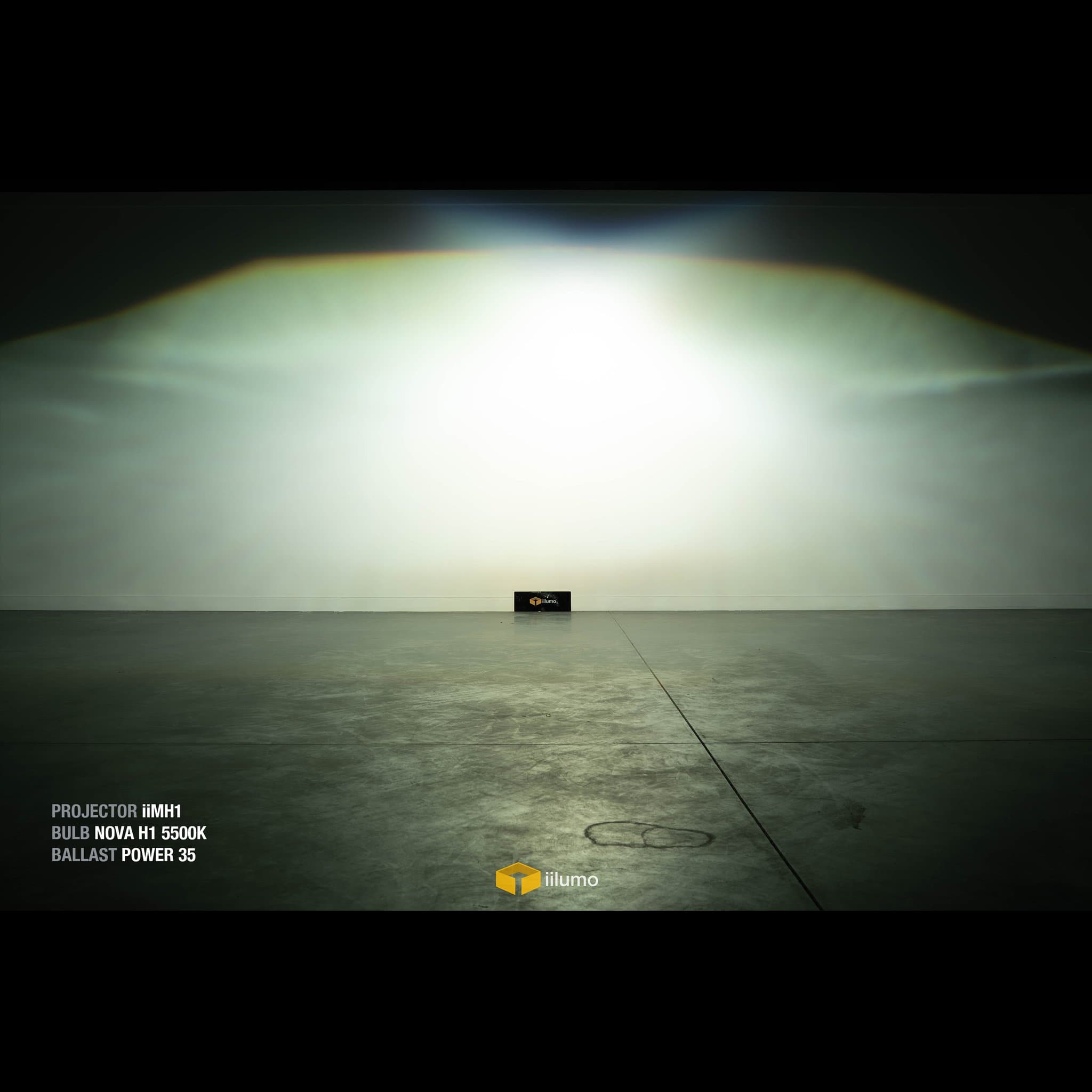

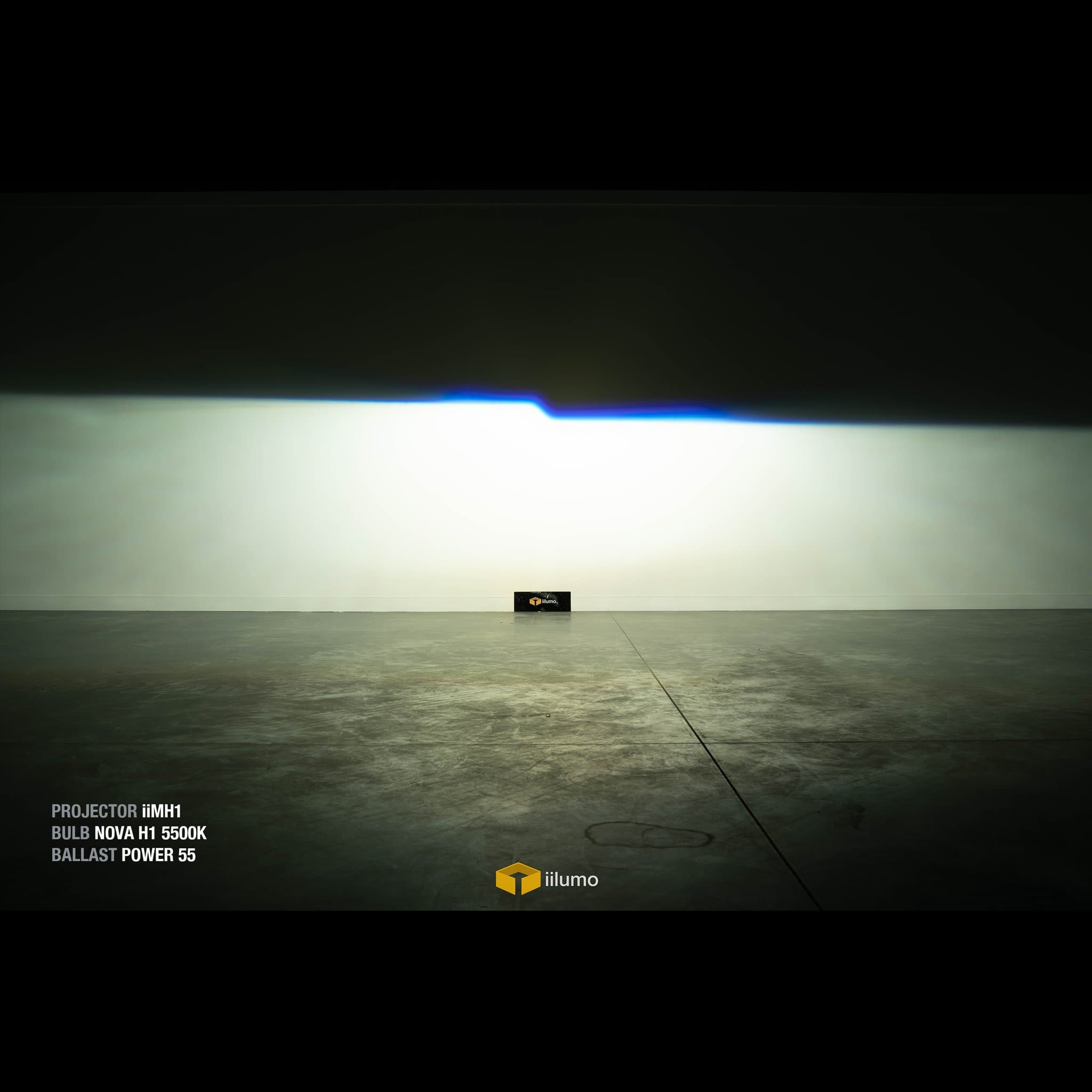

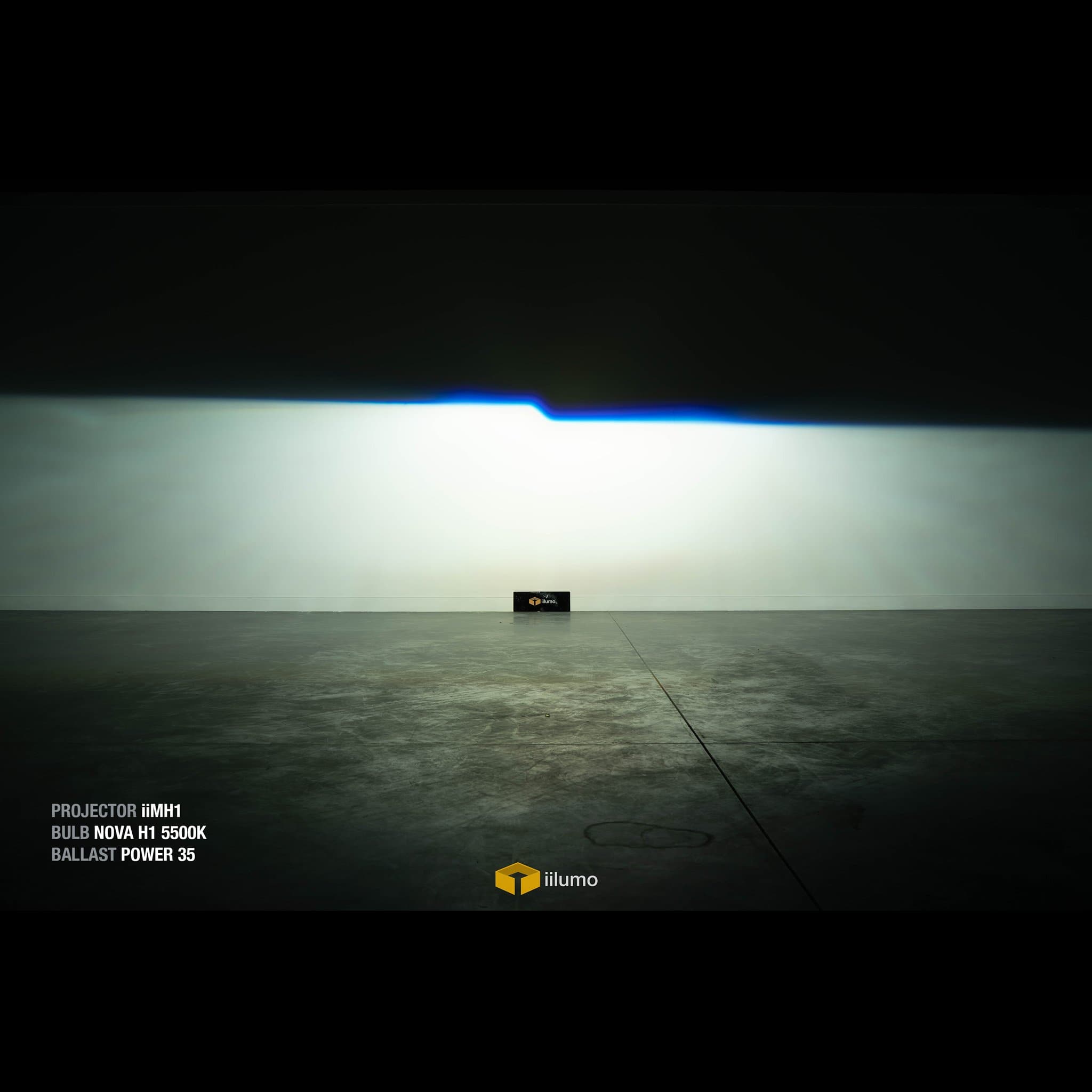

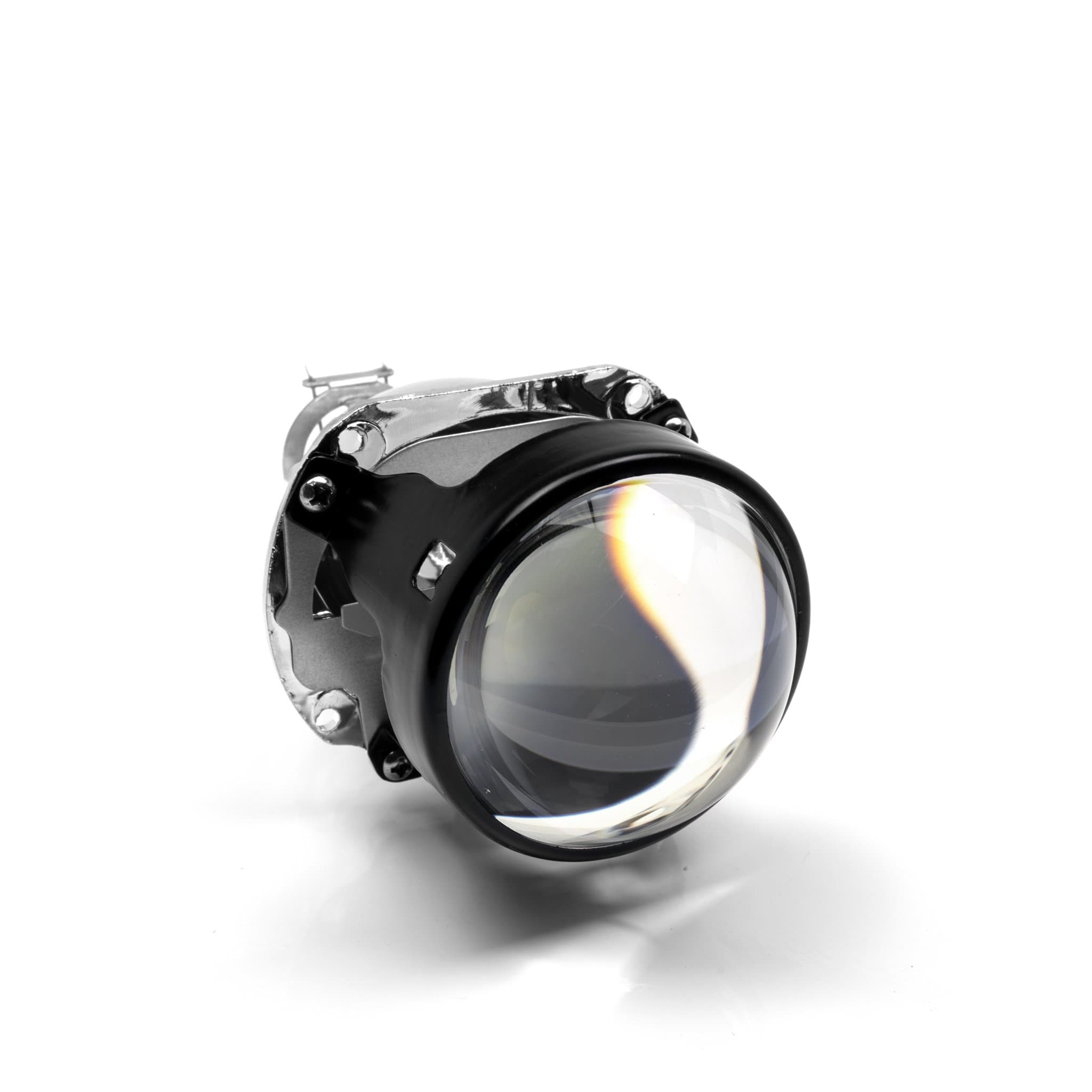

Equipped with clear lenses for a sharp cut-off and a focused light beam, they are a crowd favourite for builds that crave an impressive headlight upgrade with a smaller projector.

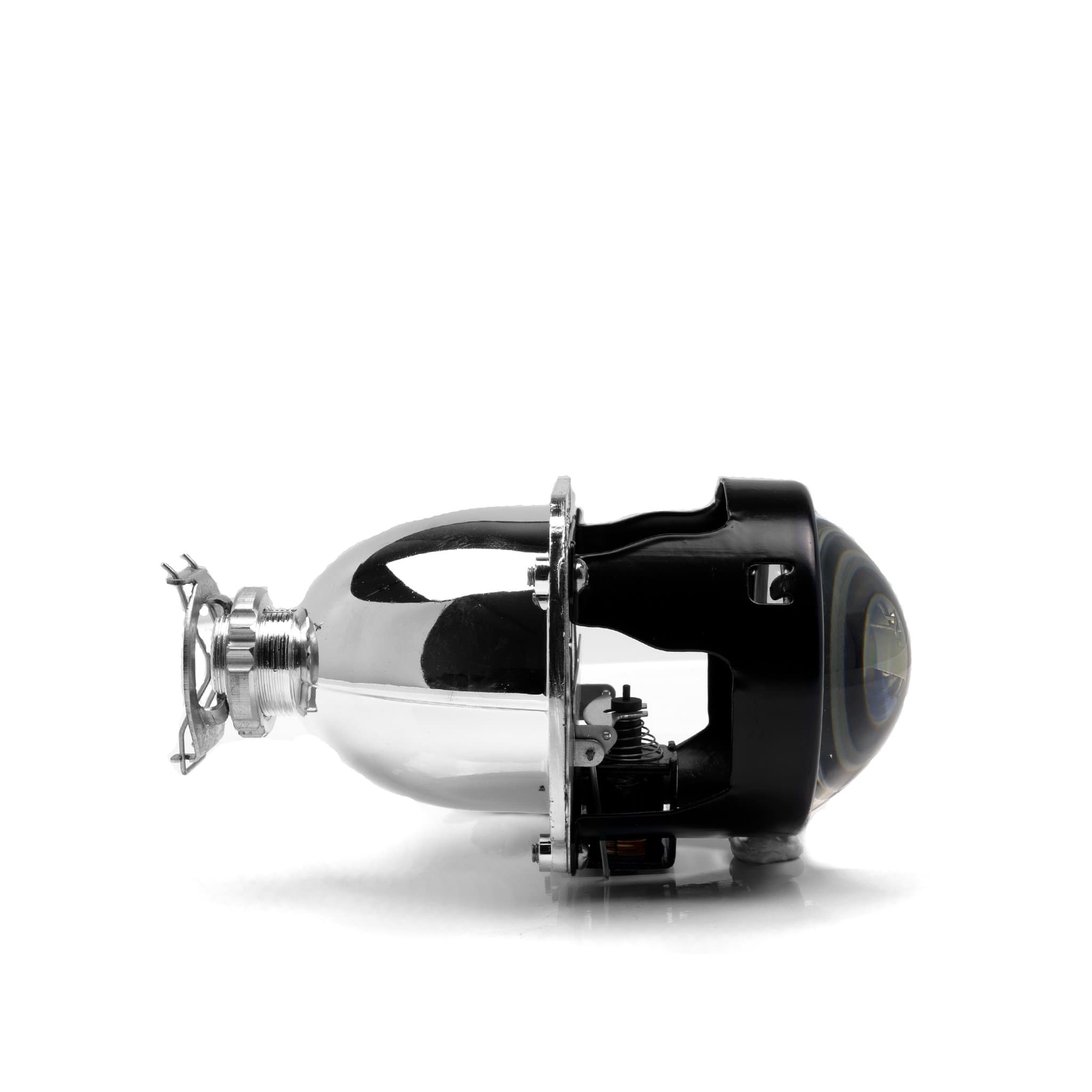

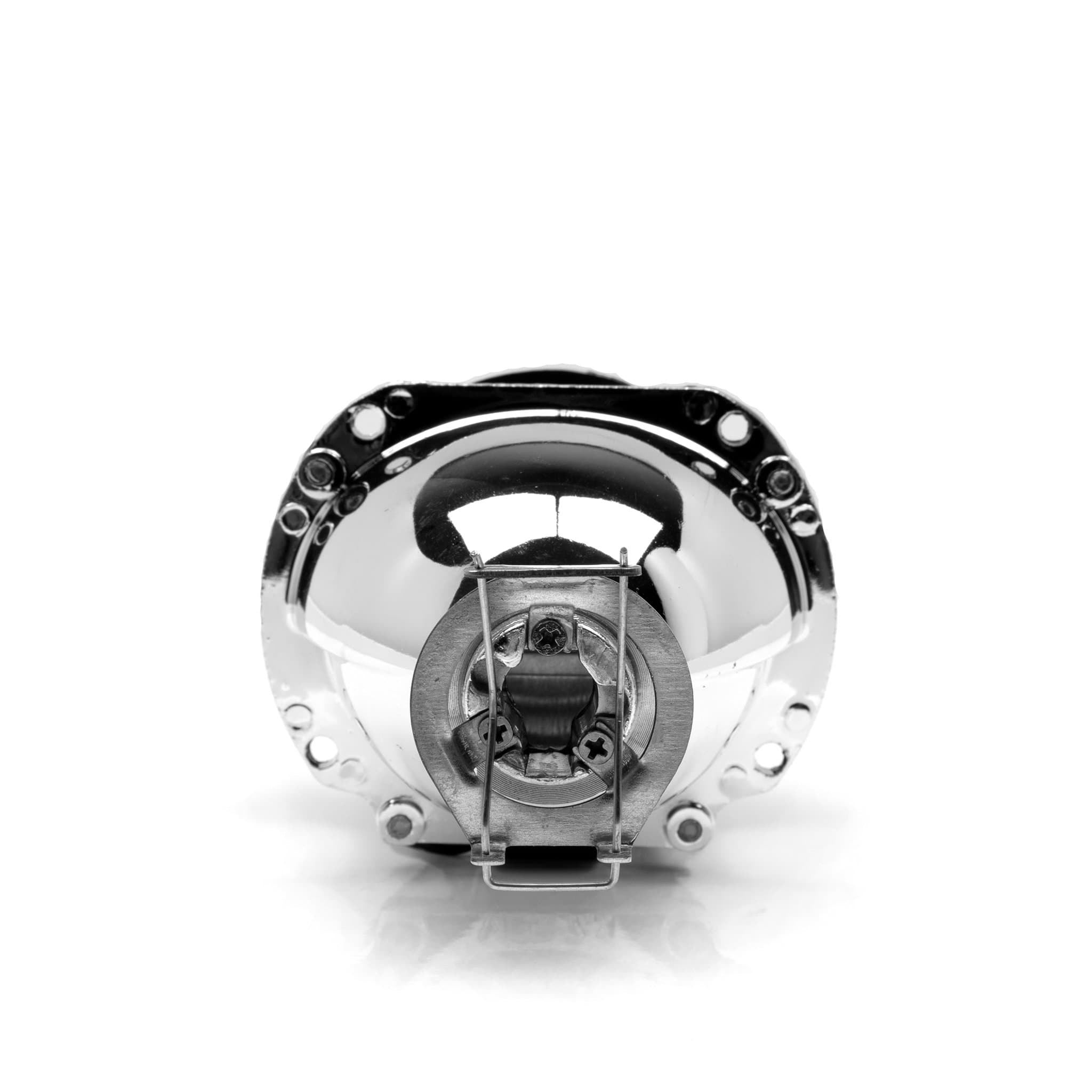

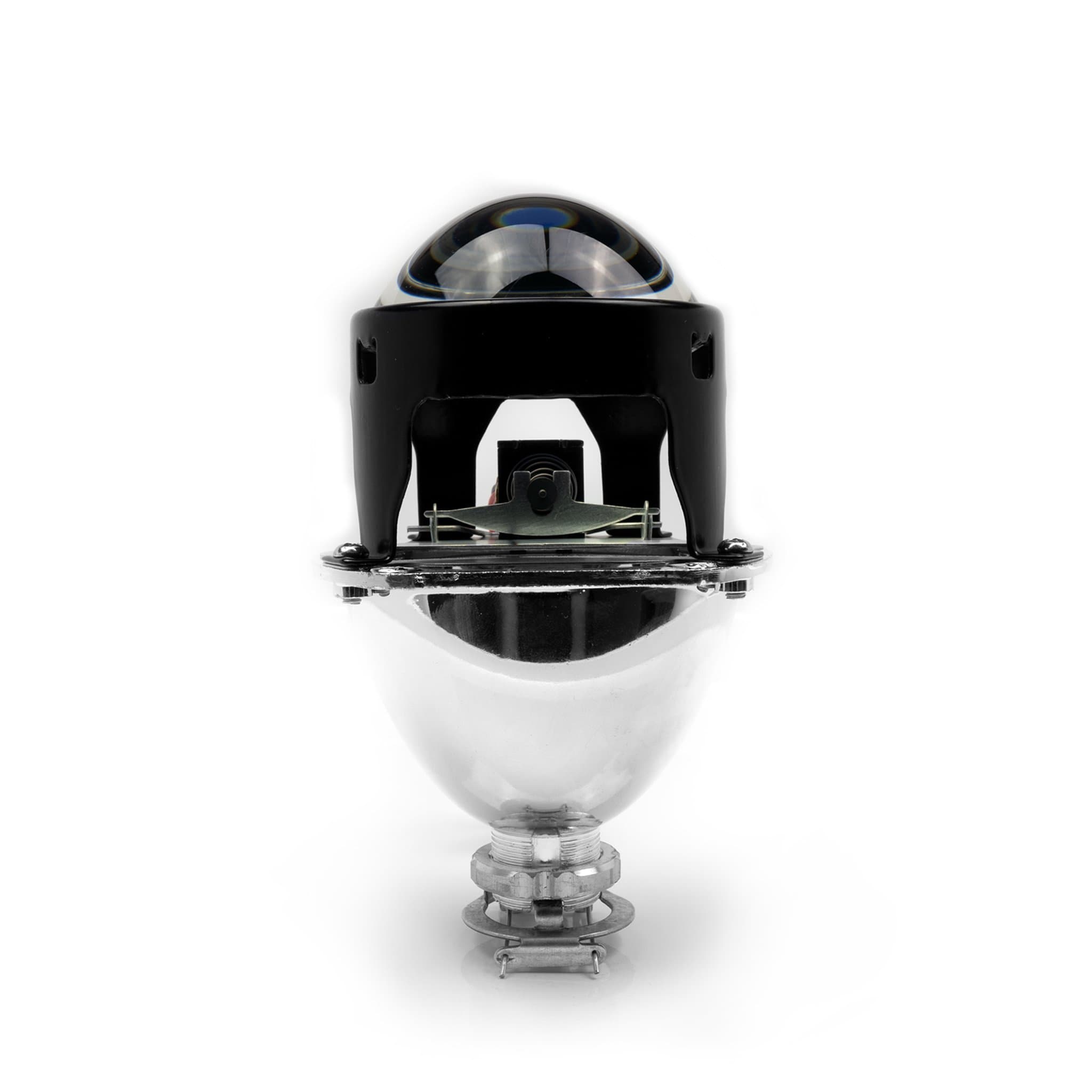

A smaller body with a threaded mounting shaft makes it super easy to install without cutting up the whole headlight housing for clearance.

SPECIFICATIONS

• Height: 75mm
• Length: 72mm
• Max Depth: 145mm
• Lens Diameter: 2.5"
• Mounting Shaft Diameter: 20mm
• Lock Nut Size: 28mm
• Housing Depth Minimum: 120mm
• Lens: 100% clarity clear glass lens
• RHD cut-off shield
• Not ADR approved

COMPATIBILITY

• Bulbs: H1 HID bulbs
• HID systems: 35-55W
• Shrouds: Mini Gatling/Graphite. Others will require shroud centric rings

WARRANTY

• 3 Year Warranty

INCLUDED

• 2 x iiMH1 bi-xenon HID projectors
• 2 x Hardware packs (Lock nuts, seals, H4 & H7 adapter plates)
