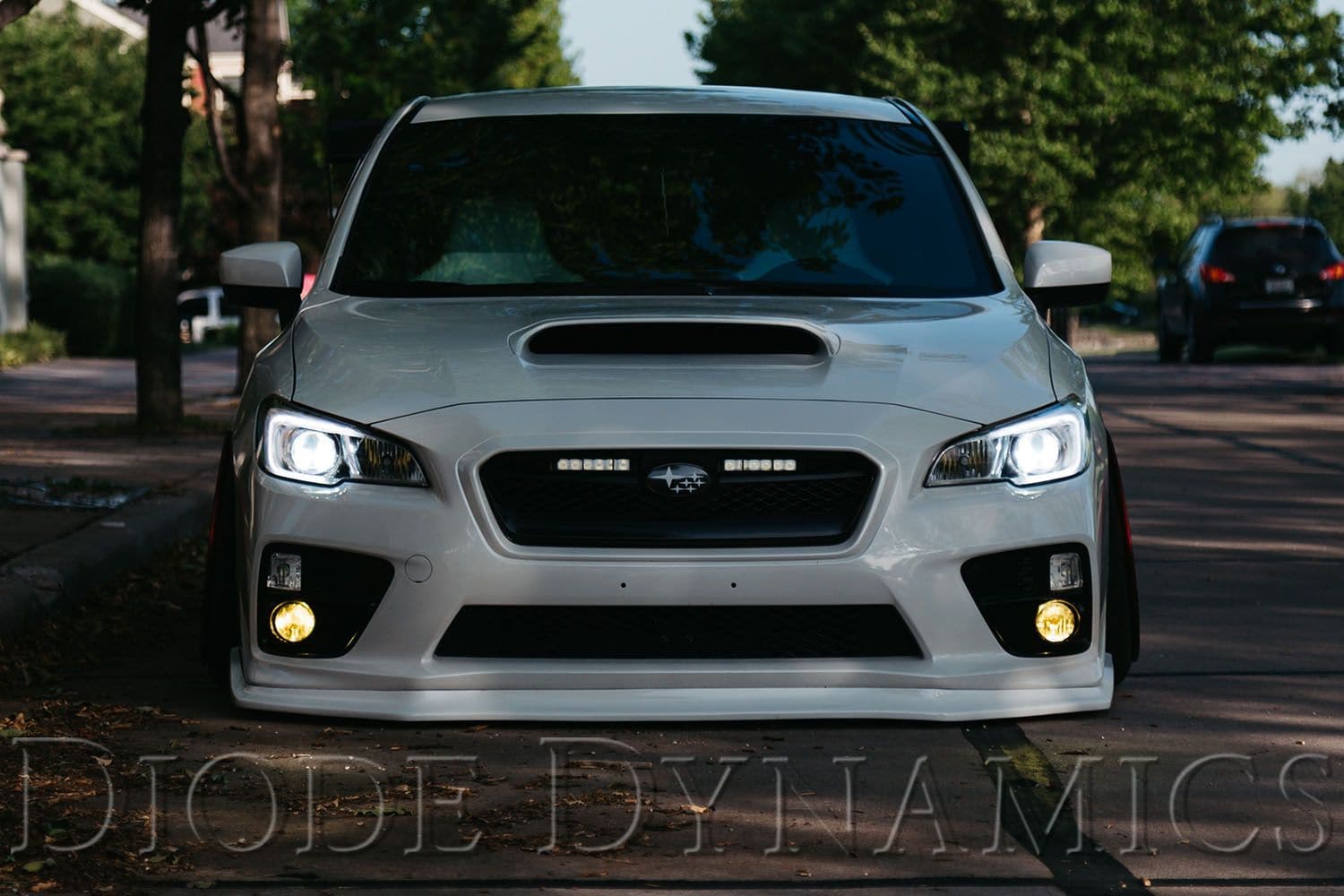

2015-2020 SUBARU WRX/STI C-LIGHT Switchback LED HALOS

Time for an upgrade! These C-Light LED modules are circuit boards that fit right behind the factory diffusing reflector, illuminating in an extremely bright white, as well as a brilliant amber. Don't be fooled by other options on the market: these LEDs have been designed from the ground-up for this application, and manufactured in St. Louis, Missouri, to be absolutely the brightest lights physically possible.

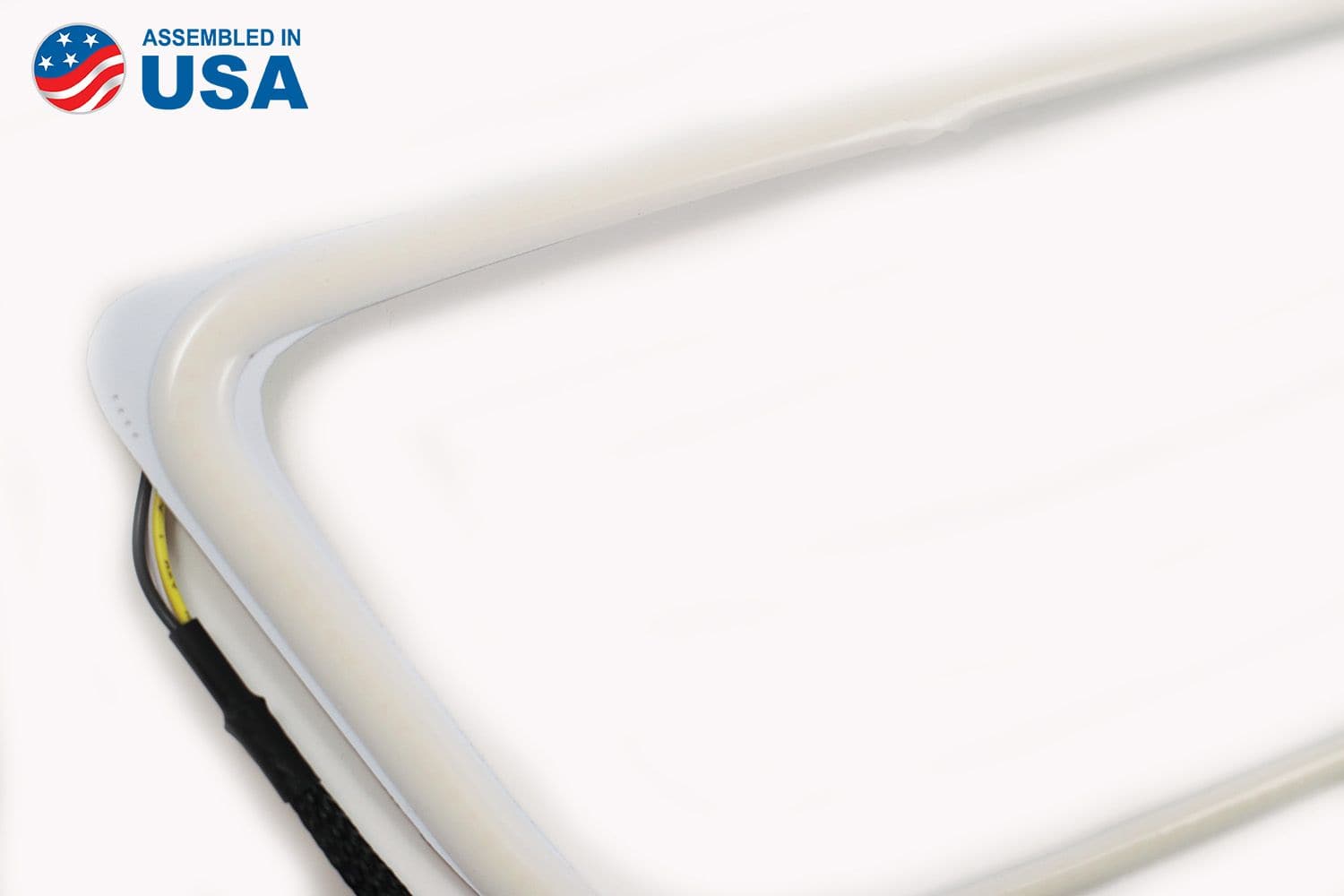

High output, clean appearance. The custom-designed LED modules replace the factory bulb or single LED, illuminating with a much higher intensity. With our proprietary high-density "HDLED" technology, these modules are populated with over 500 LED chips, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When it's off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

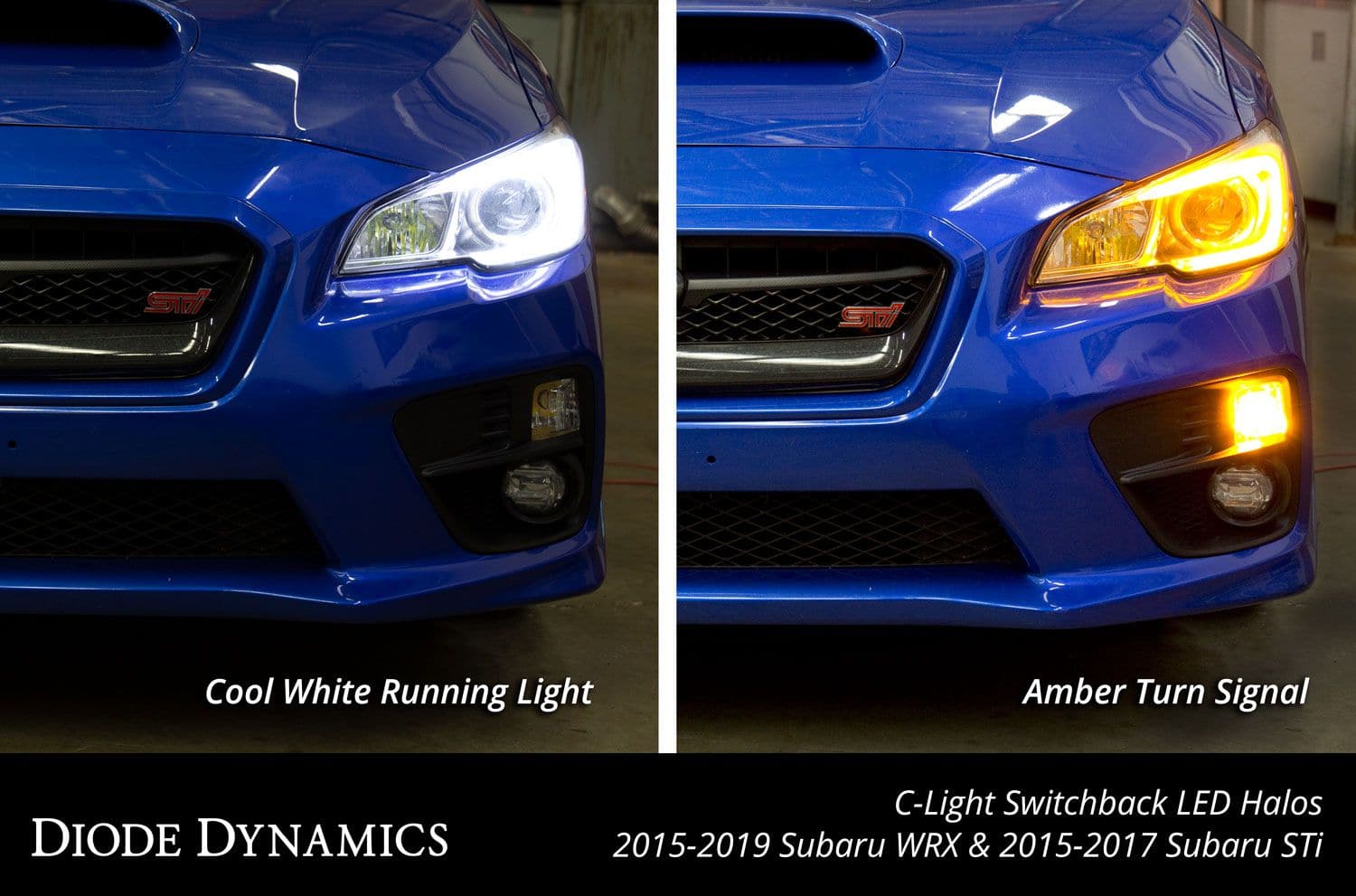

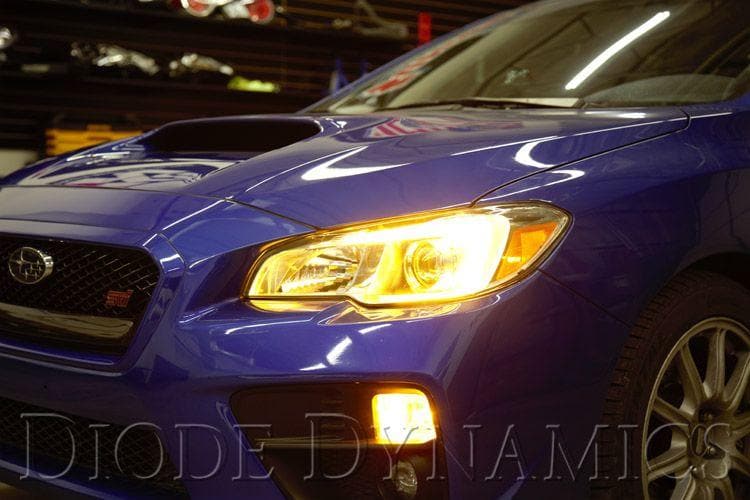

Pure white color. Assembled in USA, the modules light in a pure 6000K white color, not a cool blue like cheaper products on the market. And because they use modern high-power amber chips, rather than traditional LEDs, the amber is even brighter than the white!

Constant-current power. To power the modules efficiently, your order includes two custom-designed drivers, which feature transient voltage suppression, reverse protection, and a switching driver for extremely high reliability over time. And here's what really makes this product shine over the competition: with an embedded microcontroller, the drivers utilize multi-stage PWM dimming, to allow for a half-brightness white, for use at night (parking lights), as well as a full-power white, for use as DRL during the day. Finally, the amber is run at even higher power, making the turn signal easily visible in broad daylight!

Wire it up. Wiring instructions are included with your order. You will need to use the included T-tap connectors to connect the drivers to ground, parking signal, and turn signal on each side. Another wire is included for DRL connection. You can tap this into your DRLs to have the C-Light come on as a DRL alongside your factory DRL bulb. If you wish, you can add the DRL Harness to your order. Fully plug-and-play, this harness will disable your factory DRL, and power the C-Lights instead. Your high beam will still work as normal.

Professional installation is recommended for this product, as the headlights must be opened. However, these lamps are substantially easier than most to work with, so we do recommend watching the installation process yourself, by viewing our video.

FEATURES

• Computer-designed LED halos, for perfect fitment in WRX/STi headlamps

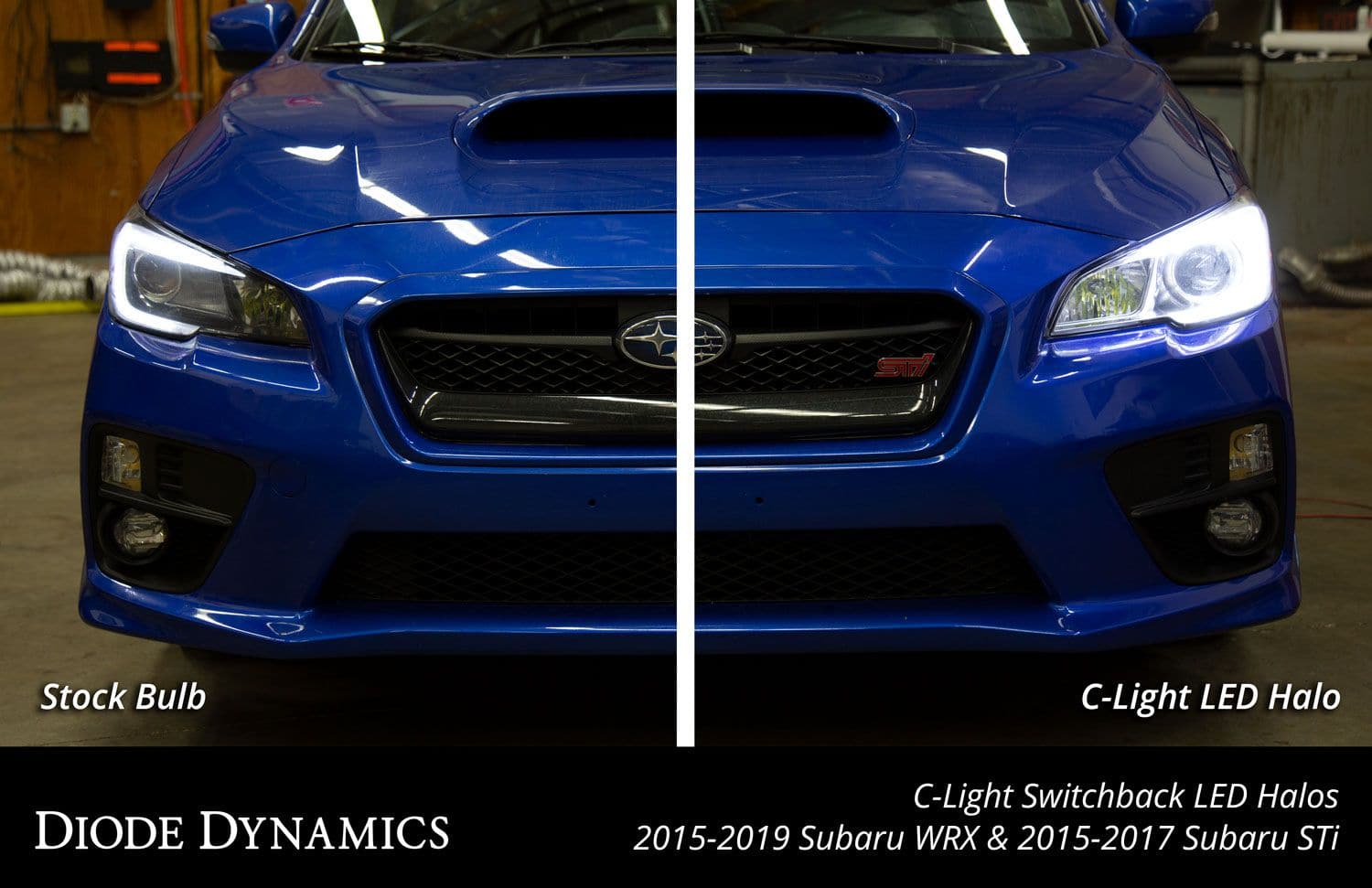

• Huge increase in brightness, with pure white and brilliant amber output
• Over 5000 sets installed, with proven reliability
• Optional DRL harness allows the LEDs to function just like factory DRL

COMPATIBILITY

• 2015-2017 WRX and STi (All Trims) -Compatible with our halos
• 2018-2021 WRX (Base, Premium, Limited)
• Base and Premium trim levels still use Projector Halogen Headlights - Compatible with our halos
• Limited Trim uses the new LED Projector Headlights - NOT COMPATIBLE WITH OUR HALOS
• 2018-2021 STi (Base, Premium, Limited, Type RA, S208) All use the new LED Projector Headlights -NOT COMPATIBLE WITH OUR HALOS

WARRANTY

• 3 Year Warranty
• External use will void warranty

INCLUDED

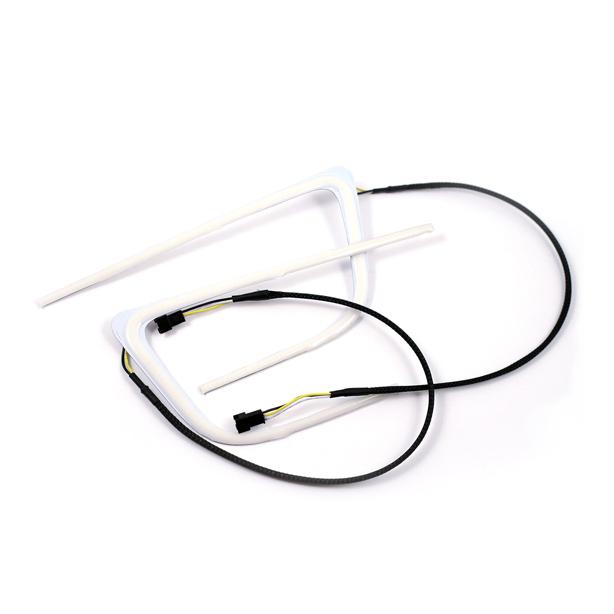

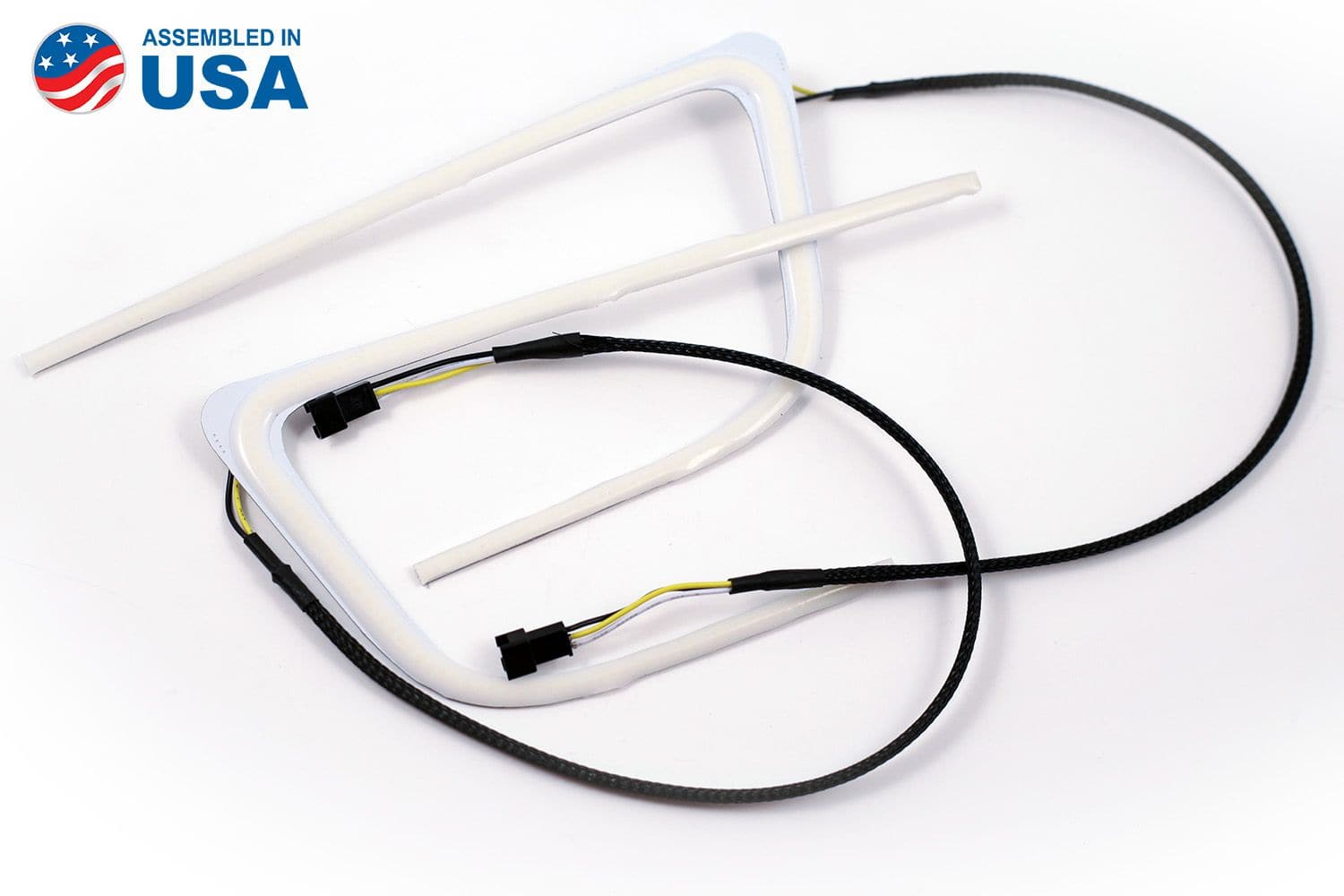

• Two (2) custom-shaped LED halos, left and right
• Two (2) waterproof driver units
• Two (2) input wire pigtails
• Eight (8) T-tap input connectors
• Installation Guide
